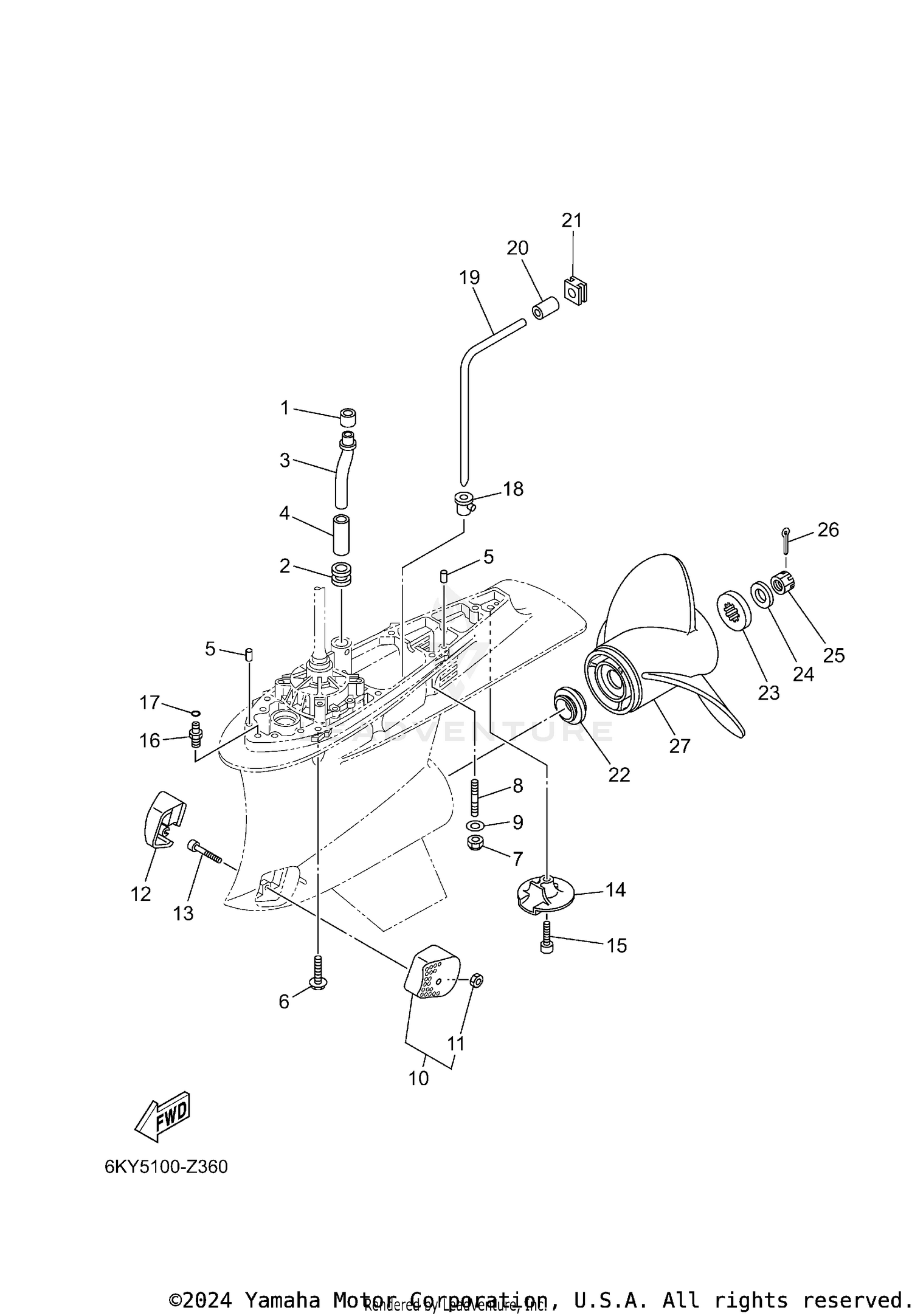

| Ref | Part Number | Description |
|---|
| 3 |
6CB-44361-00-00 |
TUBE, WATER 1 Price: $29.15 |
| 4 |
90445-23002-00 |
HOSE (L59) Price: $6.60 |
| 5 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 6 |
97E95-10545-00 |
BOLT, HEXAGON W/W DE Price: $2.05 |
| 7 |
95780-10300-00 |
NUT, FLANGE Price: $13.00 |
| 8 |
90116-10021-00 |
BOLT, STUD Price: $12.75 |
| 9 |
92990-10600-00 |
WASHER, PLATE This part replaces 92995-10600-00. Price: $3.00 |
| 10 |
6CB-45214-20-00 |
COVER, WATER INLET 1 Price: $14.20 |
| 11 |
90185-05904-00 |
NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 12 |
6CB-45215-20-00 |
COVER, WATER INLET 2 Price: $17.70 |
| 13 |
90110-05039-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.55 |
| 14 |
6AW-45619-00-00 |
CAP Price: $63.25 |
| 15 |
90110-10018-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.55 |
| 16 |
63P-45378-00-00 |
NIPPLE, HOSE Price: $6.75 |
| 17 |
93210-07540-00 |
O-RING This part replaces 93210-07003-00. Price: $7.49 |
| 18 |
6D0-44367-00-00 |
DAMPER, WATER SEAL 3 Price: $24.20 |
| 19 |
6CB-44362-00-00 |
TUBE, WATER 2 Price: $21.95 |
| 20 |
6D0-44365-00-00 |
DAMPER, WATER SEAL 1 Price: $5.95 |
| 21 |
6D0-44366-01-00 |
DAMPER, WATER SEAL 2 Price: $5.65 |
| 22 |
6KW-45987-00-00 |
VMAX T3 SPACER1 Price: $126.10 |
| 23 |
688-45997-01-00 |
SPACER 2 Price: $47.75 |
| 24 |
92990-18200-00 |
WASHER 1 Price: $2.55 |
| 25 |
90171-18M04-00 |
NUT, CASTLE Price: $20.20 |
| 26 |
91490-40030-00 |
PIN. COTTER Price: $4.50 |
