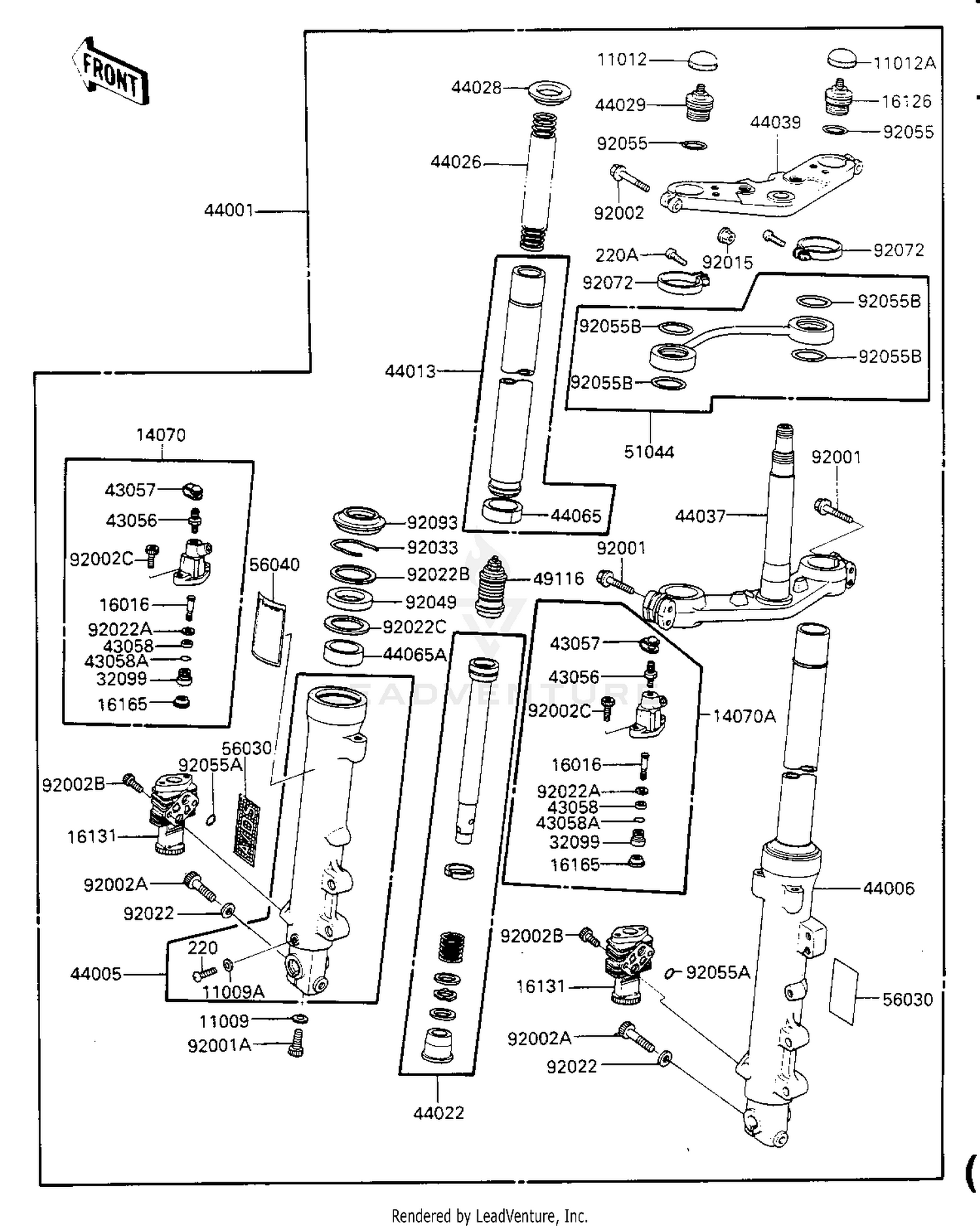

| Ref | Part Number | Description |
|---|
| 220 |
220E0408 |
SCREW-PAN-CROS Price: $3.30 |
| 11009 |
11009-1127 |
GASKET,FORK CYLINDER BOLT Price: $5.18 |
| 11009A |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 11012 |
11012-1500 |
CAP,FORK TOP Price: $13.57 |
| 11012A |
11012-1501 |
CAP,FORK TOP Price: $12.95 |
| 14070 |
14070-1070 |
BODY-BREATHER,ANTI-DI Price: $276.45 |
| 14070A |
14070-1071 |
BODY-BREATHER,ANTI-DI This part replaces 14070-1060. Price: $276.45 |
| 16016 |
16016-1067 |
PLUNGER,ANTI-DIVE Price: $40.94 |
| 16126 |
16126-1150 |
VALVE Price: $46.65 |
| 16131 |
16131-1061 |
BODY-VALVE,FORK,ANTI- Price: $214.00 |
| 16165 |
16165-1051 |
SEPARATOR Price: $9.91 |
| 32099 |
32099-1067 |
CASE Price: $50.34 |
| 43056 |
43085-001 |
BLEEDER SET This part replaces 43056-003. Price: $24.57 |
| 43057 |
43057-003 |
CAP-BREATHER Price: $2.45 |
| 43058 |
43058-1052 |
RING Price: $7.72 |
| 43058A |
43058-1053 |
RING Price: $5.43 |
| 44001 |
44001-1628 |
FORK-FRONT Price: $2,197.53 |
| 44005 |
44005-1228 |
PIPE-LEFT FORK OUTER Price: $424.61 |
| 44006 |
44006-1228 |
PIPE-RIGHT FORK OUTER Price: $424.61 |
| 44013 |
44013-1239 |
PIPE-FORK INNER Price: $453.47 |
| 44022 |
44022-1188 |
CYLINDER-FORK Price: $135.62 |
| 44026 |
44026-1317 |
SPRING-FRONT FORK,K=0 Price: $81.98 |
| 44028 |
44028-1004 |
GUIDE,FORK SPRING Price: $11.28 |
| 44029 |
44029-1122 |
SEAT-FORK SPRING Price: $58.13 |
| 44037 |
44037-1201 |
HOLDER-FORK UNDER This part replaces 44037-1185. Price: $598.03 |
| 44039 |
44039-1125 |
HOLDER-FORK UPPER Price: $274.96 |
| 44065 |
44065-1076 |
BUSHING-FRONT FORK,IN Price: $22.33 |
| 44065A |
44065-1077 |
BUSHING-FRONT FORK Price: $22.33 |
| 49116 |
49116-1062 |
VALVE-ASSY,FORK Price: $78.37 |
| 51044 |
51044-1073 |
TUBE-ASSY,AIR,FORK Price: $113.95 |
| 56030 |
56030-1057 |
LABEL,AVDS MARK Price: $5.43 |
| 56040 |
56040-1117 |
LABEL-WARNING,SHOCKAB Price: $5.06 |
| 92001 |
92001-1188 |
BOLT,FLANGED,8X40 Price: $8.63 |
| 92001A |
92001-1309 |
BOLT,FORK CYLINDER Price: $7.62 |
| 92002 |
92002-1158 |
BOLT,FLANGED,8X55 Price: $9.23 |
| 92002A |
92002-1316 |
BOLT,SOCKET,8X38 Price: $4.75 |
| 92002B |
92002-1564 |
BOLT Price: $9.81 |
| 92002C |
92002-1565 |
BOLT Price: $9.47 |
| 92015 |
92210-0004 |
NUT,FLANGED,8MM This part replaces 92015-1408. Price: $5.38 |
| 92022 |
92022-1598 |
WASHER Price: $8.05 |
| 92022A |
92022-1636 |
WASHER Price: $4.75 |
| 92022B |
92022-1774 |
WASHER,FORK OUTER PIP Price: $8.52 |
| 92022C |
92022-1775 |
WASHER,FORK OUTER PIP Price: $8.52 |
| 92033 |
92033-1036 |
RING-SNAP Price: $6.51 |
| 92049 |
92049-1251 |
SEAL-OIL,FORK Price: $38.62 |
| 92055A |
670B2012 |
O RING,12MM This part replaces 92055-1201. Price: $3.23 |
| 92055B |
92055-1333 |
RING-O,FORK,AIR TUBE This part replaces 92055-1102. Price: $6.00 |
| 92072 |
92072-1157 |
BAND Price: $9.03 |
| 92093 |
92093-1210 |
SEAL,FORK Price: $34.95 |
