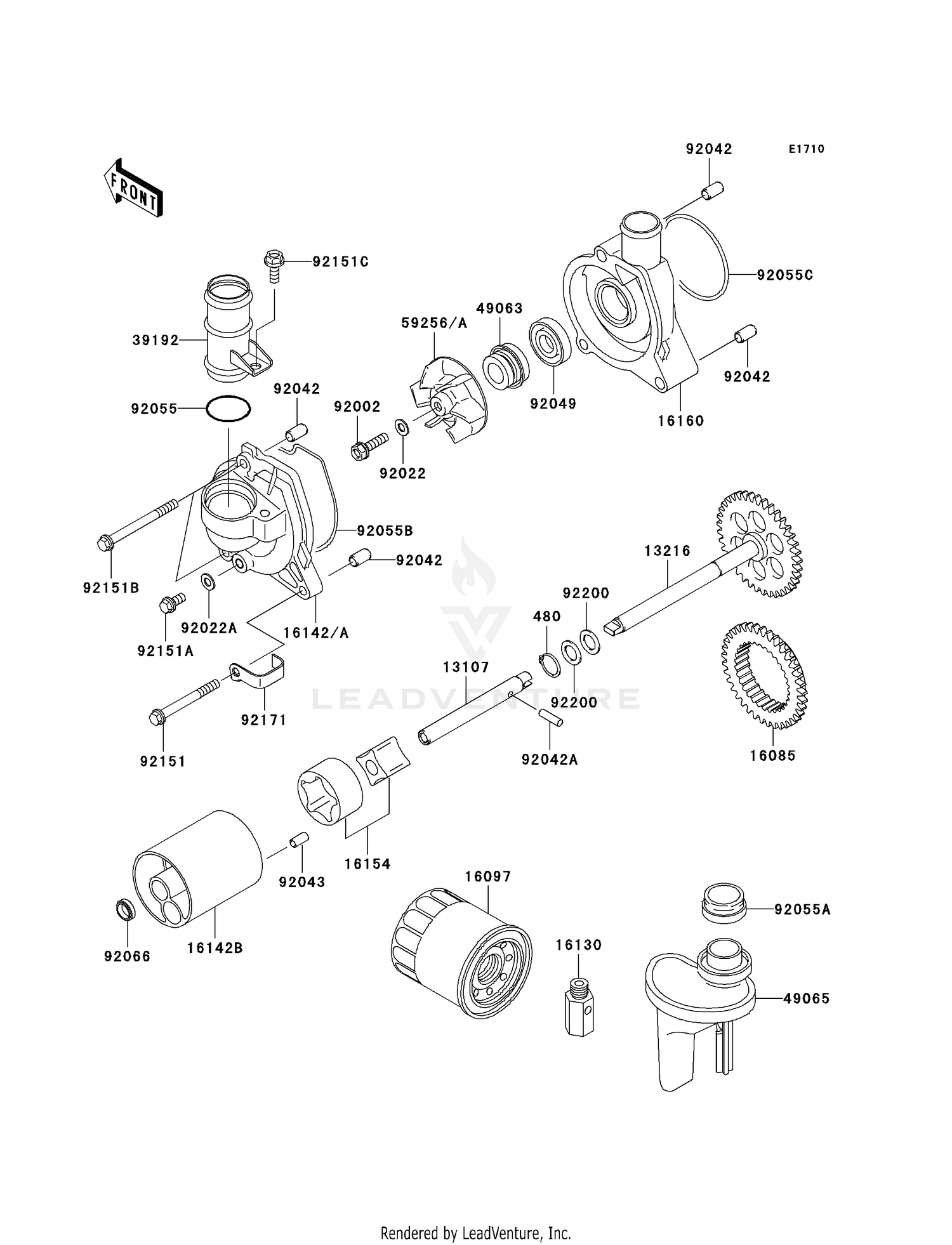

| Ref | Part Number | Description |
|---|
| 480 |
480J1100 |
CIRCLIP-TYPE-C,11MM Price: $1.24 |
| 13107 |
13107-1419 |
SHAFT,PUMP,LH Price: $37.32 |
| 13216 |
13216-1183 |
GEAR-COMP,PUMP,RH Price: $131.06 |
| 16085 |
16085-1326 |
GEAR Price: $128.52 |
| 16097 |
16097-0008 |
FILTER-ASSY-OIL This part replaces 16097-0002. Price: $14.50 |
| 16130 |
16130-1058 |
VALVE-ASSY-RELIEF Price: $41.98 |
| 16142 |
16142-0016 |
COVER-PUMP,WATER Price: $139.89 |
| 16142B |
16142-1168 |
COVER-PUMP,OIL Price: $79.46 |
| 16154 |
16154-1133 |
ROTOR-PUMP Price: $83.61 |
| 16160 |
16160-1324 |
BODY,WATER PUMP Price: $131.06 |
| 39192 |
39192-1128 |
PIPE-WATER Price: $38.16 |
| 49063 |
49063-1055 |
SEAL-MECHANICAL Price: $20.06 |
| 49065 |
49065-1084 |
FILTER-OIL Price: $34.34 |
| 59256 |
59256-0001 |
IMPELLER Price: $46.95 |
| 92002 |
92002-1154 |
BOLT,6X22 Price: $4.69 |
| 92022 |
92022-077 |
WASHER,6.1X12X1 Price: $3.99 |
| 92022A |
92022-304 |
WASHER,6.2X11X1 Price: $3.65 |
| 92042 |
92042-007 |
PIN,DOWEL,6.3X8X14 Price: $5.70 |
| 92042A |
92042-014 |
PIN,DOWEL,4X15.8 Price: $0.43 |
| 92043 |
92043-1262 |
PIN,4.2X6X12 Price: $4.31 |
| 92049 |
92049-0778 |
SEAL-OIL This part replaces 92049-1336. Price: $28.98 |
| 92055 |
92055-1328 |
RING-O,27.6X3.2 Price: $7.62 |
| 92055A |
92055-1503 |
RING-O,OIL FILTER Price: $9.51 |
| 92055B |
92055-1602 |
RING-O,WATER PUMP COV Price: $11.75 |
| 92055C |
92055-3018 |
RING-O,59.6X2.4 Price: $6.22 |
| 92066 |
92066-1537 |
PLUG Price: $15.02 |
| 92151 |
92151-1132 |
BOLT,6X55 Price: $4.87 |
| 92151A |
132BC0612 |
BOLT-FLANGED-SMALL,6X12 This part replaces 92151-1133. Price: $2.15 |
| 92151B |
92151-1199 |
BOLT,6X65 Price: $4.87 |
| 92151C |
130CC0616 |
BOLT-FLANGED,6X16 This part replaces 92151-1774. Price: $1.94 |
| 92171 |
92171-1179 |
CLAMP Price: $10.28 |
