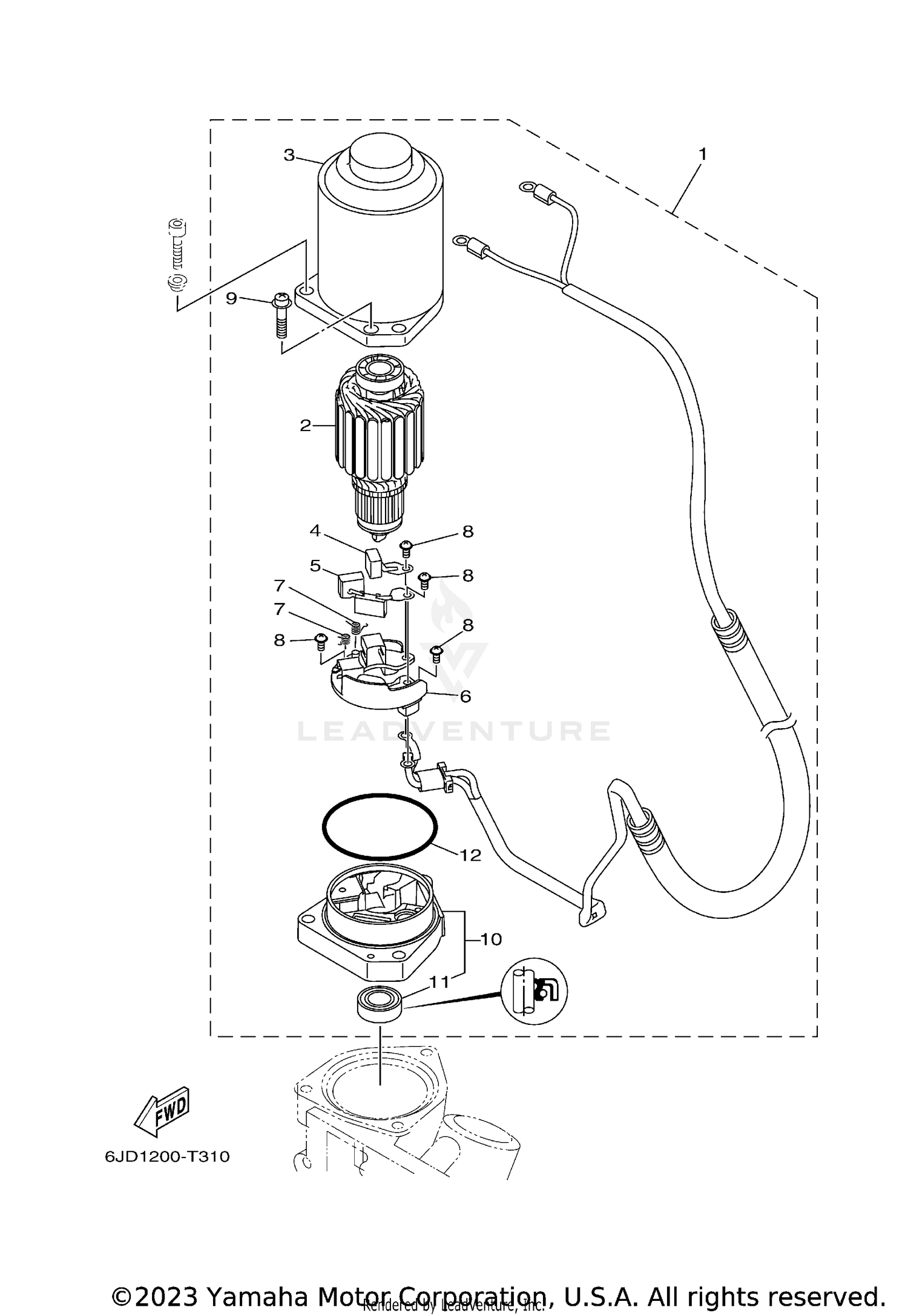

POWER TRIM TILT ASSY 2
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99999-04621-00 | MOTOR ASSY This part replaces 69J-43880-10-00. Price: $979.35 |
| 2 | 6GR-43805-00-00 | ARMATURE ASSY Price: $602.30 |
| 3 | 6GR-43804-00-00 | STATOR ASSY Price: $442.60 |
| 4 | 6GR-43892-00-00 | BRUSH 2 Price: $36.00 |
| 5 | 6GR-82181-00-00 | CIRCUIT BREAKER COMP Price: $198.85 |
| 6 | 6GR-4380F-00-00 | PLATE, BRUSH HOLDER Price: $125.70 |
| 7 | 6GR-4386K-00-00 | SPRING, BRUSH Price: $63.60 |
| 8 | 98507-04010-00 | SCREW, PAN HEAD This part replaces 97602-04310-00. Price: $3.55 |
| 9 | 67C-43879-10-00 | SCREW, WITH WASHER Price: $4.20 |
| 10 | 69J-43881-10-00 | FRAME, END Price: $612.10 |
