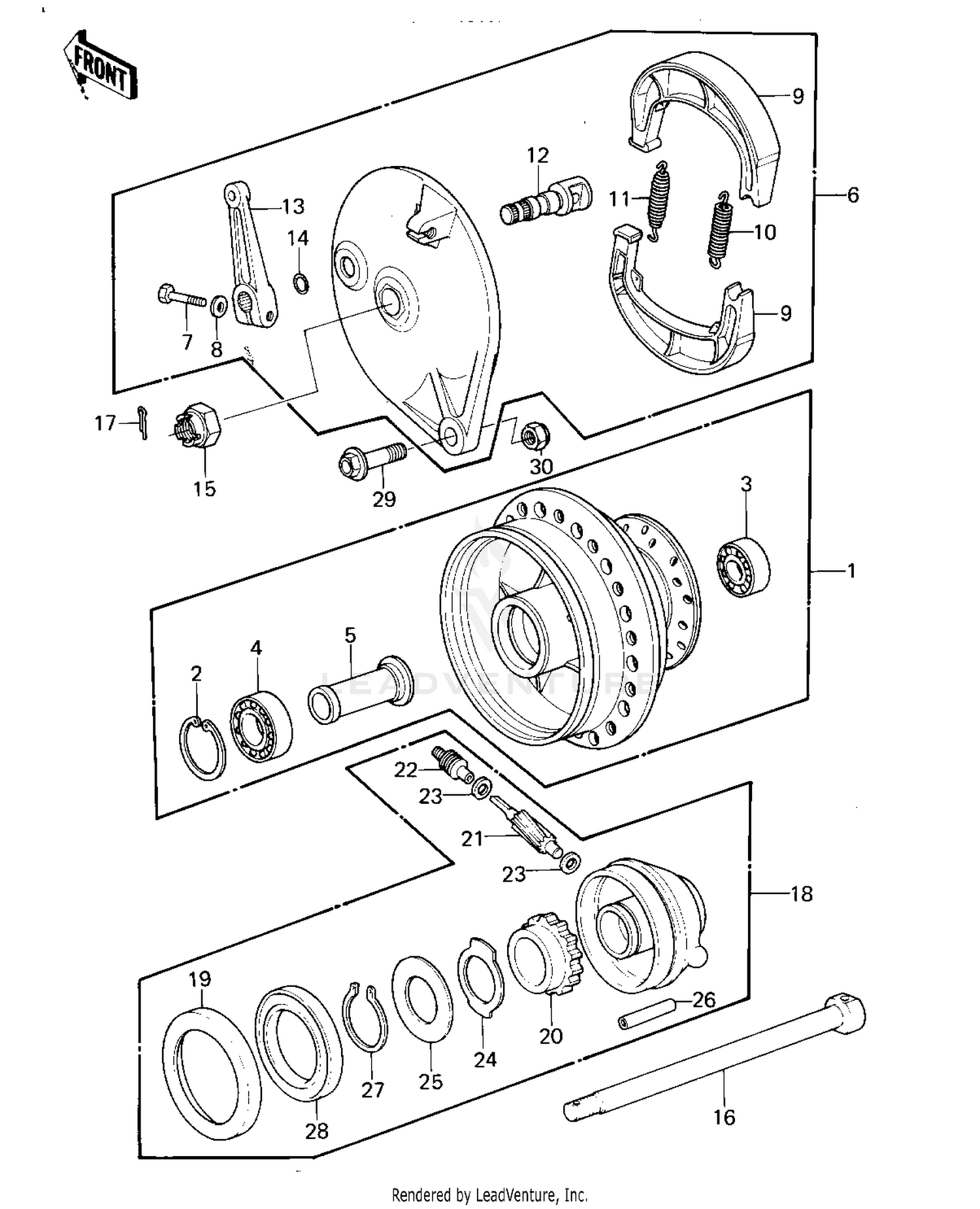

| Ref | Part Number | Description |
|---|
| 1 |
41034-1016 |
DRUM-ASSY,FR BRK Price: $405.04 |
| 2 |
481J3700 |
CIRCLIP-TYPE-C,37MM Price: $3.04 |
| 3 |
601B6201U |
BEARING,BALL Price: $19.40 |
| 4 |
601B6301UG |
BEARING-BALL,#6301UG This part replaces 601B6301U. Price: $17.30 |
| 5 |
92027-1073 |
COLLAR,FRONT BEARING Price: $44.33 |
| 6 |
41035-1024 |
PANEL-ASY,FR BRK Price: $332.44 |
| 7 |
112BA0622 |
BOLT-UPSET This part replaces 112G0622. Price: $3.74 |
| 8 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 9 |
41048-1091 |
SHOE-BRAKE This part replaces 41048-015. Price: $32.19 |
| 10 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 11 |
92081-1550 |
SPRING,BRAKE SHOE Price: $9.49 |
| 12 |
41050-1006 |
CAM SHAFT,FRONT BRAKE Price: $27.68 |
| 13 |
41053-1007 |
LEVER,BRAKE CAM,FRONT Price: $58.19 |
| 14 |
670B2012 |
O RING,12MM Price: $3.23 |
| 15 |
92210-7501 |
NUT,12MM This part replaces 320G1200. Price: $3.73 |
| 16 |
41068-1025 |
AXLE,FRONT Price: $55.26 |
| 17 |
550D3228 |
PIN,COTTER,3.2X28 Price: $2.79 |
| 18 |
41078-009 |
CASE ASSY,SPEED GEAR Price: $110.26 |
| 19 |
41042-013 |
DUST COVER Price: $18.29 |
| 20 |
41059-024 |
GEAR,SPEEDOMETER Price: $36.73 |
| 21 |
41060-015 |
PINION,SPEEDOMETER Price: $18.71 |
| 22 |
41062-005 |
BUSH,SPEEDMETER CABLE Price: $19.48 |
| 23 |
41063-001 |
WASHER,5.1X9X0.4 Price: $4.69 |
| 24 |
41064-011 |
RECEIVER,SPEED GEAR Price: $6.09 |
| 25 |
41065-004 |
WASHER,THRUST Price: $4.35 |
| 26 |
41082-001 |
PIN,SPRING Price: $3.92 |
| 27 |
480J1900 |
CIRCLIP-TYPE-C,19MM Price: $1.28 |
| 28 |
654A405208 |
OIL SEAL Price: $15.93 |
| 29 |
92001-1182 |
BOLT,10X45 Price: $10.86 |
