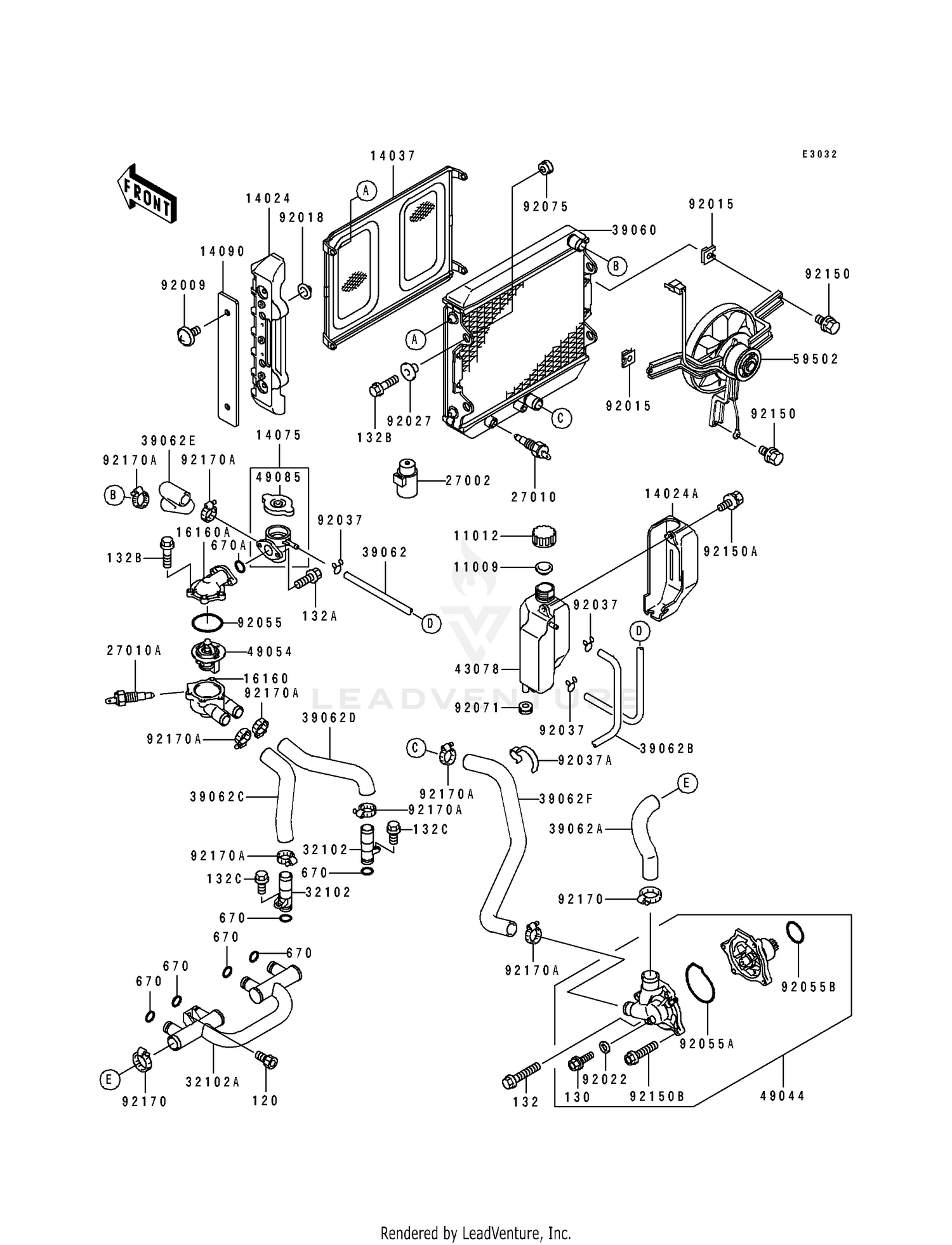

| Ref | Part Number | Description |
|---|
| 120 |
120CA0612 |
BOLT-SOCKET,6X12 This part replaces 120P0612. Price: $1.71 |
| 130 |
130C0610 |
BOLT-FLANGED,6X10,BLACK Price: $2.86 |
| 132 |
132E0645 |
BOLT-FLANGED-SMALL Price: $5.24 |
| 132A |
132BA0616 |
BOLT-FLANGED-SMALL,6X16 This part replaces 132G0616. Price: $1.51 |
| 132B |
132BA0620 |
BOLT-FLANGED-SMALL,6X20 This part replaces 132G0620. Price: $2.49 |
| 132C |
132BB0612 |
BOLT-FLANGED-SMALL,6X12 This part replaces 132J0612. Price: $2.06 |
| 670 |
670B2016 |
O RING,16MM Price: $1.36 |
| 11009 |
11009-1145 |
GASKET,RESERVOIR TANK CAP Price: $1.42 |
| 11012 |
11012-1084 |
CAP Price: $1.72 |
| 14024 |
14024-1221 |
COVER,RADIATOR Price: $47.29 |
| 14024A |
14024-1222 |
COVER,RESERVOIR Price: $28.50 |
| 14037 |
14037-1080 |
SCREEN Price: $88.83 |
| 14075 |
14075-1085 |
CAP-ASSY,RADIATOR Price: $148.68 |
| 14090 |
14090-1613 |
COVER,RADIATOR Price: $106.62 |
| 16160 |
16160-1112 |
BODY,THERMOSTAT,LWR Price: $74.17 |
| 16160A |
16160-1113 |
BODY,THERMOSTAT,UPP Price: $63.84 |
| 27002 |
27002-1051 |
RELAY-ASSY Price: $52.57 |
| 27010 |
27010-1167 |
SWITCH,FAN Price: $134.15 |
| 27010A |
27010-1239 |
SWITCH Price: $128.04 |
| 32102 |
32102-1043 |
PIPE Price: $38.43 |
| 32102A |
32102-1893 |
PIPE Price: $158.83 |
| 39060 |
39060-1070 |
RADIATOR Price: $861.23 |
| 39062 |
39062-0080 |
HOSE-COOLING,5.5X10.5 This part replaces 39062-1069. Price: $37.82 |
| 39062A |
39062-1111 |
HOSE-COOLING Price: $36.50 |
| 39062B |
39062-1220 |
HOSE-COOLING,RESERVOI This part replaces 39062-1125. Price: $26.45 |
| 39062C |
39062-1178 |
HOSE-COOLING,HEAD-THE Price: $30.86 |
| 39062D |
39062-1179 |
HOSE-COOLING,HEAD-THE Price: $30.32 |
| 39062E |
39062-1180 |
HOSE-COOLING,CAP-RADI Price: $24.37 |
| 39062F |
39062-1181 |
HOSE-COOLING,RADIATOR Price: $47.00 |
| 43078 |
43078-1072 |
RESERVOIR Price: $67.78 |
| 49044 |
49044-1093 |
PUMP-WATER This part replaces 49044-1077. Price: $395.75 |
| 49054 |
49054-1055 |
THERMOSTAT Price: $54.56 |
| 49085 |
49085-1066 |
CAP-ASSY-PRESSURE Price: $37.42 |
| 59502 |
59502-1075 |
FAN-ASSY Price: $659.70 |
| 92009 |
92009-1286 |
SCREW,6X10,WHITE Price: $4.31 |
| 92015 |
92015-1487 |
NUT Price: $4.80 |
| 92018 |
92018-005 |
NUT,PUSH,3MM Price: $2.76 |
| 92022 |
92022-1976 |
WASHER,6MM Price: $6.27 |
| 92027 |
92027-194 |
COLLAR,L=11.1 Price: $5.52 |
| 92037 |
92037-147 |
CLAMP,TUBE Price: $7.34 |
| 92037A |
92037-1552 |
CLAMP,HOSE Price: $9.97 |
| 92055 |
92055-1279 |
RING-O,44.7X2.4 Price: $7.34 |
| 92055A |
92055-1315 |
RING-O,WATER PUMP Price: $12.78 |
| 92055B |
92055-1424 |
RING-O,33.2X2.4 Price: $6.27 |
| 92071 |
92071-1115 |
GROMMET Price: $5.46 |
| 92075 |
92075-277 |
DAMPER Price: $2.84 |
| 92150 |
92150-1186 |
BOLT,6X12 Price: $3.37 |
| 92150A |
92150-1198 |
BOLT,6X16 Price: $4.13 |
| 92150B |
92150-1379 |
BOLT Price: $4.87 |
| 92170 |
92171-0179 |
CLAMP This part replaces 92170-1284. Price: $8.20 |
| 92170A |
92170-1285 |
CLAMP,COOLING HOSE Price: $20.99 |
