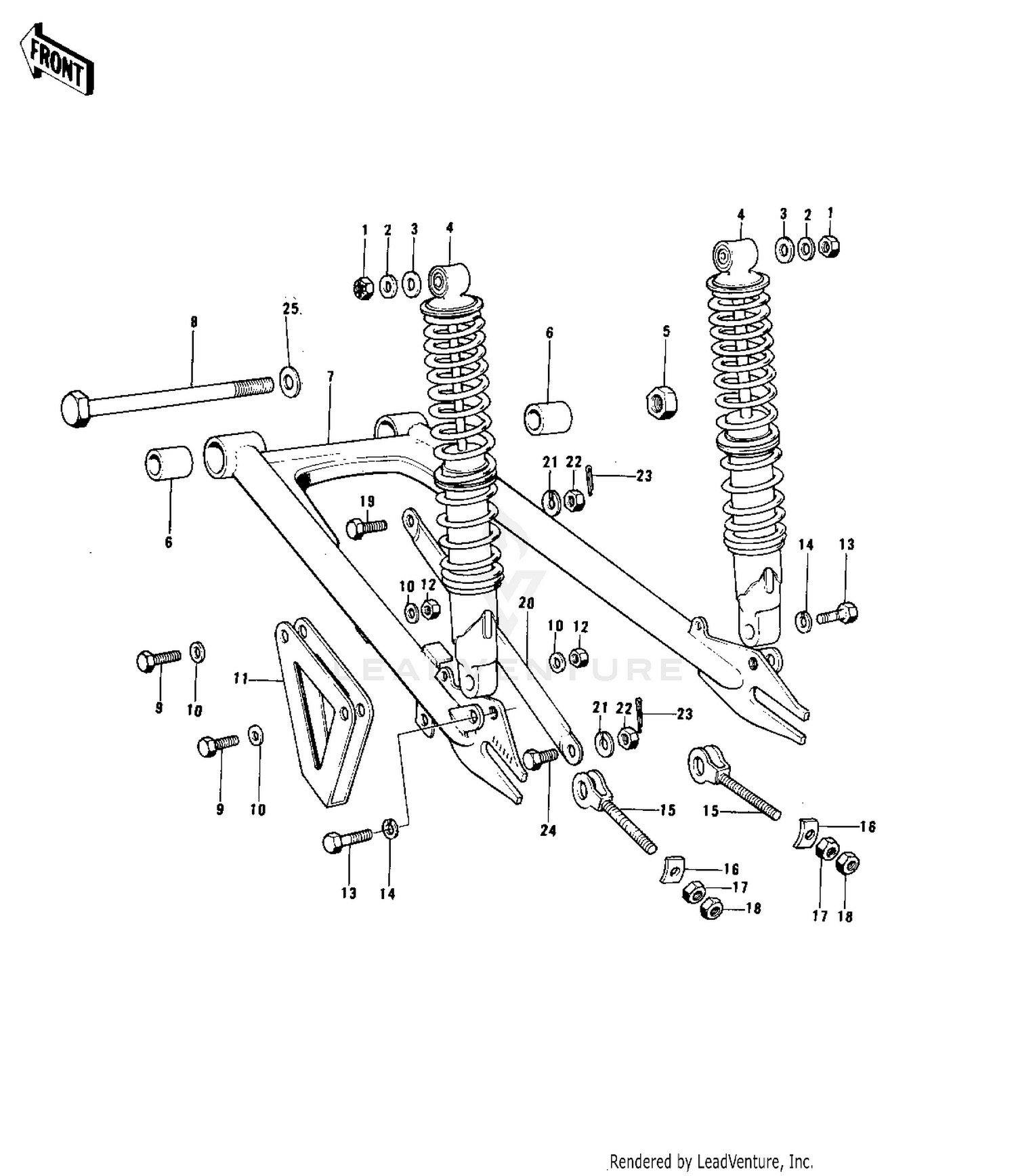

| Ref | Part Number | Description |
|---|
| 1 |
92019-016 |
NUT,10MM Price: $4.79 |
| 2 |
92022-044 |
WASHER,10.5X26X2.3 Price: $3.92 |
| 3 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 4 |
45014-099 |
SHOCK ABSBR RR Price: $201.09 |
| 5 |
92019-017 |
NUT,12MM Price: $3.85 |
| 6 |
33033-012 |
BUSHING,SWING ARM Price: $10.41 |
| 7 |
33001-072 |
SWING ARM Price: $152.94 |
| 8 |
33032-034 |
SHAFT-SWING ARM PIVOT Price: $38.31 |
| 9 |
112G0645 |
BOLT-UPSET Price: $0.74 |
| 10 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 11 |
55020-015 |
GUARD,CHAIN Price: $17.96 |
| 12 |
92019-019 |
NUT,6MM Price: $9.48 |
| 13 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
| 14 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 15 |
33040-057 |
ADJUSTER,CHAIN Price: $24.88 |
| 16 |
33041-002 |
PLATE-CHAIN ADJUSTER Price: $17.31 |
| 17 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 18 |
92019-018 |
NUT,8MM Price: $7.24 |
| 19 |
92003-143 |
BOLT,HEX HEAD,AX24 Price: $3.89 |
| 20 |
43007-039 |
TORQUE LINK,REAR BRK Price: $14.78 |
| 21 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 22 |
320B0800 |
NUT,8MM Price: $2.42 |
| 23 |
550AA2020 |
PIN-COTTER,2.0X20 This part replaces 550D2020. Price: $1.04 |
| 24 |
92003-144 |
BOLT,RR TORQUE LINK Price: $6.84 |
