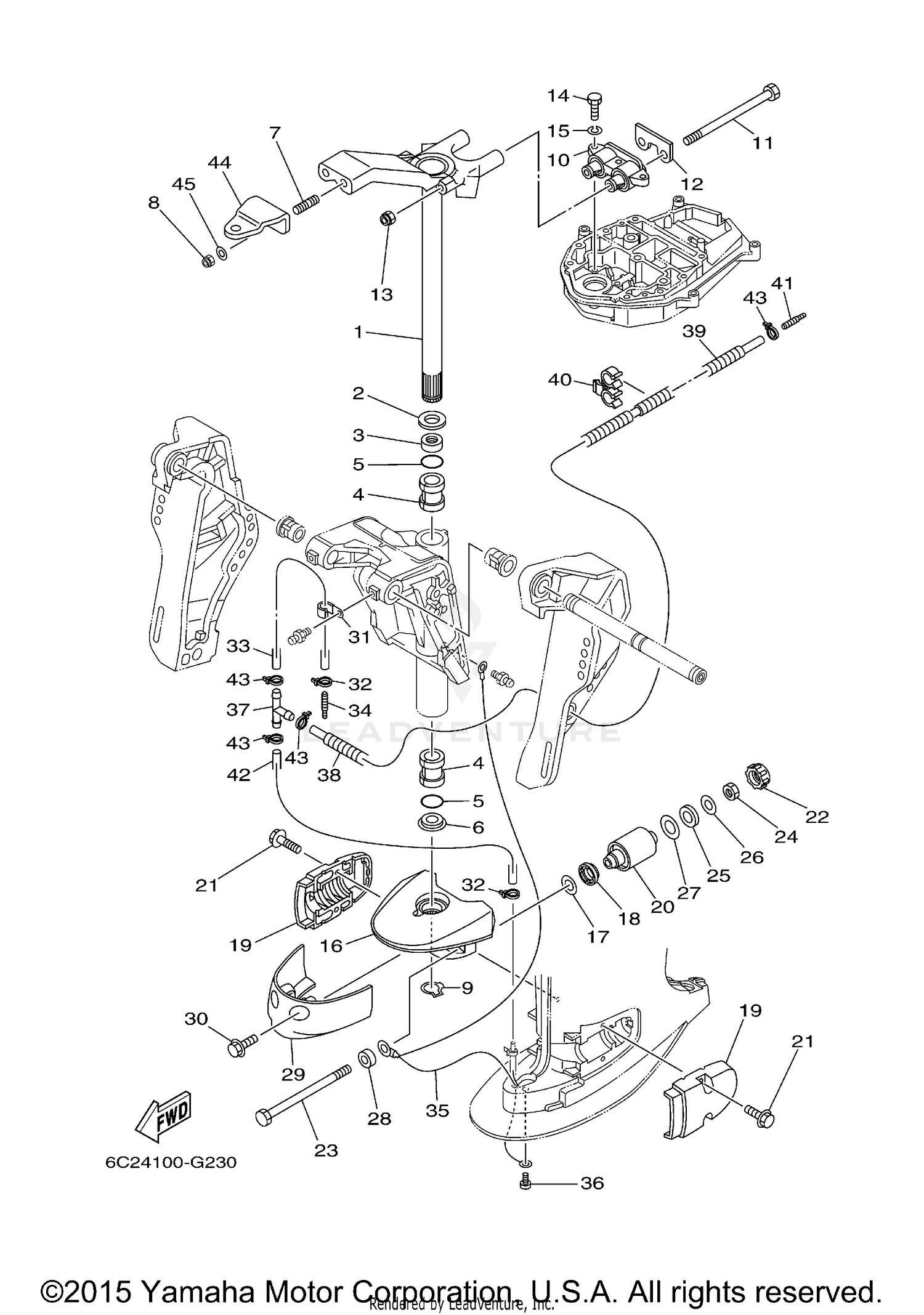

| Ref | Part Number | Description |
|---|
| 1 |
69W-42510-01-8D |
STEERING BRACKET ASSY Price: $294.65 |
| 2 |
90201-30M00-00 |
WASHER, PLATE Price: $7.15 |
| 3 |
90386-30M78-00 |
BUSH Price: $7.70 |
| 4 |
90386-30M77-00 |
BUSH Price: $15.65 |
| 5 |
93210-29M94-00 |
O-RING Price: $6.40 |
| 6 |
90386-30M60-00 |
BUSH Price: $8.60 |
| 7 |
90116-10063-00 |
BOLT, STUD This part replaces 90116-10038-00. Price: $4.05 |
| 8 |
90185-10027-00 |
NUT, SELF-LOCKING This part replaces 90185-10015-00. Price: $2.40 |
| 9 |
93410-28M06-00 |
CIRCLIP This part replaces 93440-30192-00. Price: $14.35 |
| 10 |
64J-44514-00-00 |
MOUNT DAMPER, UPPER SIDE This part replaces 64J-44514-00-4D. Price: $165.35 |
| 11 |
90109-08229-00 |
BOLT This part replaces 90109-08103-00. Price: $18.90 |
| 12 |
69W-44526-01-00 |
PLATE Price: $30.70 |
| 13 |
90185-08018-00 |
NUT, SELF-LOCKING This part replaces 90185-08010-00. Price: $4.60 |
| 14 |
97080-08030-00 |
BOLT This part replaces 97075-08030-00. Price: $4.60 |
| 15 |
92990-08100-00 |
WASHER, SPRING This part replaces 92995-08100-00. Price: $5.60 |
| 16 |
69W-44551-00-8D |
HOUSING, LOWER MOUNT RUBBER 1 Price: $157.30 |
| 17 |
90201-12M16-00 |
WASHER, PLATE Price: $4.60 |
| 18 |
6C5-43885-01-00 |
GROMMET This part replaces 6C5-43885-00-00. Price: $1.55 |
| 19 |
6C5-44552-00-8D |
HOUSING, LOWER MOUNT RUBBER 2 Price: $68.30 |
| 20 |
69W-44555-00-00 |
MOUNT DAMPER, LOWER SIDE This part replaces 69W-44555-00-4D. Price: $99.55 |
| 21 |
90119-08101-00 |
BOLT, WITH WASHER Price: $6.15 |
| 22 |
6C5-44575-00-00 |
DAMPER, LOWER MOUNT RUBBER Price: $10.40 |
| 23 |
90109-12MA3-00 |
BOLT Price: $45.95 |
| 24 |
95380-12700-00 |
NUT Price: $9.10 |
| 25 |
90202-21100-00 |
WASHER, PLATE Price: $8.55 |
| 26 |
90201-13M19-00 |
WASHER, PLATE Price: $7.80 |
| 27 |
90201-22M05-00 |
WASHER, PLATE Price: $4.50 |
| 28 |
90387-12057-00 |
COLLAR This part replaces 6C6-43127-00-00. Price: $37.35 |
| 29 |
67C-44553-00-8D |
COVER, LOWER MOUNT Price: $64.00 |
| 30 |
90119-08100-00 |
BOLT, WITH WASHER Price: Call Us |
| 31 |
90465-06M86-00 |
CLAMP Price: $7.15 |
| 32 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 33 |
90445-07MF2-00 |
HOSE (L250) Price: $4.15 |
| 34 |
6E5-83558-00-00 |
END, NIPPLE Price: $11.40 |
| 35 |
67C-82127-10-00 |
WIRE, LEAD 2 Price: $32.65 |
| 36 |
97885-06008-00 |
SCREW, PAN HEAD Price: $1.15 |
| 37 |
90413-05014-00 |
WAY 3 Price: $10.49 |
| 38 |
6C5-44385-00-00 |
HOSE, WATER 1 Price: $37.40 |
| 39 |
90447-07001-00 |
HOSE, WITH SPRING (L400) Price: $6.49 |
| 40 |
90464-10006-00 |
CLAMP Price: $2.85 |
| 41 |
6E5-83558-00-00 |
END, NIPPLE Price: $11.40 |
| 42 |
90445-07MF1-00 |
HOSE (L570) This part replaces 90445-07M30-00. Price: $8.15 |
| 43 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 44 |
65W-48511-01-00 |
HOOK, STEERING This part replaces 65W-48511-10-00. Price: $49.20 |
