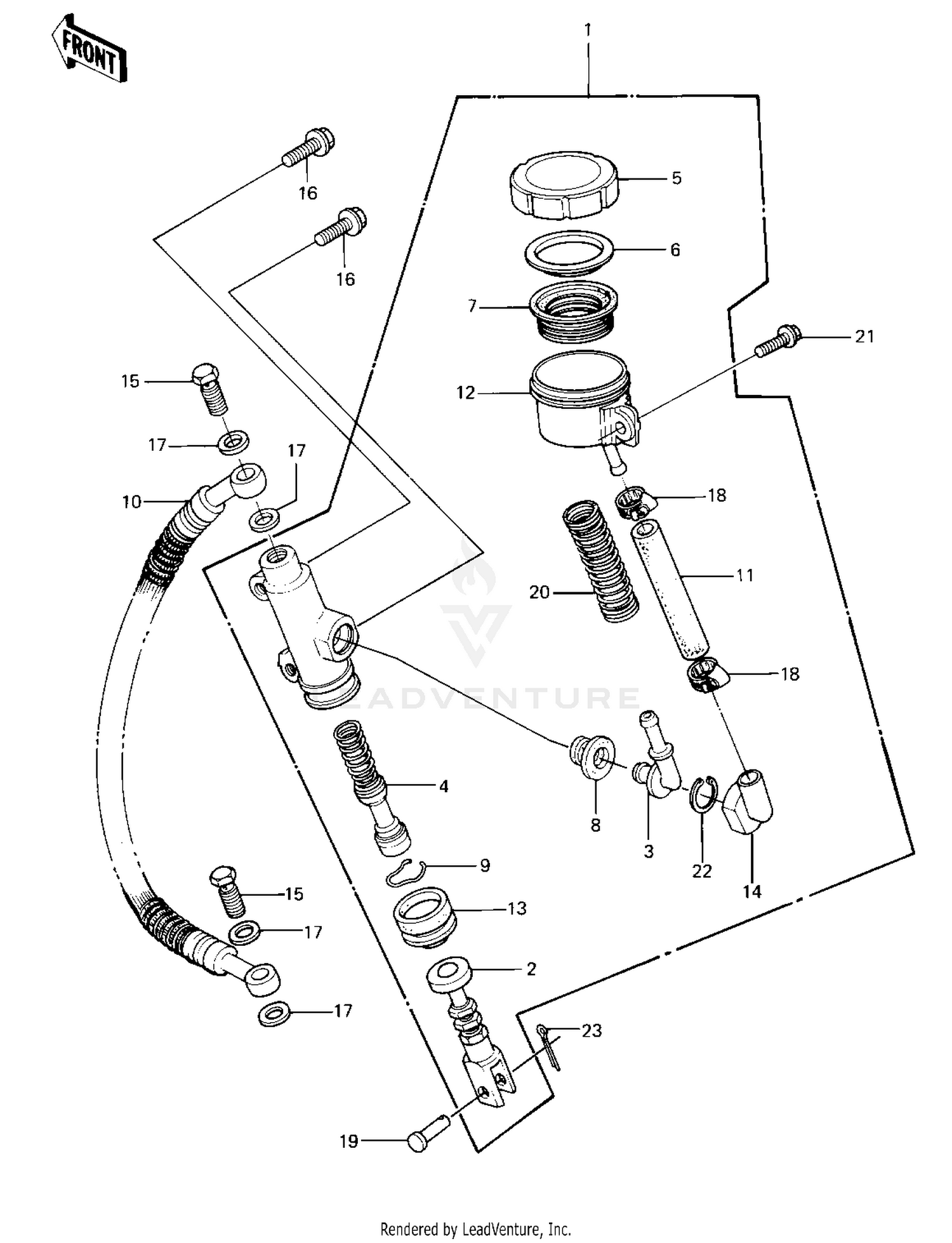

| Ref | Part Number | Description |
|---|
| 1 |
43015-1134 |
CYLINDER-ASSY-MASTER Price: $462.58 |
| 2 |
43010-1004 |
ROD ASSY,BRAKE Price: $131.16 |
| 3 |
13159-1009 |
CONNECTOR Price: $16.92 |
| 4 |
43020-1019 |
PISTON ASSY Price: $95.02 |
| 5 |
43026-1016 |
CAP-BRAKE Price: $36.42 |
| 6 |
43027-1005 |
PLATE,DIAPHRAGM Price: $6.52 |
| 7 |
43028-1016 |
DIAPHRAGM Price: $23.41 |
| 8 |
43049-1008 |
PACKING Price: $13.85 |
| 9 |
43058-004 |
RING,DUST SEAL Price: $7.64 |
| 11 |
43059-1096 |
HOSE-BRAKE Price: $13.33 |
| 12 |
43078-1009 |
RESERVOIR Price: $34.49 |
| 13 |
49016-1031 |
DUST COVER Price: $10.47 |
| 14 |
49016-1034 |
COVER-SEAL Price: $15.94 |
| 16 |
92001-1095 |
BOLT,FLANGED,8X28 Price: $6.57 |
| 17 |
49091-0001 |
WASHER-SEAL,10.1X14.5X1.5 This part replaces 43067-001. Price: $2.15 |
| 18 |
92037-1391 |
CLAMP,BRAKE HOSE This part replaces 92037-1154. Price: $10.53 |
| 19 |
92043-1013 |
PIN,8X16 Price: $9.91 |
| 20 |
92081-1335 |
SPRING HOSE PROTECTER Price: $15.50 |
| 21 |
130CA0620 |
BOLT-FLANGED,6X20 This part replaces 130B0620. Price: $1.70 |
| 22 |
481J2500 |
CIRCLIP-TYPE-C,25MM Price: $3.07 |
