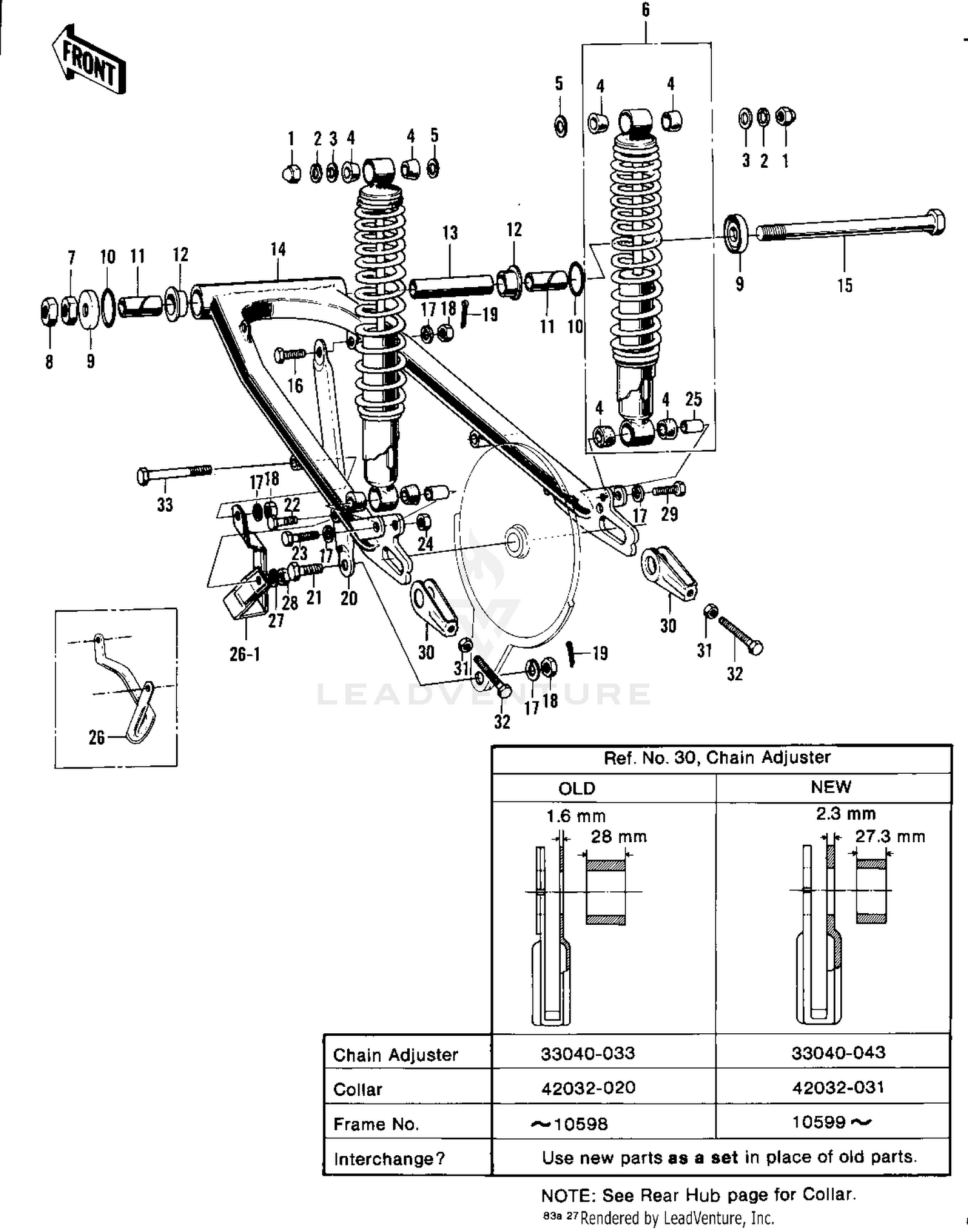

| Ref | Part Number | Description |
|---|
| 1 |
92020-003 |
NUT,CAP,10MM Price: $6.52 |
| 2 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 4 |
45017-003 |
BUSH SHOCK ABSORBER Price: $2.73 |
| 4 |
45017-005 |
BUSH-SHOCK ABSORBER Price: $5.32 |
| 5 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 7 |
314AA1400 |
NUT,14MM This part replaces 314B1400. Price: $1.18 |
| 8 |
315AA1400 |
NUT,14MM This part replaces 315B1400. Price: $2.17 |
| 9 |
33035-004 |
CAP-SWING ARM Price: $3.87 |
| 12 |
33033-009 |
BUSHING-SWING ARM Price: $99.19 |
| 14 |
33001-028 |
ARM-SWING Price: $124.81 |
| 15 |
33032-025 |
SHAFT-SWING ARM PIVOT Price: $16.25 |
| 16 |
92003-017 |
BOLT TORQUE LINK FIT Price: $5.68 |
| 17 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 18 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 19 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 20 |
43007-018 |
TORQUE LINK REAR BRK Price: $12.67 |
| 21 |
92150-1872 |
BOLT,10X32 This part replaces 92003-003. Price: $6.22 |
| 22 |
92002-1241 |
BOLT, 8X32 This part replaces 115B0832. Price: $2.59 |
| 23 |
113N1045 |
BOLT HEX HEAD 10X45 Price: $7.21 |
| 24 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 25 |
45016-003 |
BUSH SHCK ABS PVT SFT Price: $15.92 |
| 27 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 28 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 29 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
| 31 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 32 |
92002-1076 |
BOLT,8X50 This part replaces 92001-1399. Price: $9.48 |
