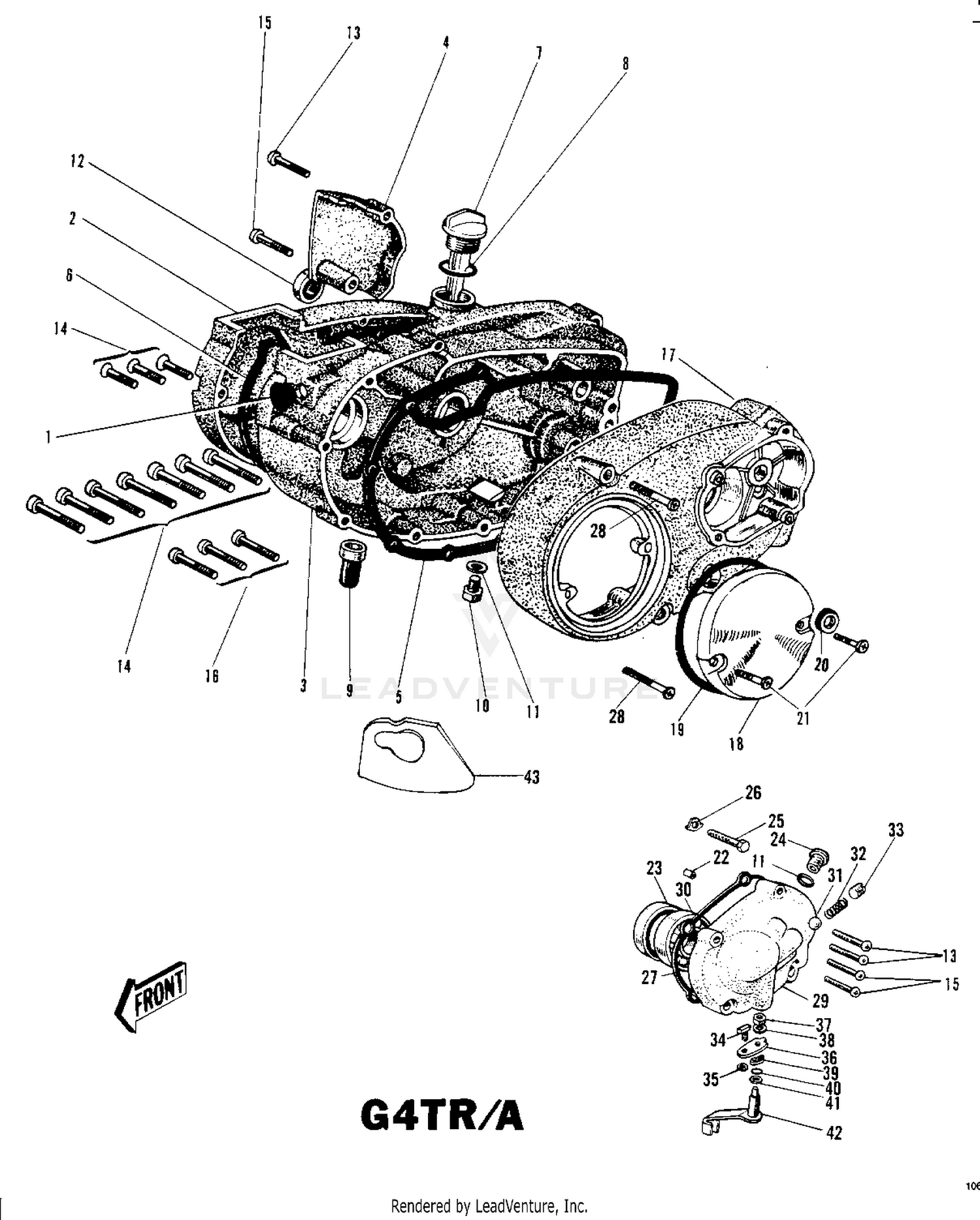

| Ref | Part Number | Description |
|---|
| 1 |
14039-001 |
CAP CARB MOUNT HOLE Price: $4.74 |
| 2 |
14030-005 |
COVER CARBURETOR Price: $30.05 |
| 3 |
14032-049 |
COVER R.H ENGINE Price: $95.73 |
| 4 |
14030-006 |
COVER OIL PUMP Price: $23.10 |
| 5 |
11060-1198 |
GASKET,CLUTCH COVER Price: $26.22 |
| 6 |
11060-1600 |
GASKET,CARBURETOR COV This part replaces 14048-001. Price: $33.35 |
| 7 |
16115-018 |
CAP-OIL FILLER Price: $10.56 |
| 9 |
16116-002 |
DRAIN FUEL Price: $13.59 |
| 10 |
92067-001 |
PLUG,DRAIN,10X12 Price: $4.41 |
| 11 |
92065-058 |
GASKET,10.5X16X1 Price: $3.96 |
| 12 |
653B142507 |
OIL SEAL TB14257 Price: $21.16 |
| 13 |
220AA0625 |
SCREW-PAN-CROS,6X25 This part replaces 220B0625. Price: $2.78 |
| 14 |
220AA0630 |
SCREW-PAN-CROS,6X30 This part replaces 220B0630. Price: $3.67 |
| 15 |
220AA0635 |
SCREW-PAN-CROS,6X35 This part replaces 220B0635. Price: $1.63 |
| 16 |
220AA0645 |
SCREW-PAN HEAD,6X45 This part replaces 220B0645. Price: $1.71 |
| 17 |
14031-036 |
COVER L.H ENGINE Price: $153.54 |
| 18 |
14027-007-79 |
COVER-BRK POINT,CR Price: $24.72 |
| 19 |
11060-1593 |
GASKET,BREAKER COVER This part replaces 14050-002. Price: $19.42 |
| 20 |
92049-1249 |
SEAL-OIL Price: $9.89 |
| 21 |
220AA0612 |
SCREW-PAN-CROS,6X12 This part replaces 220B0612. Price: $1.19 |
| 22 |
92043-1037 |
PIN,DOWEL,10X14 Price: $0.74 |
| 23 |
92050-012 |
OIL SEAL SC38556 Price: $22.94 |
| 24 |
16115-010 |
PLUG OIL FILLER Price: $4.98 |
| 25 |
112G0645 |
BOLT-UPSET Price: $0.74 |
| 26 |
92024-019 |
WASHER LOCK 6MM Price: $1.15 |
| 27 |
14051-001 |
GASKET LH ENG COV CAP Price: $3.66 |
| 28 |
220AA0665 |
SCREW-PAN HEAD,6X65 This part replaces 220B0665. Price: $4.62 |
| 30 |
601B6005 |
BEARING BALL #6005 Price: $16.92 |
| 31 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 32 |
92081-075 |
SPRING Price: $6.12 |
| 33 |
92066-015 |
PLUG L.H ENG COV CAP Price: $5.74 |
| 34 |
13197-001 |
RETAINER SHIFT ROD Price: $13.75 |
| 35 |
482K4000 |
CIRCLIP SELD BEM FIT Price: $1.35 |
| 36 |
13204-002 |
LEVER A Price: $16.30 |
| 37 |
312AA0600 |
NUT-HEX This part replaces 312B0600. Price: $0.73 |
| 38 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 39 |
13211-001 |
WASHER WAVE Price: $4.47 |
| 40 |
670B1508 |
O RING,8MM Price: $1.29 |
| 41 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 42 |
13234-001 |
LEVER SHIFT Price: $31.02 |
| 43 |
13123-003 |
TENSIONER-CHAIN Price: $5.79 |
