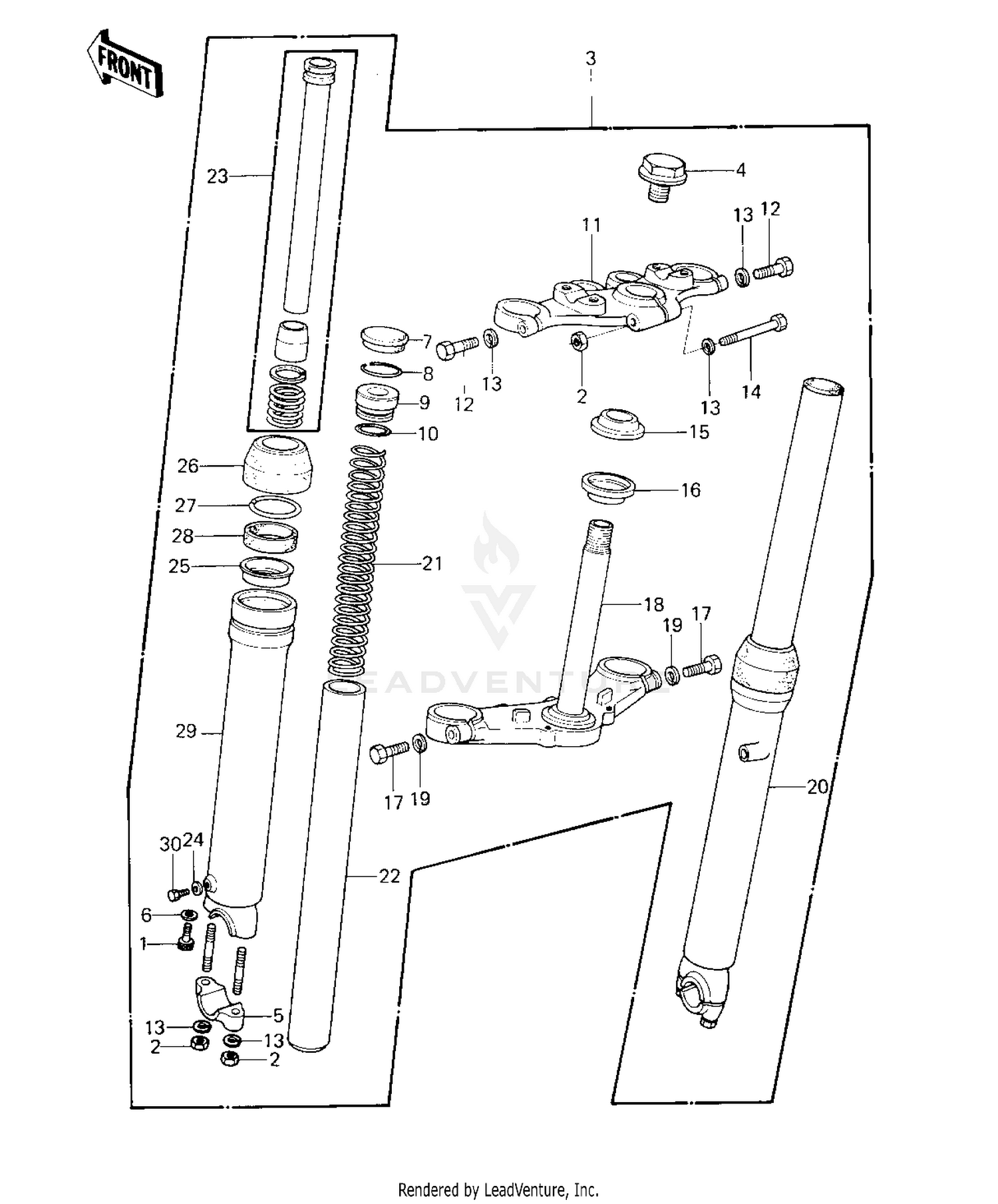

| Ref | Part Number | Description |
|---|
| 1 |
44041-078 |
BOLT,FORK CYLINDER Price: $9.89 |
| 2 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 3 |
44001-1230 |
FORK-FRONT Price: $707.19 |
| 4 |
92001-1741 |
BOLT,STEERING STEM HE Price: $8.06 |
| 5 |
44063-009 |
HOLDER,FRONT AXLE Price: $38.37 |
| 6 |
44045-051 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 7 |
11012-1119 |
CAP,RUBBER,FORK TOP Price: $5.06 |
| 8 |
44044-023 |
RING-SNAP Price: $5.46 |
| 9 |
44029-022 |
SEAT-FORK SPRING Price: $11.61 |
| 10 |
44046-025 |
RING-O Price: $6.57 |
| 11 |
44039-1030 |
HEAD,STEERING STEM Price: $217.18 |
| 12 |
92001-1063 |
BOLT,HEX HEAD,8X40 Price: $9.63 |
| 13 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 14 |
92001-1064 |
BOLT,HEX HEAD,8X55 Price: $9.77 |
| 15 |
92047-010 |
CONE STERNG BERG LOW Price: $10.51 |
| 16 |
44010-027 |
SEAL,STEERING STEM Price: $12.32 |
| 17 |
92001-1252 |
BOLT,HEX HEAD 10X35 Price: $7.65 |
| 18 |
44037-1042 |
STEM,STEERING Price: $139.77 |
| 19 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 20 |
44006-1045 |
TUBE,RH,FORK OUTER Price: $186.44 |
| 21 |
44026-1049 |
SPRING,FORK Price: $49.70 |
| 22 |
44013-1033 |
TUBE,FRONT INNER Price: $422.26 |
| 23 |
44022-1037 |
CYLINDER-FORK Price: $66.03 |
| 24 |
44045-052 |
GASKET,DRAIN PLUG This part replaces 44045-047. Price: $6.10 |
| 25 |
92026-1073 |
SPACER,OUTER TUBE Price: $10.48 |
| 26 |
44010-026 |
DUST SHIELD,FORK Price: $14.82 |
| 27 |
44044-020 |
RING-SNAP,45MM Price: $13.58 |
| 28 |
44009-018 |
OIL SEAL,FORK Price: $33.77 |
| 29 |
44005-1045 |
TUBE,LH,FORK OUTER Price: $186.44 |
