Home / MARINE / Marine Diesel Engines / D1-13F / CARBURETOR

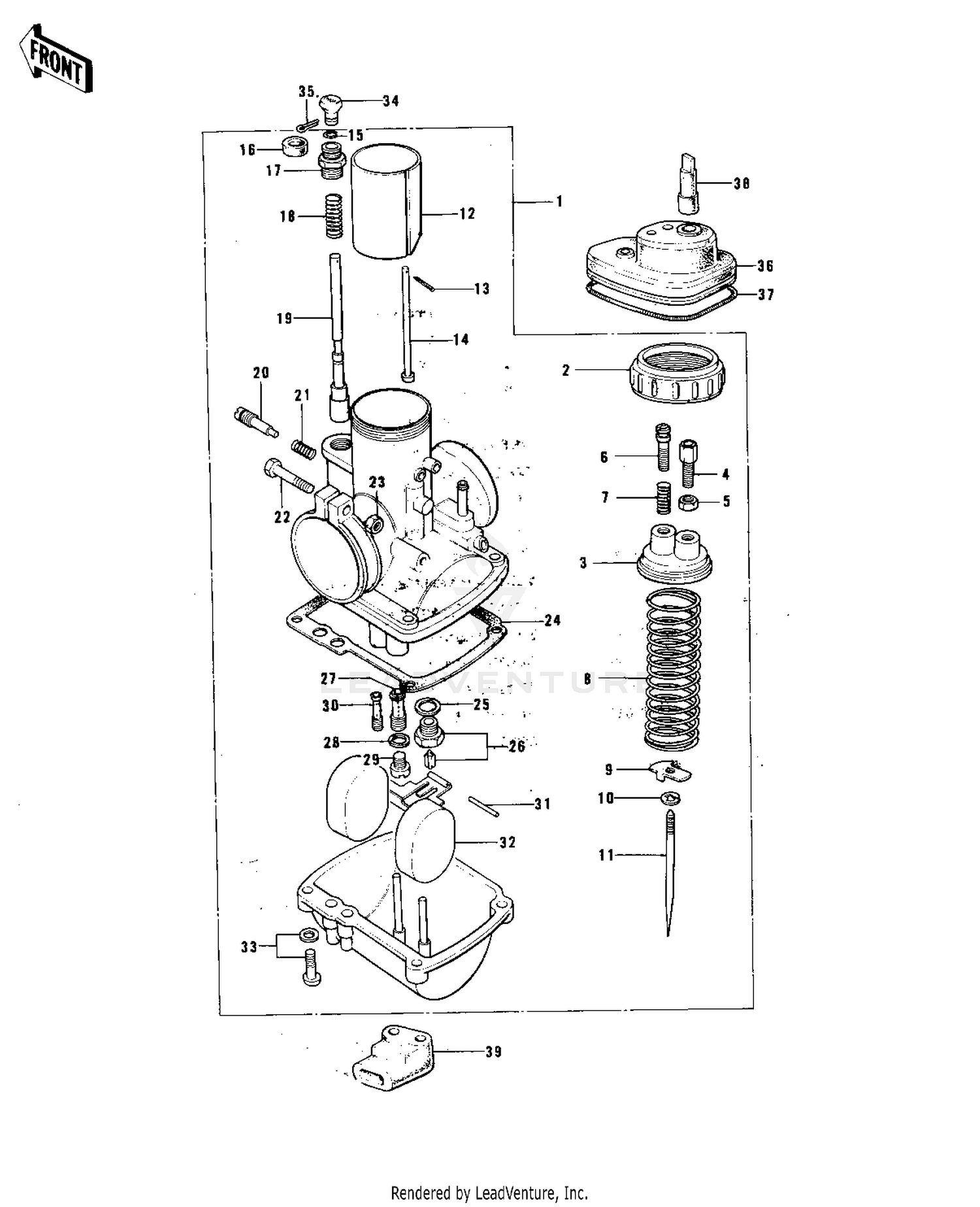

CARBURETOR

CARBURETOR

Parts (37)

RefPart NumberDescription
1 16001-230 CARBURETOR ASSY, Price: $164.01
2 16004-010 CAP MIXING CHAMBER Price: $20.59
3 16005-005 TOP MIXING CHAMBER Price: $20.79
4 16002-002 CABLE ADJUSTER Price: $11.83
5 16003-004 NUT CABLE ADJUST LOCK Price: $7.34
6 16021-002 SCREW,THROTTLE STOP Price: $18.22
7 16022-005 SPRING THR STOP SCREW Price: $8.68
8 16006-013 SPRING THROTTLE VALVE Price: $15.02
9 16007-020 SPRING SEAT,THRTL TL Price: $10.97
10 16008-010 CIRCLIP Price: $9.21
11 16009-059 JET NEEDLE 4EJ7 Price: $37.51
12 16025-057 VALVE,THROTTLE CA2.0 Price: $91.39
13 550AA1210 PIN-COTTER,1.2X10 This part replaces 550D1210. Price: $2.65
14 16024-012 ROD,THROTTLE VLV STP Price: $10.79
15 92037-1077 CIRCLIP Price: $5.73
16 16036-012 CAP,STARTER PLUNGER Price: $11.46
17 16012-021 CAP,STARTER PLUNGER Price: $15.94
18 16013-010 SPRING,STARTER PLUNGR Price: $5.68
19 16016-012 PLUNGER,STARTER Price: $40.35
20 16014-002 SCREW PILOT AIR ADJST Price: $18.22
21 16022-007 SPRING,PILOT AIR SCREW Price: $8.13
22 16010-004 SCREW CLAMP Price: $5.57
23 311AA0600 NUT-HEX,6MM This part replaces 311B0600. Price: $0.96
24 16019-021 GASKET,FLOAT CHAMBER Price: $20.79
25 16029-002 WASHER VALVE SEAT Price: $4.46
26 16030-001 FLOAT VALVE ASSY Price: $56.16
27 16017-068 NEEDLE JET O-Z Price: $55.22
28 16034-001 WASHER MAIN JET Price: $4.31
30 92064-020 PILOT JET #17.5 ISO Price: $19.96
31 16032-008 PIN,FLOAT This part replaces 16032-003. Price: $6.57
32 16031-015 FLOAT Price: $56.16
33 223AA0418 SCREW-PAN-WS-CROS This part replaces 16033-012. Price: $1.88
34 92077-022 KNOB,CARBURETOR Price: $10.64
35 550AA1615 PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51
36 14038-035 CAP,CARBURETOR Price: $15.50
37 92081-047 SPRING COIL Price: $11.29
38 16147-001 PLUG,CARBURETOR CAP Price: $5.17
