| Ref | Part Number | Description |
|---|
| 10b |
505071812 |
Retainer 17mm long Price: $6.09 |
| 10d |
505072133 |
Retainer 23mm Long Price: $6.89 |
| 10e |
860201220 |
Carbide Runner Kit (Rond Runner) Price: $134.99 |
| 10f |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 30d |
503192496 |
Washer Price: $0.79 |
| 30e |
233201464 |
Hex. Flange Elastic M10 x 1.5 Price: $7.69 |
| 30f |
505072594 |
Ski Stopper Price: $18.49 |
| 30g |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 200 |
250000703 |
Hex. Screw M10 X 130 Price: $10.99 |
| 210 |
505073691 |
Ski Axle Price: $14.49 |
| 320 |
505072690 |
Leg Bushing Price: $12.49 |
| 330 |
505074949 |
Spacer Price: $2.29 |
| 400 |
505074934 |
LH Lower Suspension Arm Price: $204.99 |
| 410 |
505074935 |
RH Lower Suspension Arm Price: $204.99 |
| 420 |
505072208 |
Bushing Price: $3.28 |
| 430 |
505072209 |
Sleeve Price: $17.84 |
| 440 |
505072634 |
Wear Plate Price: $6.39 |
| 445 |
505072448 |
O-Ring Price: $2.39 |
| 450 |
250001024 |
Screw Hex. M10 X 70 Price: $2.19 |
| 455 |
250001024 |
Screw Hex. M10 X 70 Price: $2.19 |
| 470 |
505073723 |
Wear Plate Price: $6.29 |
| 480 |
505073844 |
Plate Price: $2.39 |
| 500 |
505074760 |
LH Upper Suspension Arm Price: $154.99 |
| 510 |
505074761 |
RH Upper Suspension Arm Price: $154.99 |
| 520 |
505072250 |
Bushing Price: $3.28 |
| 530 |
505072143 |
Sleeve Price: $9.00 |
| 540 |
250001023 |
Screw Hex. M10 X 60 Price: $2.19 |
| 545 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 550 |
250001023 |
Screw Hex. M10 X 60 Price: $2.19 |
| 555 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 600 |
600A0500 |
BALL-STEEL,5/32 Price: $0.81 |
| 660 |
503189564 |
Washer Price: $0.76 |
| 670 |
505072392 |
Washer Price: $4.89 |
| 680 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 685 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 690 |
505072448 |
O-Ring Price: $2.39 |
| 800 |
505074719 |
Stabiliser Price: $67.99 |
| 810 |
505072064 |
Bushing Price: $2.32 |
| 830 |
505073731 |
Stabilisator Lever Price: $18.49 |
| 840 |
207663056 |
Hex. Flange Screw M6 X 1.0 X 30 Price: $4.49 |
| 850 |
233261466 |
Hex. Flange Elastic Nut M6 Price: $2.09 |
| 860 |
505072204 |
Sway Bar Double Joint Link Price: $21.99 |
| 870 |
207663056 |
Hex. Flange Screw M6 X 1.0 X 30 Price: $4.49 |
| 880 |
233261466 |
Hex. Flange Elastic Nut M6 Price: $2.09 |
| 1170 |
250000824 |
Hex. Flange Screw M8 X 58 Price: $2.19 |
| 1200 |
505074133 |
Ball Joint Price: $53.99 |
| 1230 |
503192491 |
Washer Price: $4.69 |
| 1240 |
232521464 |
Hex Elastic Nut M12 X 1.25 Price: $2.19 |
| 1300 |
293370070 |
Circlip Price: $9.19 |
| 1400 |
505072913 |
Upper Ball Joint Price: $72.99 |
| 1410 |
293370098 |
Snap Ring Price: $3.29 |

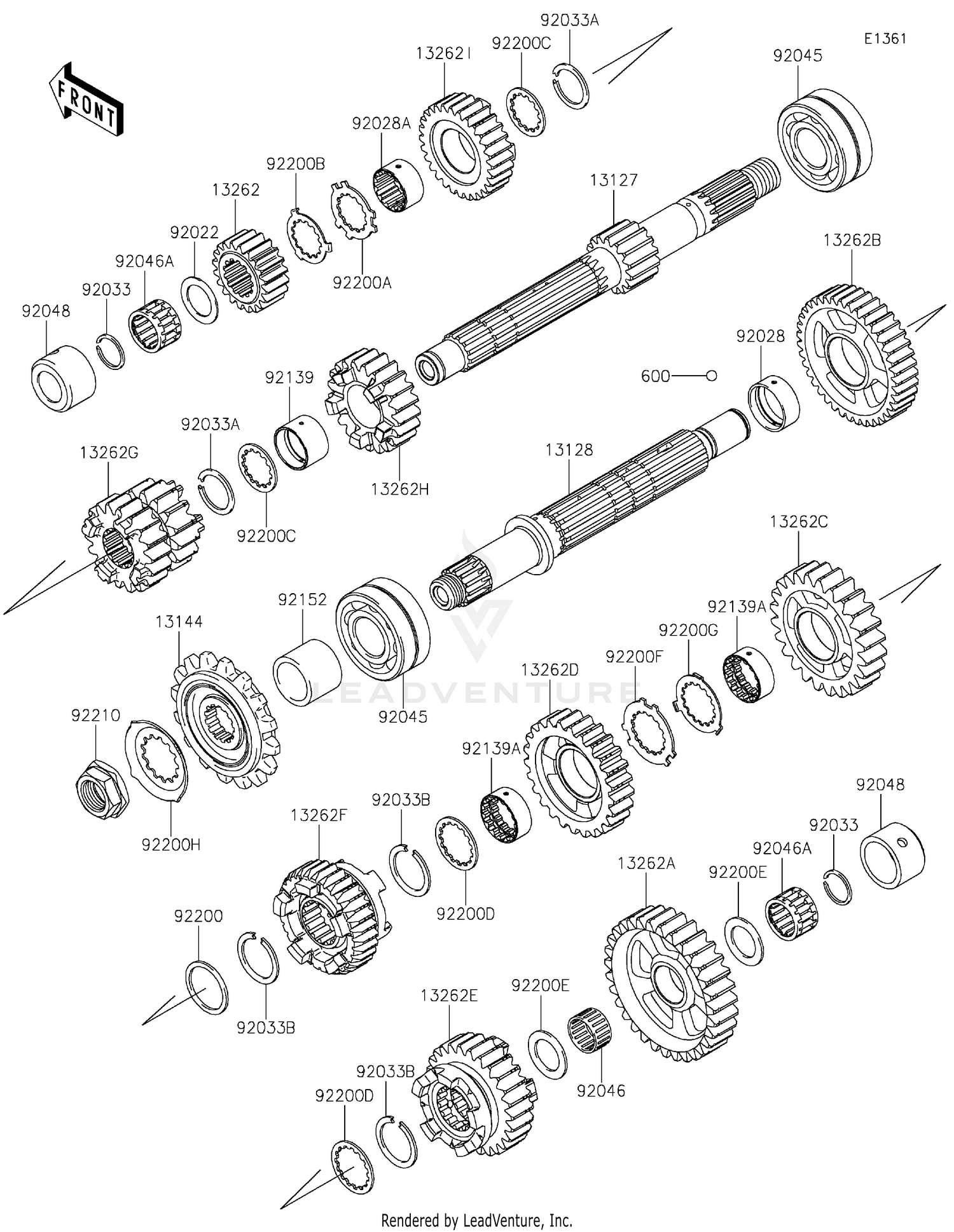

| 13127 |
13127-0073 |
SHAFT-TRANSMISSION INPUT Price: $299.16 |
| 13128 |
13128-0054 |
SHAFT-TRANSMISSION OUTPUT Price: $238.67 |
| 13144 |
13144-0579 |
SPROCKET-OUTPUT,15T Price: $46.80 |
| 13262 |
13262-0753 |
GEAR,INPUT 2ND,20T Price: $75.67 |
| 13262A |
13262-1255 |
GEAR,OUTPUT LOW,39T Price: $141.06 |
| 13262B |
13262-1256 |
GEAR,OUTPUT 2ND,39T Price: $128.14 |
| 13262C |
13262-1257 |
GEAR,OUTPUT 3RD,24T Price: $127.76 |
| 13262D |
13262-1258 |
GEAR,OUTPUT 4TH,25T Price: $126.24 |
| 13262E |
13262-1259 |
GEAR,OUTPUT 5TH,26T Price: $194.45 |
| 13262F |
13262-1260 |
GEAR,OUTPUT TOP,31T Price: $232.46 |
| 13262G |
13262-1270 |
GEAR,INPUT 3RD&4TH,15T&18T Price: $207.69 |
| 13262H |
13262-1271 |
GEAR,INPUT 5TH,21T Price: $154.63 |
| 13262I |
13262-1272 |
GEAR,INPUT TOP,28T Price: $153.39 |
| 92022 |
92022-112 |
WASHER,20.5X30X1,STEEL Price: $8.86 |
| 92028 |
92028-1739 |
BUSHING,OUTPUT,2ND Price: $25.59 |
| 92028A |
92028-1915 |
BUSHING,INPUT TOP GEAR Price: $25.83 |
| 92033 |
92033-015 |
RING-SNAP,20MM Price: $4.26 |
| 92033A |
92033-026 |
RING-SNAP,24MM Price: $8.79 |
| 92033B |
92033-1249 |
RING-SNAP,T=1.5 Price: $4.96 |
| 92045 |
92045-0003 |
BEARING-BALL,DAC2557NSSH Price: $105.03 |
| 92046 |
92046-1219 |
BEARING-NEEDLE,K20X24X13 Price: $13.37 |
| 92046A |
92046-1303 |
BEARING-NEEDLE,PK20X27X17X3 Price: $21.01 |
| 92048 |
92048-0016 |
RACE Price: $32.49 |
| 92139 |
92139-0280 |
BUSHING,25X28X17.8 Price: $34.79 |
| 92139A |
92139-0281 |
BUSHING,OUTPUT,3RD&4TH Price: $43.03 |
| 92152 |
92152-0812 |
COLLAR,SPROCKET Price: $28.86 |
| 92200 |
92200-0228 |
WASHER,28.1X34.0X1.6 Price: $27.48 |
| 92200A |
92200-0520 |
WASHER,25.2X34.2X1.5 Price: $7.24 |
| 92200B |
92200-0521 |
WASHER,25.2X32X1 Price: $8.08 |
| 92200C |
92200-1239 |
WASHER,25.2X31.0X1.5 Price: $7.84 |
| 92200D |
92200-1240 |
WASHER,28.5X34.0X1.5 Price: $10.28 |
| 92200E |
92200-1375 |
WASHER,20.5X31X1.5 Price: $4.69 |
| 92200F |
92200-1522 |
WASHER,25.8X40.5X1.5 Price: $4.83 |
| 92200G |
92200-1523 |
WASHER,25.2X37.0X1.0 Price: $6.36 |
| 92200H |
92200-1720 |
WASHER Price: $3.63 |
