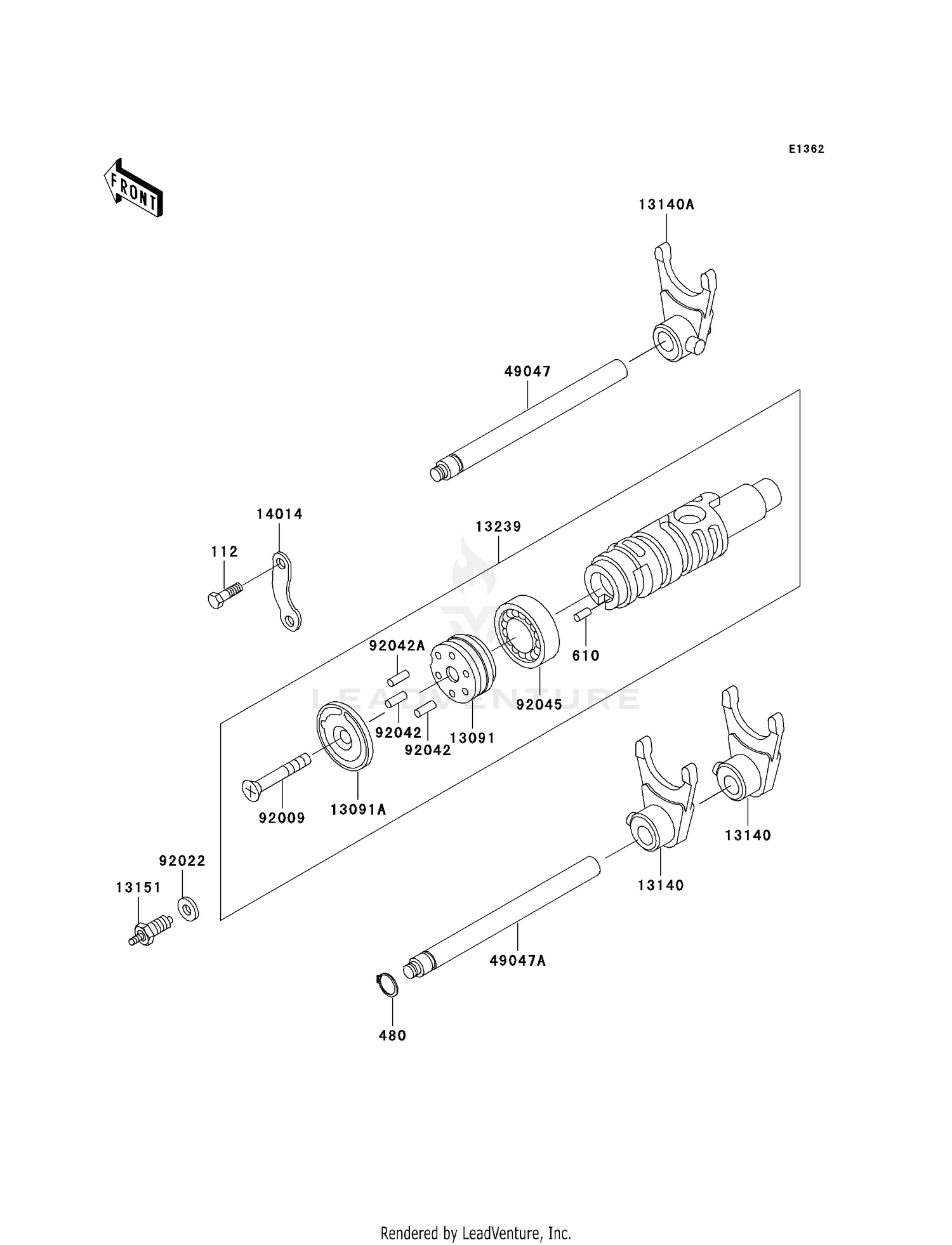

GEAR CHANGE DRUM/SHIFT FORK(S)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 112 | 112BA0616 | BOLT-UPSET,6X16 This part replaces 112G0616. Price: $1.17 |
| 480 | 480J1200 | CIRCLIP-TYPE-C,12MM Price: $0.62 |
| 610 | 610A0410 | ROLLER,4X10 Price: $4.31 |
| 13091 | 13091-1087 | HOLDER,CHANGE DRUM PI Price: $51.53 |
| 13091A | 13091-1088 | HOLDER,CHANGE DRUM Price: $27.54 |
| 13140 | 13140-1214 | FORK-SHIFT Price: $117.09 |
| 13140A | 13140-1215 | FORK-SHIFT Price: $117.09 |
| 13151 | 13151-1010 | SWITCH-COMP Price: $27.10 |
| 13239 | 13239-1107 | DRUM-ASSY-CHANGE Price: $253.70 |
| 14014 | 14014-1015 | PLATE-POSITION Price: $7.83 |
| 49047 | 49047-1014 | ROD-SHIFT Price: $39.65 |
| 49047A | 49047-1019 | ROD-SHIFT Price: $39.65 |
| 92009 | 92009-1599 | SCREW Price: $3.96 |
| 92022 | 92022-1211 | WASHER Price: $3.92 |
| 92042 | 92042-014 | PIN,DOWEL,4X15.8 Price: $0.43 |
| 92042A | 92042-020 | PIN,DOWEL,4X17.8 Price: $5.05 |
