Home / MARINE / Marine Diesel Engines / 120S-E / METERS/IGNITION SWITCH

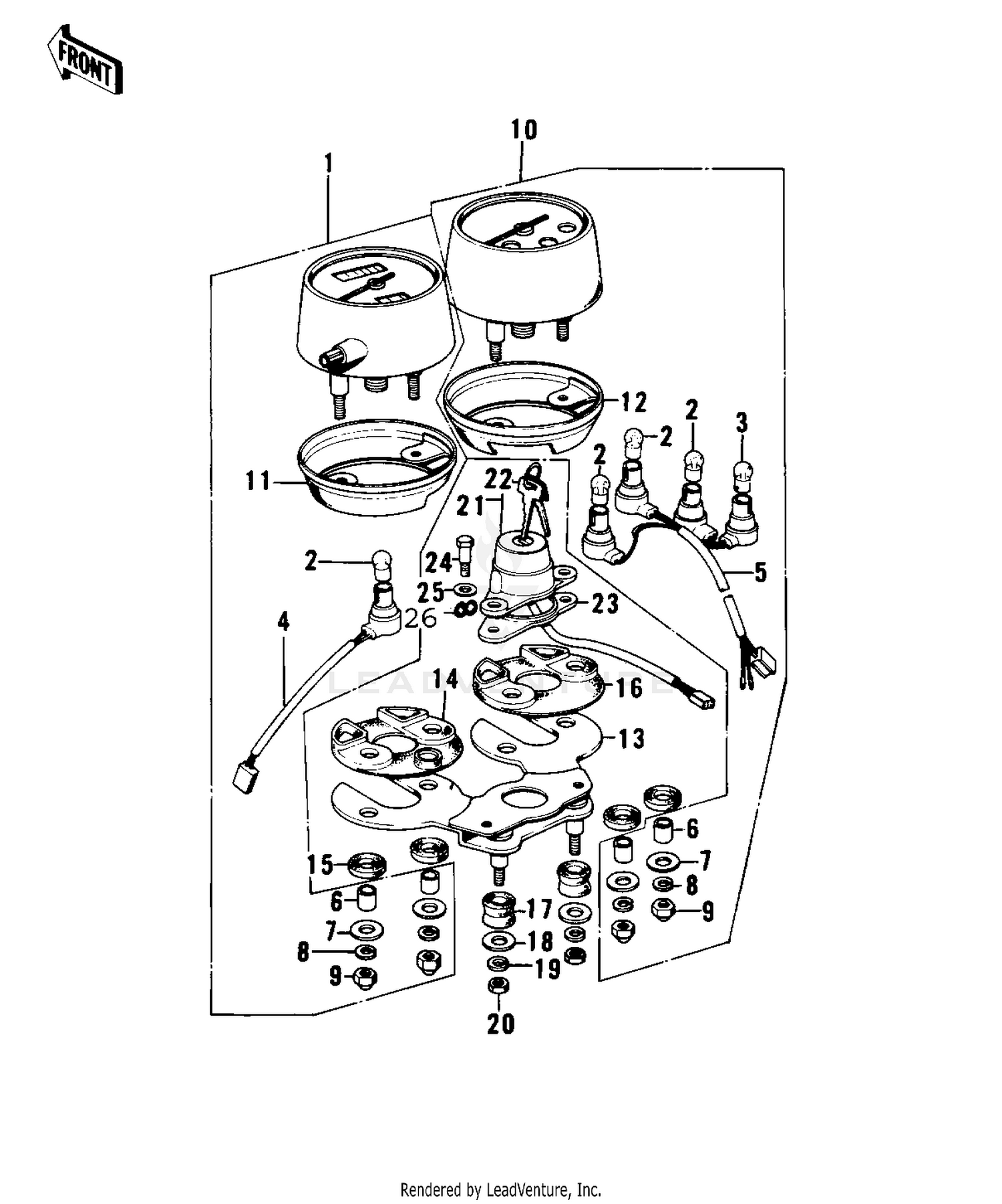

METERS/IGNITION SWITCH

METERS/IGNITION SWITCH

Parts (34)

RefPart NumberDescription
1 25005-096 SPEEDOMETER ASSY,MPH Price: $136.69
2 92069-024 BULB 6V 1.5W Price: $5.31
3 92069-053 BULB-6V 3W Price: $4.18
4 25010-015 SOCKET,SPEEDOMETER Price: $9.45
5 25011-039 SOCKET,TACHOMETER Price: $34.10
6 25021-004 COLLAR,METER FITTING Price: $5.03
7 92022-285 WASHER PL 5.2X18X1.2 Price: $7.88
8 461DA0500 WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71
9 322N0500 NUT-CAP,5MM Price: $4.06
10 25016-024 TACHOMETER ASSY Price: $115.81
11 25012-017 COVER-SPEEDOMETER Price: $35.33
12 25012-018 COVER,TACHOMETER Price: $33.73
13 25008-032 BRACKET,METER Price: $31.54
14 25019-018 SHOCK DAMPER,METER Price: $11.56
15 25019-019 DAMPER RUBBER,METER Price: $8.31
16 25019-020 DAMPER RUBBER,METER Price: $7.41
17 92075-024 DAMPER RUBB SPEEDMETR Price: $4.39
18 92200-0283 WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40
19 461DA0600 WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71
20 311AA0600 NUT-HEX,6MM This part replaces 311B0600. Price: $0.96
21 27005-068 SWITCH ASSY,IGNITION Price: $117.12
22 27008-063-11 KEY SET,#411 Price: $21.72
22 27008-063-12 KEY SET,#412 Price: $21.68
22 27008-063-13 KEY SET,#413 Price: $21.72
22 27008-063-14 KEY SET,#414 Price: $9.21
22 27008-063-15 KEY SET,#415 Price: $21.72
22 27008-063-16 KEY SET,#416 Price: $21.68
22 27008-063-17 KEY SET,#417 Price: $21.72
22 27008-063-18 KEY SET,#418 Price: $9.25
22 27008-063-19 KEY SET,#419 Price: $21.68
22 27008-063-20 KEY SET,#420 Price: $21.72
23 92075-077 DAMPER RUBBER Price: $9.19
24 92007-026 BOLT-HEX HEAD,6MM Price: $10.86
25 410AA0800 WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96
