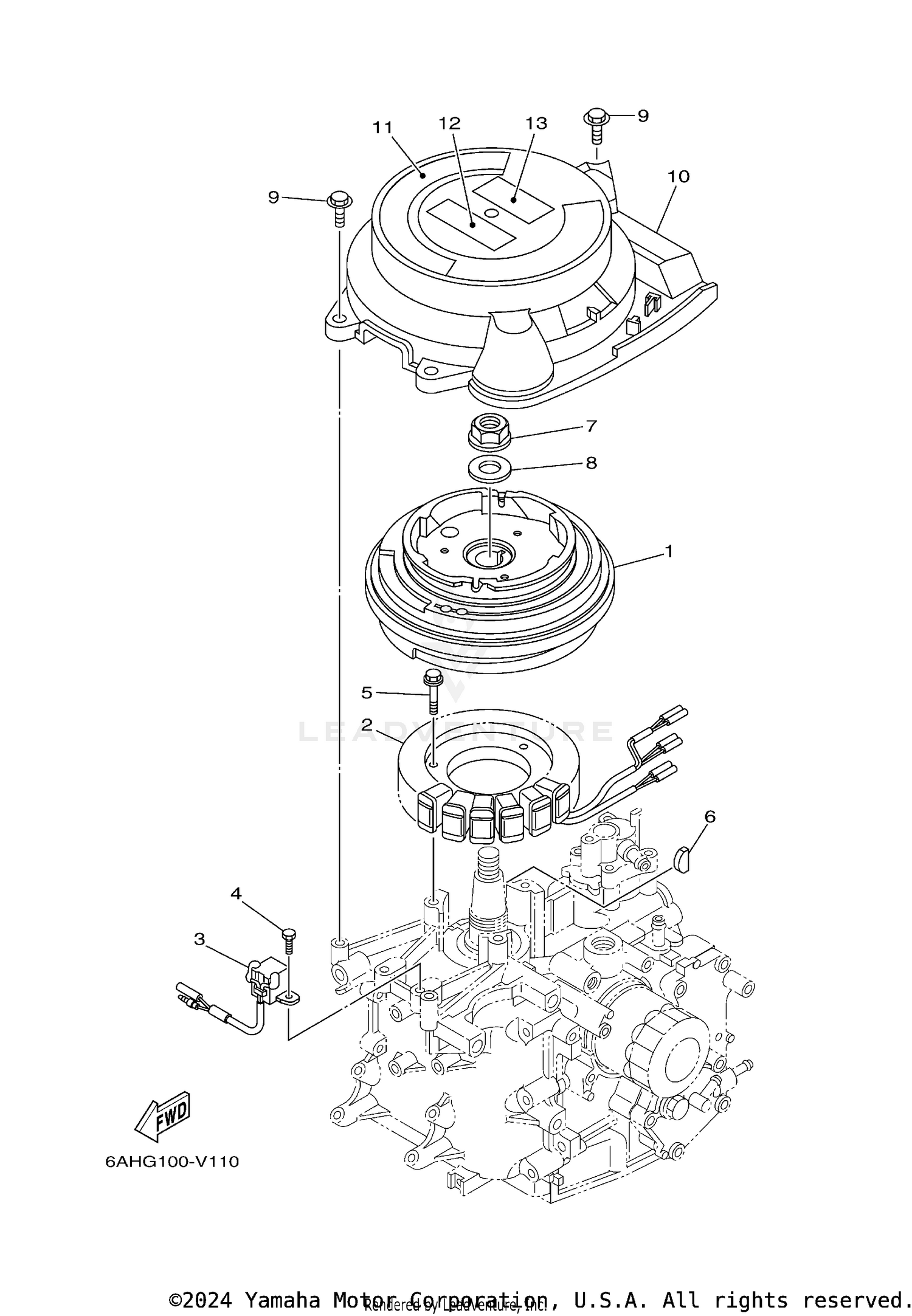

GENERATOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6AH-85550-10-00 | ROTOR ASSY Price: $510.00 |
| 2 | 6AH-85510-00-00 | STATOR ASSY Price: $445.75 |
| 3 | 6AH-85580-00-00 | COIL, PULSER Price: $87.60 |
| 4 | 97095-05012-00 | BOLT Price: $1.75 |
| 5 | 95D95-06030-00 | BOLT, FLANGE DEEP Price: $5.35 |
| 6 | 90280-05001-00 | KEY, WOODRUFF This part replaces 90280-05013-00. Price: $13.49 |
| 7 | 90179-16M05-00 | NUT Price: $15.99 |
| 8 | 90201-16M44-00 | WASHER, PLATE Price: $7.80 |
| 9 | 97E95-06520-00 | BOLT, HEXAGON W/W Price: $3.05 |
| 10 | 6AH-81337-00-00 | COVER, FLYWHEEL Price: $45.35 |
| 11 | 6AH-14427-61-00 | LABEL, INSTRUCTION Price: $11.55 |
| 12 | 6EE-81995-40-00 | LABEL, WARNING Price: $16.70 |
