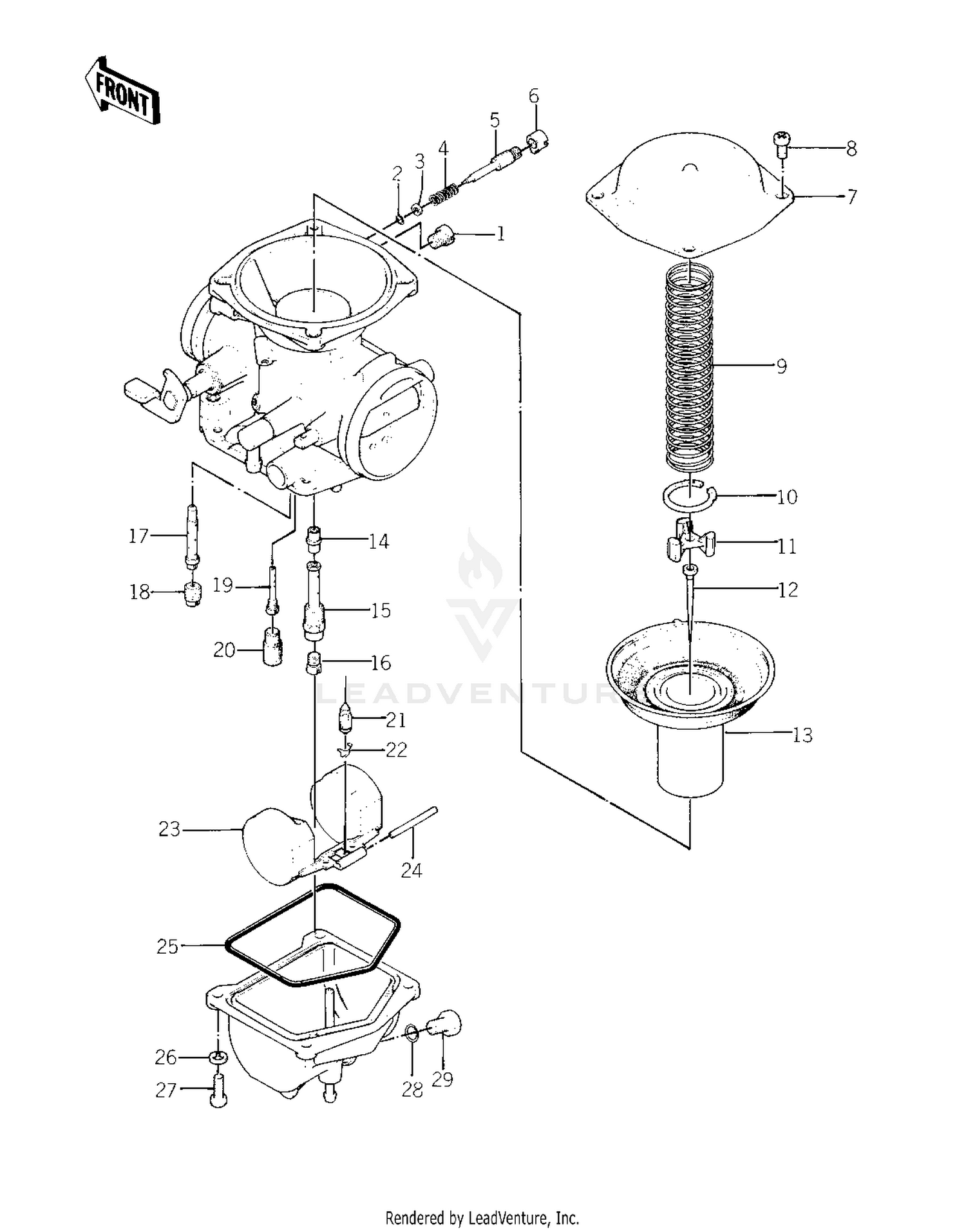

| Ref | Part Number | Description |
|---|
| 1 |
92009-1004 |
SCREW,PLUG Price: $9.07 |
| 2 |
92055-1002 |
RING-O,PILOT ADJUST Price: $4.31 |
| 3 |
92022-1003 |
WASHER,PLAIN Price: $4.31 |
| 4 |
92081-1002 |
SPRING,PILOT ADJUST SCREW Price: $5.46 |
| 5 |
16014-1001 |
SCREW,PILOT ADJUST Price: $15.63 |
| 6 |
11012-3727 |
CAP,JET NEEDLE Price: $4.27 |
| 7 |
16005-1001 |
TOP,MIXING CHAMBER Price: $39.60 |
| 8 |
22080408A |
SCREW,PAN HEAD, 4X8 Price: Call Us |
| 9 |
92081-1001 |
SPRING Price: $18.10 |
| 10 |
92037-1005 |
CIRCLIP Price: $9.07 |
| 11 |
16007-1001 |
COLLAR Price: $14.06 |
| 12 |
16009-1002 |
JET NEEDLES,#003301 Price: $30.76 |
| 13 |
16126-1042 |
VACUUM,VALVE Price: $239.33 |
| 14 |
16017-1001 |
NEEDLE JET Price: $43.70 |
| 15 |
16047-007 |
HOLDER,NEEDLE JET Price: $21.51 |
| 17 |
92062-1001 |
NOZZLE,MAIN Price: $27.82 |
| 19 |
92064-1001 |
PILOT JET,#35 Price: $23.08 |
| 20 |
16012-1001 |
CAP,RUBBER Price: $7.24 |
| 21 |
16030-1007 |
VALVE-FLOAT Price: $47.99 |
| 22 |
16044-007 |
CLAMP,FLOAT VALVE Price: $7.91 |
| 23 |
16031-1001 |
FLOAT Price: $64.24 |
| 24 |
92043-1002 |
FLOAT PIN Price: $6.25 |
| 25 |
16019-024 |
O RING,FLOAT BALL Price: $25.28 |
| 26 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 27 |
220AA0412 |
SCREW-PAN-CROS,4X12 This part replaces 220B0412. Price: $0.21 |
| 28 |
92055-1003 |
O RING,DRAIN SCREW Price: $6.02 |
