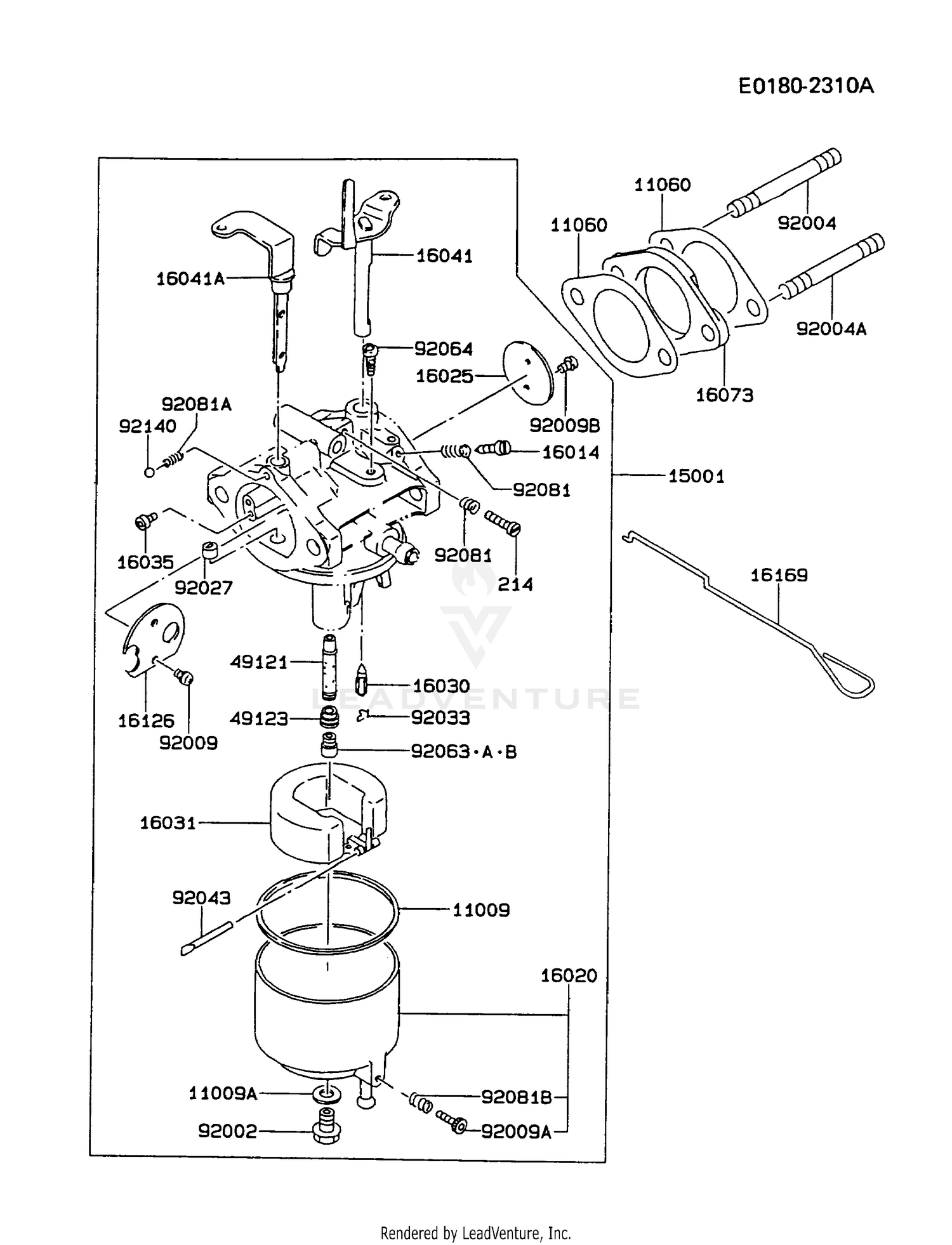

| Ref | Part Number | Description |
|---|
| 11009 |
11009-2024 |
GASKET Price: $4.15 |
| 11009A |
11009-2036 |
GASKET-FLOAT BOWL DRN Price: $0.91 |
| 11060 |
11060-2054 |
GASKET,CARBURETOR Price: $1.39 |
| 15001 |
15001-2667 |
CARBURETOR-ASSY Price: $115.19 |
| 16014 |
16014-2003 |
SCREW,PILOT Price: $7.96 |
| 16020 |
16020-2092 |
CHAMBER-FLOAT Price: $38.42 |
| 16025 |
16025-2051 |
VALVE, THROTTLE(#110) Price: $13.06 |
| 16030 |
16030-2020 |
VALVE-FLOAT Price: $12.63 |
| 16031 |
16031-2006 |
FLOAT Price: $22.84 |
| 16035 |
16035-2051 |
JET, AIR (#1.4) Price: $7.96 |
| 16041 |
16041-2124 |
SHAFT-CARBURETOR,THROTTL Price: $14.07 |
| 16041A |
16041-2125 |
SHAFT-CARBURETOR,CHOKE Price: $14.03 |
| 16073 |
16073-2053 |
INSULATOR Price: $7.12 |
| 16126 |
16126-2054 |
VALVE Price: $5.41 |
| 16169 |
16169-2106 |
LINK-CHOKE Price: $4.27 |
| 49121 |
49121-2051 |
NOZZLE-MAIN,#6A Price: $20.11 |
| 49123 |
49123-2015 |
HOLDER, MAIN JET Price: $17.50 |
| 92002 |
92001-2045 |
BOLT Price: $4.74 |
| 92004 |
92004-2086 |
STUD,6X100 Price: $2.37 |
| 92004A |
92004-2157 |
STUD This part replaces 92004-2087. Price: $3.67 |
| 92009 |
92009-2081 |
SCREW Price: $1.72 |
| 92009A |
92009-2015 |
SCREW,DRAIN Price: $4.94 |
| 92009B |
92009-2080 |
SCREW Price: $1.96 |
| 92027 |
92027-2003 |
COLLAR Price: $3.86 |
| 92033 |
92033-2067 |
CLIP Price: $3.64 |
| 92043 |
92043-2006 |
PIN,FLOAT Price: $3.06 |
| 92063B |
92063-2094 |
JET-MAIN,#91.3 Price: $6.94 |
| 92081 |
92081-2008 |
SPRING Price: $2.78 |
| 92081A |
92081-2045 |
SPRING,THROTTLE Price: $1.88 |
| 92081B |
92081-2009 |
SPRING Price: $2.78 |
| 92140 |
92140-2001 |
BALL Price: $0.87 |
