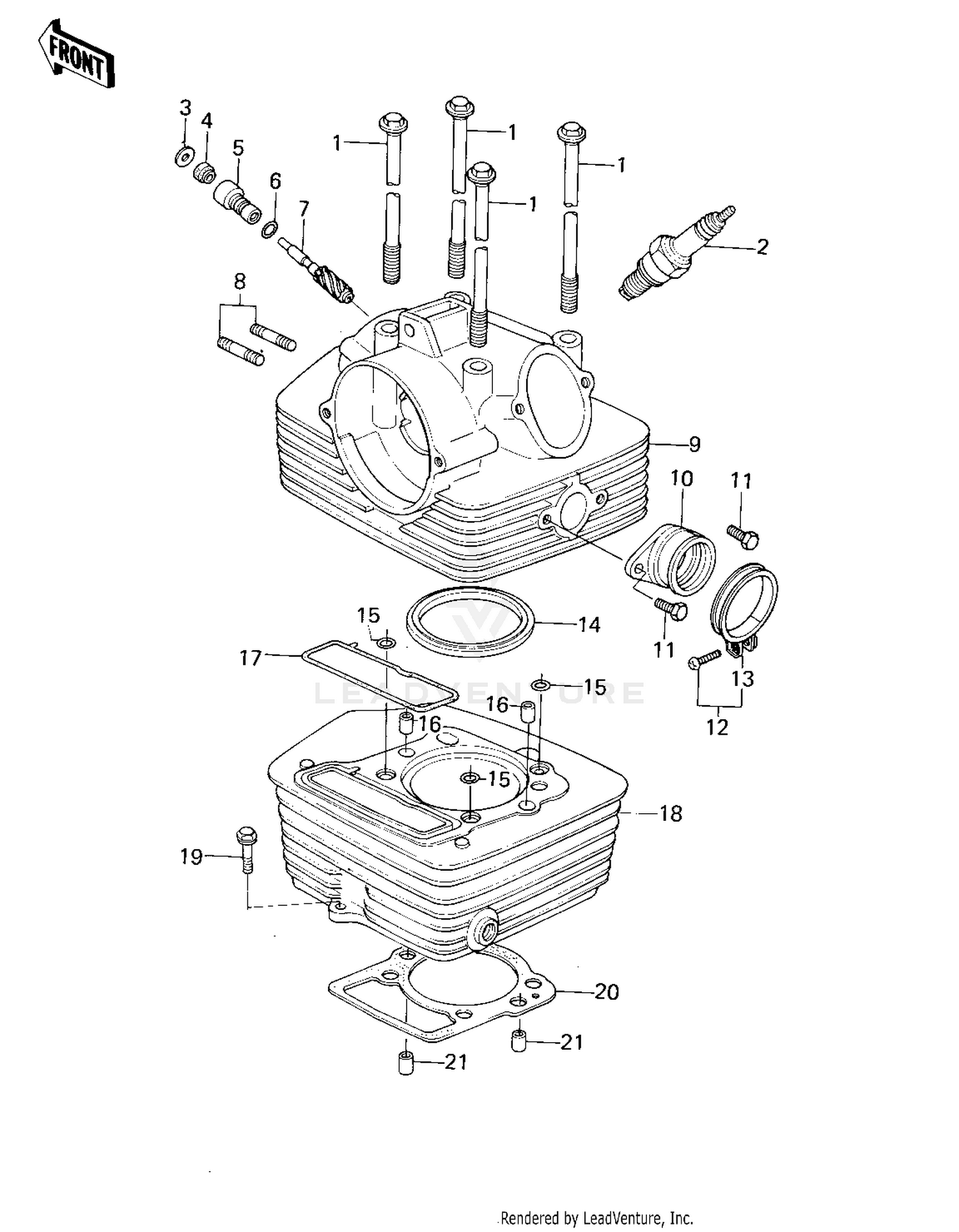

| Ref | Part Number | Description |
|---|
| 1 |
92003-220 |
BOLT,8X233 Price: $17.92 |
| 2 |
B7ES |
SPARK PLUG B7ES Price: $3.50 |
| 3 |
92065-104 |
GASKET,TACHO GEAR Price: $5.42 |
| 4 |
92050-075 |
OIL SEAL Price: $11.39 |
| 5 |
92087-011 |
GUIDE,TACHOMETER GEAR Price: $14.24 |
| 6 |
92055-1149 |
RING-O,10MM Price: $6.57 |
| 7 |
13223-012 |
GEAR,TACHOMETER Price: $31.86 |
| 8 |
92004-066 |
STUD,6X27 Price: $5.17 |
| 9 |
11002-5014 |
HEAD ASSY,CYLINDER Price: $575.88 |
| 10 |
16065-1003 |
HOLDER,CARBURETOR Price: $40.93 |
| 11 |
92001-121 |
BOLT,HEX HEAD,6X14 Price: $4.39 |
| 12 |
92037-200 |
CLAMP Price: $9.37 |
| 13 |
220AA0525 |
SCREW-PAN-CROS,5X25 This part replaces 220B0525. Price: $3.67 |
| 14 |
11004-1295 |
GASKET-HEAD,CYLINDER This part replaces 11004-1002. Price: $44.22 |
| 15 |
92055-1149 |
RING-O,10MM Price: $6.57 |
| 16 |
92043-1037 |
PIN,DOWEL,10X14 Price: $0.74 |
| 18 |
11005-1004 |
CYLINDER Price: $332.68 |
| 19 |
92003-202 |
BOLT Price: $6.56 |
| 20 |
11060-1366 |
GASKET,CYLINDER BASE This part replaces 11009-043. Price: $13.25 |
