| Ref | Part Number | Description |
|---|
| 1 |
207132044 |
Hex Screw M3 X 20 Price: $2.19 |
| 2 |
210262040 |
Hex. Flange Screw M6 X 20 Price: $2.19 |
| 3 |
210262550 |
Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. Price: $1.99 |
| 4 |
516006224 |
BRP Logo 20MM x 2MM This part replaces 219902677. Price: $14.49 |
| 5 |
232531423 |
Elastic Stop Nut M3 Price: $0.57 |
| 6 |
232561414 |
Elastic Stop Nut M6 Price: $0.57 |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 8 |
234032600 |
Flat Washer M3, Stainless Price: $0.57 |
| 9 |
234061410 |
Flat Washer 6 mm Price: $1.39 |
| 10 |
234461608 |
External Serrated Lock Washer 6 mm Price: $1.19 |
| 11 |
250000725 |
Screw M4 X 16 This part replaces 250000113. Price: $3.59 |
| 12 |
250000263 |
Torx Screw #8-18 Price: $1.09 |
| 13 |
250000690 |
Pan Screw Forming, 7500C Price: $2.19 |
| 14 |
250200039 |
Flat Washer Price: $0.76 |
| 15 |
250200041 |
Lock Washer Serrated M6 Price: $1.19 |
| 16 |
278002824 |
Case Ass'y with seal, 24 positions Price: $36.99 |
| 17 |
278002963 |
Safety Nut (DESS Switch) Price: $3.39 |
| 18 |
278003012 |
Starter Relay Price: $43.99 |
| 19 |
293750002 |
Tie Wrap 142 mm Price: $1.25 |
| 20 |
515177911 |
Indicator This part replaces 515177566. Price: $559.99 |
| 21 |
515177671 |
Fuse Box Cover Price: $13.99 |
| 22 |
515176944 |
Strap Price: $11.99 |
| 23 |
293750008 |
Tie Wrap 368 mm Price: $1.04 |
| 25 |
293750009 |
Tie-Rap 173 mm Price: $1.04 |
| 27 |
414115200 |
Tie-Rap 180 mm Price: $0.11 |
| 40 |
515175662 |
Male Terminal Housing, 6 Circuits Price: $8.99 |
| 41 |
515175846 |
Male Terminal Housing, 4 Circuits Price: $8.99 |
| 42 |
515175926 |
Switch Housing Plate Price: $21.99 |
| 43 |
415129898 |
Battery YUASA YTX20HL This part replaces 296000295. Price: $159.95 |
| 43a |
250000282 |
Battery Bolt Kit This part replaces 295500849. Price: $7.49 |
| 44 |
515176943 |
Ground Wire Price: $18.49 |
| 45 |
515177014 |
Ground Wire Price: $18.49 |
| 46 |
515178284 |
DESS This part replaces 515177057. Price: $84.99 |
| 47 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 48 |
515177249 |
DESS Switch Price: $114.99 |
| 51 |
515177310 |
Emergency Stop Switch Support Price: $9.39 |
| 53 |
515177347 |
Plate Price: $17.99 |
| 54 |
515177362 |
Emergency Stop Switch Price: $88.99 |
| 55a |
515176088 |
Start/RER Button Price: $21.99 |
| 57 |
515177427 |
Battery Wire Price: $31.99 |
| 58 |
515177460 |
Switch Ass'y Price: $47.99 |
| 59 |
515177512 |
WIRING HARNESS MAIN - Call your local BRP dealership Price: $349.99 |
| 63 |
515177610 |
COMMODO HARNESS - Call your local BRP dealership Price: $90.99 |
| 66 |
515177646 |
Fan Harness Price: $55.99 |
| 68 |
518325560 |
Adhesive Patch Price: $4.69 |
| 69 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 70 |
710000495 |
Protector Cap Price: $11.49 |
| 71 |
710010539 |
Voltage Regulator This part replaces 515177325. Price: $109.99 |
| 72 |
415129370 |
Gauge Ring Price: $11.49 |
| 73 |
415129355 |
Speedometer Button Price: $16.49 |

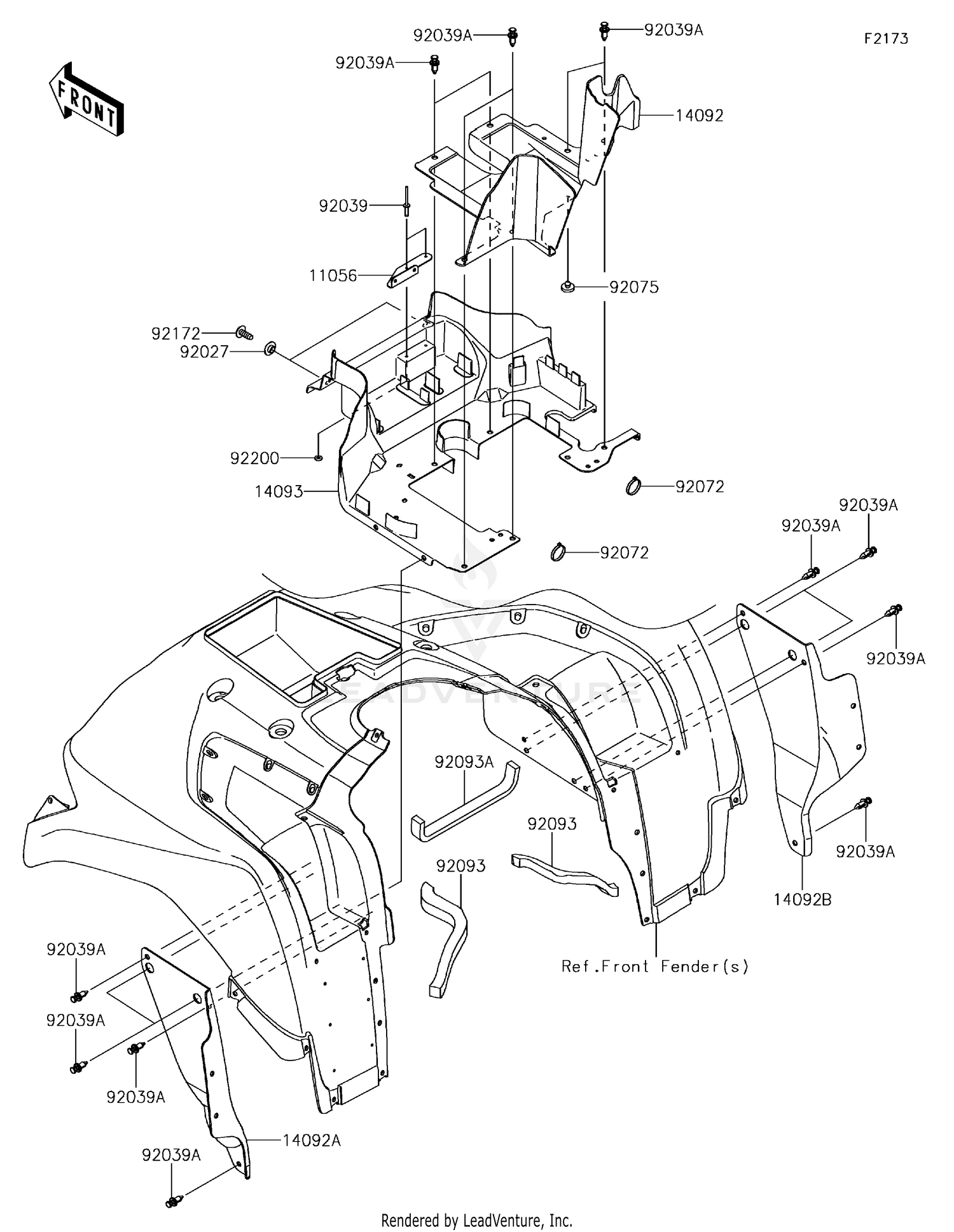

| 11056 |
11056-0956 |
BRACKET,V.D. SENSOR Price: $5.56 |
| 14092 |
14092-0182 |
COVER,TOP INNER,RR Price: $15.47 |
| 14092A |
14092-0183 |
COVER,SIDE INNER,LH Price: $10.39 |
| 14092B |
14092-0184 |
COVER,SIDE INNER,RH Price: $10.39 |
| 14093 |
14093-0022 |
COVER,TOP INNER,FR Price: $28.34 |
| 92027 |
92027-4020 |
COLLAR Price: $4.65 |
| 92039 |
92039-0031 |
RIVET Price: $1.19 |
| 92039A |
92039-0776 |
RIVET Price: $1.19 |
| 92072 |
92072-3509 |
BAND,L=292.1 Price: $2.12 |
| 92075 |
92075-2113 |
DAMPER,BOOST SENSOR Price: $1.15 |
| 92093 |
92093-0570 |
SEAL,20X270X30 Price: $11.06 |
| 92093A |
92093-0571 |
SEAL,20X300X20 Price: $9.09 |
| 92172 |
92172-0739 |
SCREW,TAPPING,6X16 Price: $0.85 |
