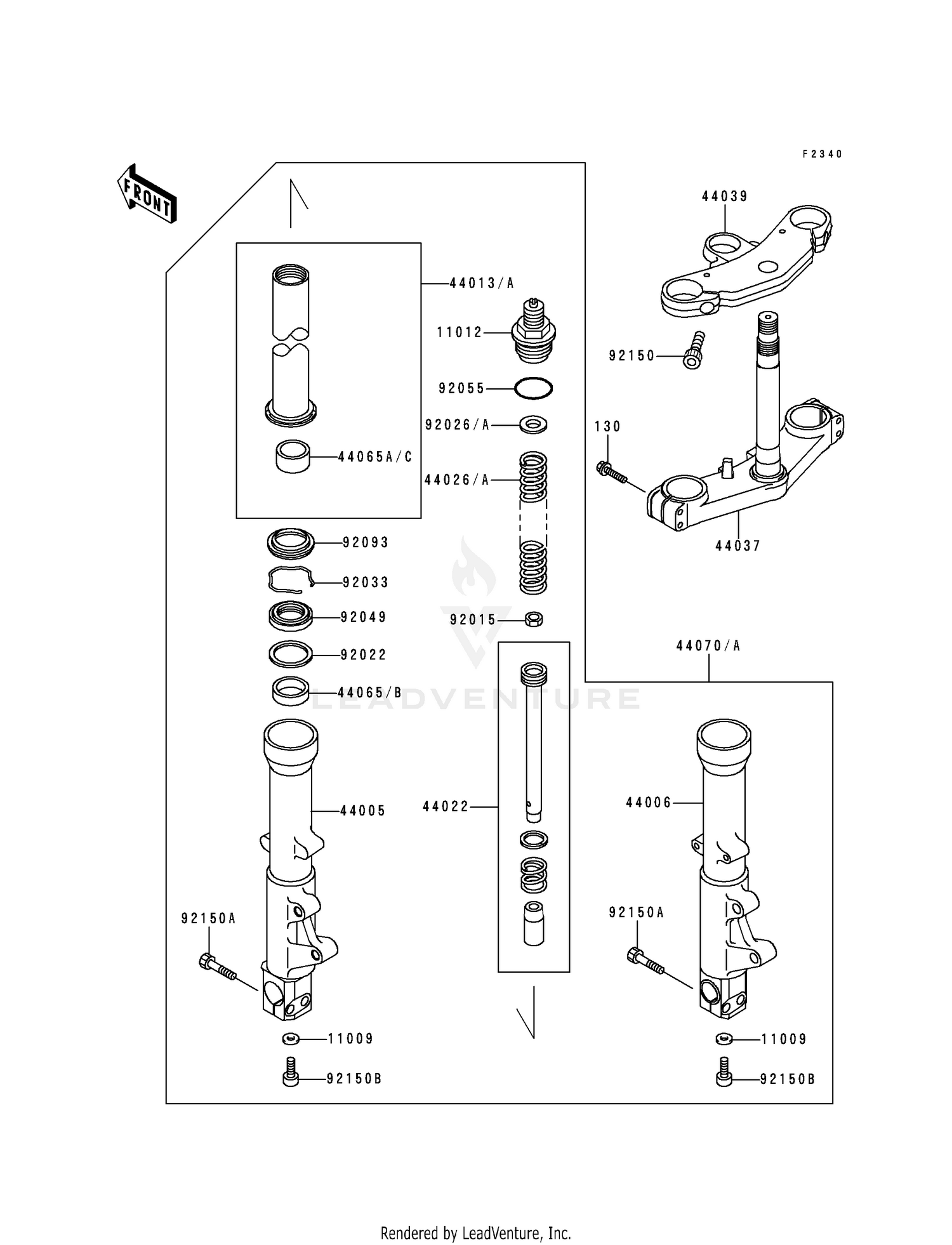

| Ref | Part Number | Description |
|---|
| 130 |
130V0845 |
BOLT-FLANGED Price: $4.22 |
| 11009 |
11009-1127 |
GASKET,FORK CYLINDER BOLT Price: $5.18 |
| 11012 |
11012-1937 |
CAP,FORK Price: $91.59 |
| 44005 |
44005-1353-GD |
PIPE-LEFT FORK OUTER, Price: $385.58 |
| 44006 |
44006-1351-GD |
PIPE-RIGHT FORK OUTER Price: $385.58 |
| 44013A |
44013-1419 |
PIPE-FORK INNER Price: $281.09 |
| 44022 |
44022-1307 |
CYLINDER-FORK Price: $227.63 |
| 44026A |
44026-1604 |
SPRING-FRONT FORK Price: $60.85 |
| 44037 |
44037-1330 |
HOLDER-FORK UNDER Price: $333.18 |
| 44039 |
44039-1257 |
HOLDER-FORK UPPER Price: $231.69 |
| 44065B |
44065-1115 |
BUSHING-FRONT FORK,OUTER TUBE Price: $28.71 |
| 44065C |
44065-1114 |
BUSHING-FRONT FORK,INNER PIPE This part replaces 44065-1116. Price: $21.57 |
| 44070A |
44070-1474-GD |
DAMPER-ASSY,FORK,G.GR Price: $2,084.31 |
| 92015 |
92015-1795 |
NUT Price: $5.52 |
| 92022 |
92022-1298 |
WASHER,FORK OUTER TUBE Price: $8.58 |
| 92026A |
92026-1475 |
SPACER Price: $10.28 |
| 92033 |
92033-1036 |
RING-SNAP Price: $6.51 |
| 92049 |
92049-1356 |
SEAL-OIL,FORK OUTER TUBE Price: $19.34 |
| 92055 |
92055-1321 |
RING-O Price: $0.74 |
| 92093 |
92093-1359 |
SEAL,FORK OUTER TUBE Price: $21.09 |
| 92150 |
120CA0825 |
BOLT-SOCKET,8X25 This part replaces 92150-1172. Price: $2.06 |
| 92150A |
120CA0840 |
BOLT-SOCKET,8X40 This part replaces 92150-1194. Price: $2.80 |
