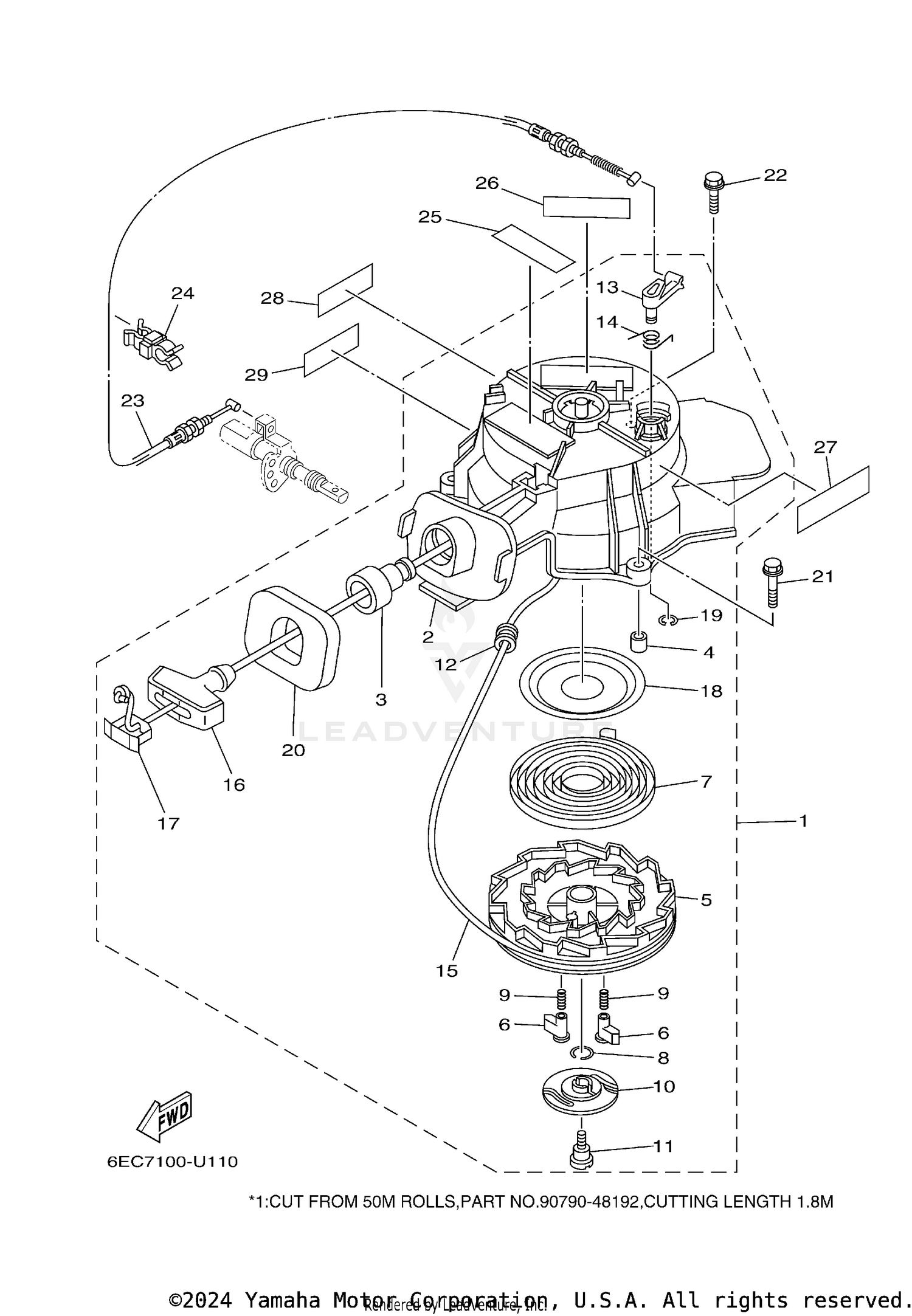

| Ref | Part Number | Description |
|---|
| 1 |
6EE-E5710-01-00 |
STARTER ASSY Price: $176.80 |
| 3 |
63V-15795-01-00 |
GUIDE, ROPE Price: $15.20 |
| 4 |
67D-15764-00-00 |
COLLAR 1 Price: $5.50 |
| 5 |
6EE-E5714-00-00 |
DRUM, SHEAVE Price: $62.85 |
| 6 |
67D-15741-00-00 |
PAWL, DRIVE Price: $6.70 |
| 7 |
67D-15713-00-00 |
SPRING, STARTER Price: $22.90 |
| 8 |
6BX-15705-00-00 |
SPRING, DRIVE PAWL Price: $3.80 |
| 9 |
67D-15767-00-00 |
SPRING Price: $5.50 |
| 10 |
67D-15735-00-00 |
GUIDE, CAM Price: $10.10 |
| 11 |
67D-15793-00-00 |
SCREW Price: $4.75 |
| 12 |
68T-15764-00-00 |
COLLAR 1 Price: $4.40 |
| 13 |
67D-15794-01-00 |
STOPPER Price: $13.00 |
| 14 |
67D-15734-00-00 |
SPRING, RETURN Price: $6.70 |
| 16 |
6G1-15755-00-00 |
HANDLE, STARTER Price: $14.30 |
| 17 |
6G1-15779-00-00 |
COVER Price: $3.35 |
| 18 |
67D-15739-00-00 |
WASHER, THRUST Price: $25.65 |
| 19 |
67D-15744-00-00 |
CIRCLIP Price: $5.50 |
| 20 |
6BX-15762-00-00 |
SEAL, RUBBER 2 Price: $39.40 |
| 21 |
97E95-06535-00 |
BOLT, HEXAGON W/W Price: $1.10 |
| 22 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 23 |
6EE-15770-00-00 |
CABLE COMP., STARTER STOP This part replaces 6BX-E5770-00-00. Price: $64.95 |
| 24 |
90464-07008-00 |
CLAMP Price: $3.45 |
| 25 |
6EE-H1995-40-00 |
LABEL, WARNING Price: $16.75 |
| 26 |
6EE-H1995-50-00 |
LABEL, WARNING Price: $16.75 |
| 27 |
6EE-E4427-60-00 |
LABEL, INSTRUCTION Price: $8.55 |
| 28 |
6EE-H1994-40-00 |
LABEL, SAFETY Price: $17.10 |
