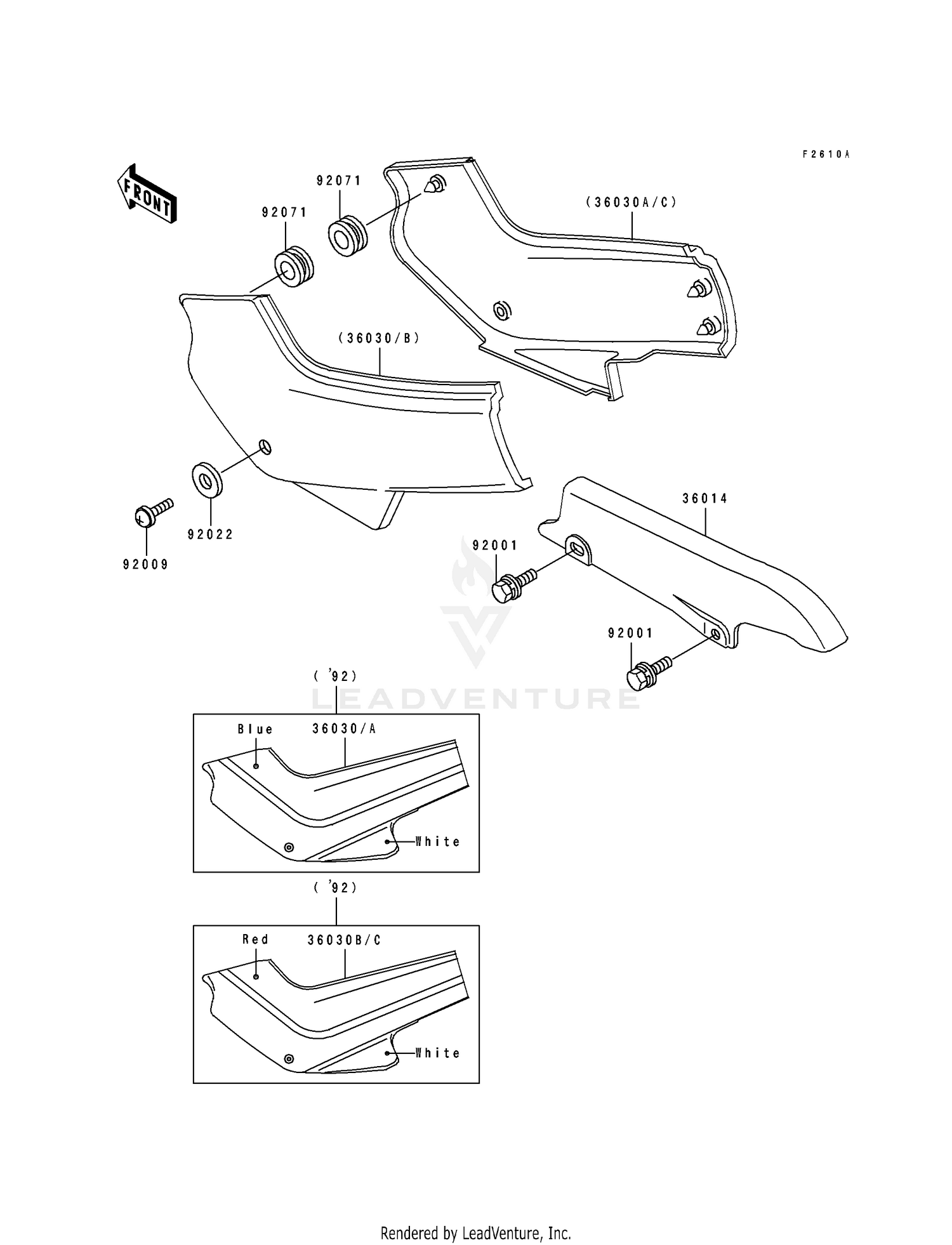

SIDE COVERS (EX500-A6)
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 36014 | 36014-1144 | CASE-CHAIN Price: $86.95 |
| 36030 | 36030-5047-S3 | COVER-SIDE,LH,BLUE/WH Price: $221.81 |
| 36030A | 36030-5048-S3 | COVER-SIDE,RH,BLUE/WH Price: $221.81 |
| 36030B | 36030-5049-GP | COVER-SIDE,LH,RED/WHI Price: $221.81 |
| 36030C | 36030-5050-GP | COVER-SIDE,RH,RED/WHI Price: $221.81 |
| 92001 | 92001-1847 | BOLT,6X14,BLACK Price: $3.96 |
| 92009 | 92009-1662 | SCREW,6X14 This part replaces 92009-1288. Price: $3.92 |
| 92022 | 92022-1654 | WASHER,6.5X16X1.0 Price: $3.65 |
