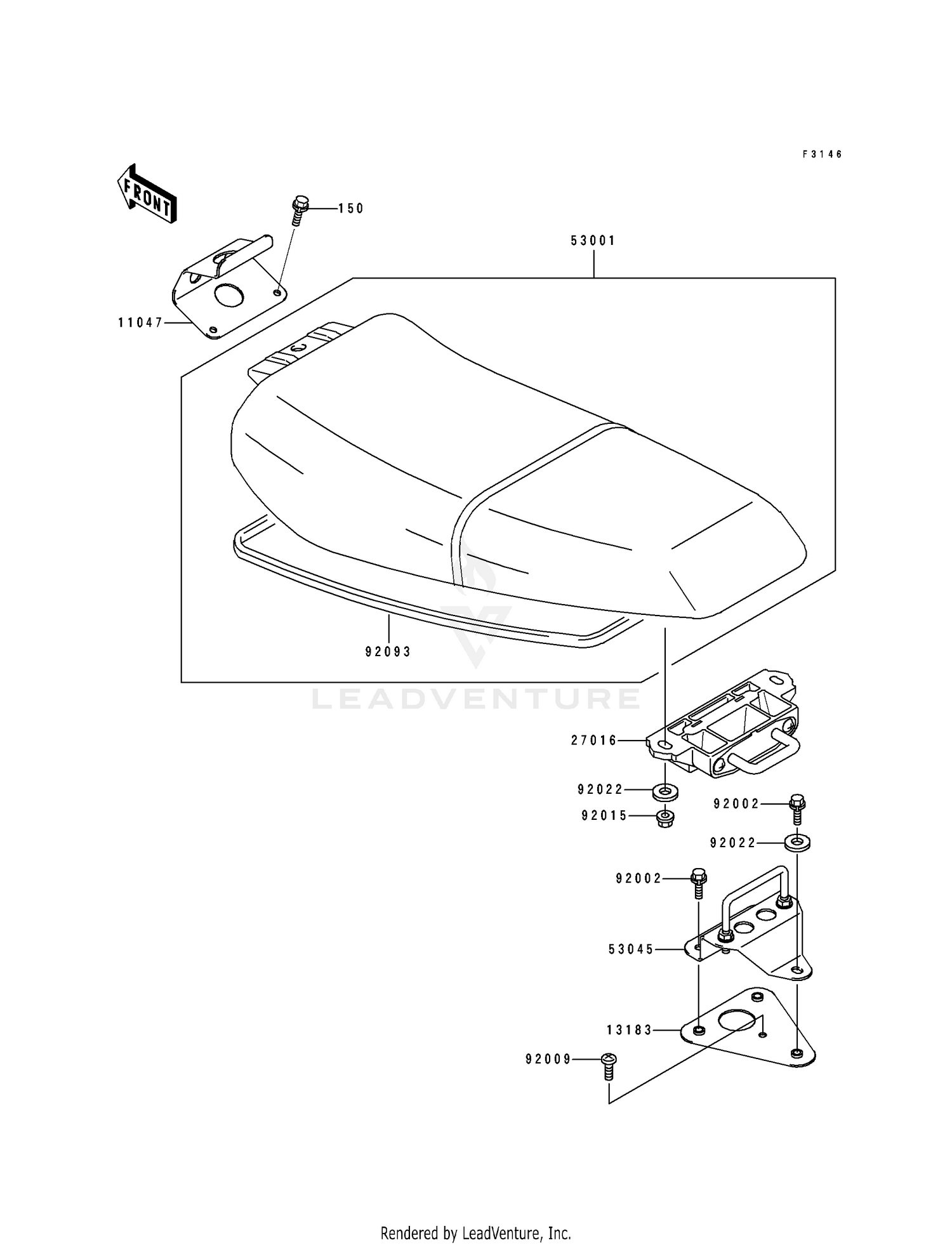

| Ref | Part Number | Description |
|---|
| 11047 |
11047-3791 |
BRACKET,SEAT,FR Price: $48.84 |
| 13183 |
13271-3796 |
PLATE,SEAT LOCK HOOK This part replaces 13183-3820. Price: $21.54 |
| 27016 |
27016-3731 |
LOCK-ASSY,SEAT Price: $106.50 |
| 53001 |
53001-3723-LR |
SEAT-ASSY,GREEN This part replaces 53001-3716-LR. Price: $370.21 |
| 53045 |
53045-3706 |
HOOK-ASSY,SEAT LOCK Price: $108.49 |
| 92002 |
92002-3728 |
BOLT,6X16 Price: $4.69 |
| 92009 |
92009-3789 |
SCREW,5X16 Price: $2.97 |
| 92015 |
92015-3767 |
NUT,6MM Price: $4.69 |
| 92022 |
92022-3710 |
WASHER,6.5X20X1.5 Price: $3.65 |
| 92093 |
92093-3735 |
SEAL,SEAT Price: $22.27 |
