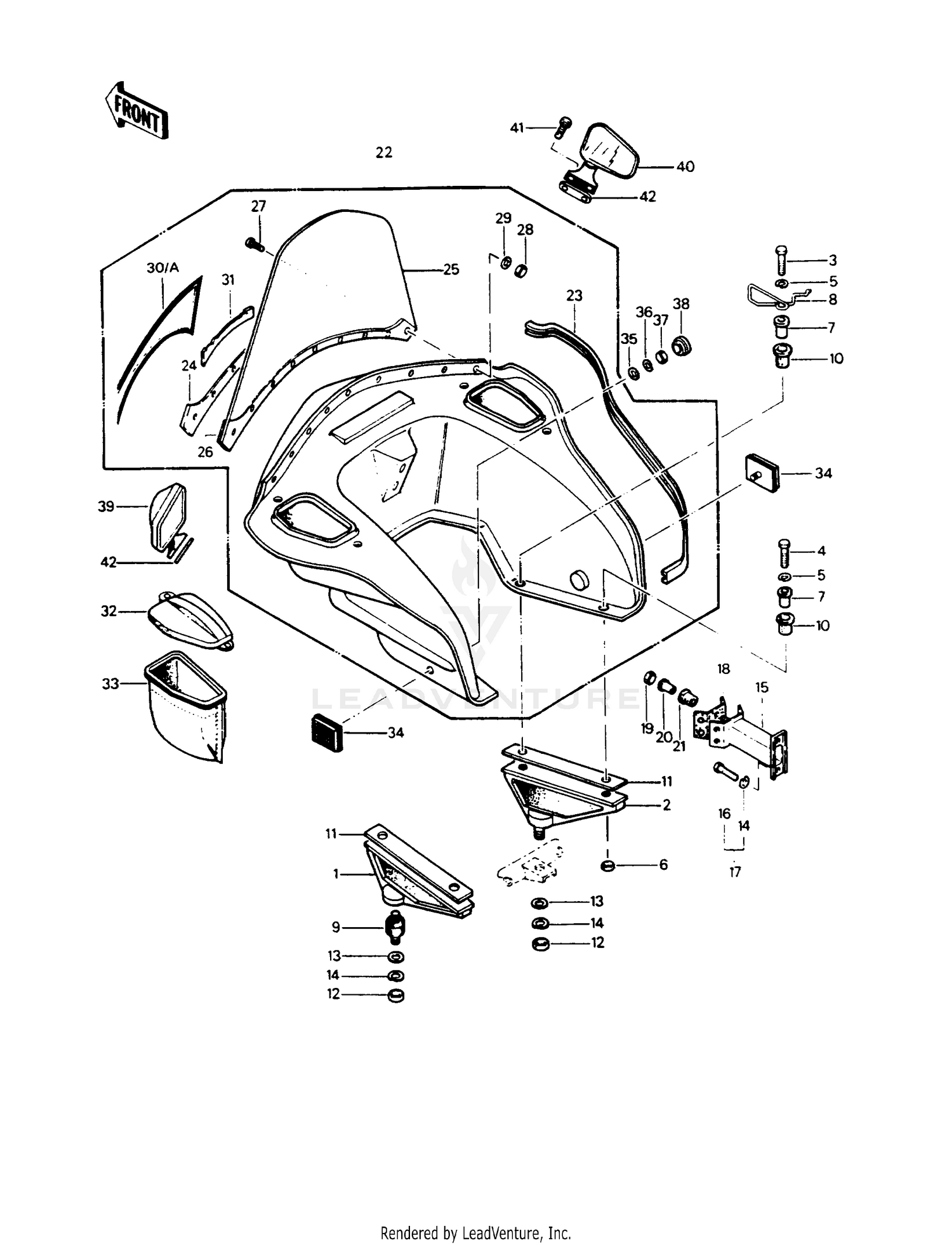

| Ref | Part Number | Description |
|---|
| 1 |
11048-1470 |
BRACKET,COWLING,LH This part replaces 11034-4144. Price: $159.02 |
| 2 |
11048-1471 |
BRACKET,COWLING,RH This part replaces 11034-4143. Price: $159.02 |
| 3 |
114N0830 |
BOLT-SMALL,8X30 Price: $3.77 |
| 4 |
114N0835 |
BOLT HEX HEAD Price: $0.81 |
| 5 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 6 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 7 |
92027-4015 |
COLLAR Price: $10.65 |
| 8 |
92037-4005 |
CLAMP Price: $37.94 |
| 9 |
92075-4013 |
DAMPER,RUBBER Price: $18.75 |
| 10 |
92075-4020 |
DAMPER Price: $2.91 |
| 11 |
92075-4033 |
DAMPER,COWLING BRACKE Price: $8.60 |
| 12 |
350BA1000 |
NUT Price: $4.70 |
| 13 |
411AA0800 |
WASHER-PLAIN,8MM This part replaces 411B0800. Price: $0.96 |
| 14 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 15 |
11034-4089 |
BRACKET,COWLING,FR Price: $125.26 |
| 16 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 114G0816. Price: $0.70 |
| 17 |
183BA0816 |
BOLT-UPSET-WS-SMALL,8X16 This part replaces 183G0816. Price: $4.38 |
| 18 |
92075-1179 |
DAMPER,COWLING FITT Price: $13.71 |
| 19 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 20 |
92027-4015 |
COLLAR Price: $10.65 |
| 21 |
92075-4020 |
DAMPER Price: $2.91 |
| 22 |
55027-4003-8C |
COWLING-ASSY,JET WHTE Price: $1,595.30 |
| 23 |
53044-4001 |
TRIM Price: $50.77 |
| 24 |
13169-4014 |
PLATE,WINDSHIELD Price: $52.96 |
| 25 |
39154-4003 |
WINDSHIELD Price: $380.53 |
| 26 |
56042-4003 |
ADHESIVE,WINDSHIELD Price: $5.56 |
| 27 |
92009-4005 |
SCREW,PLASTIC 5X28 Price: $1.89 |
| 28 |
92015-4014 |
NUT,HEX PLASTIC 5MM Price: $1.30 |
| 29 |
92022-4015 |
WASHER PL PLASTIC 5MM Price: $0.44 |
| 30 |
56027-4056 |
PATTERN, FAIRING Price: $11.78 |
| 30A |
56027-4055 |
PATTERN,FAIRING Price: $11.58 |
| 31 |
56014-4011 |
EMBLEM Price: $16.90 |
| 32 |
14025-4013 |
COVER Price: $16.89 |
| 33 |
56008-4003 |
BAG Price: $45.40 |
| 34 |
28012-1003 |
REFLECTOR-REFLEX Price: $22.09 |
| 35 |
410AA0500 |
WASHER-PLAIN-SMALL This part replaces 411B0500. Price: $0.47 |
| 36 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 37 |
311AA0500 |
NUT-HEX,5MM This part replaces 311B0500. Price: $0.47 |
| 38 |
92074-027 |
PLUG,25X2.5 Price: $9.82 |
| 39 |
56001-4002 |
MIRROR-ASSY Price: $60.50 |
| 40 |
56001-4003 |
MIRROR-ASSY Price: $73.82 |
| 41 |
92009-4006 |
SCREW Price: $0.29 |
