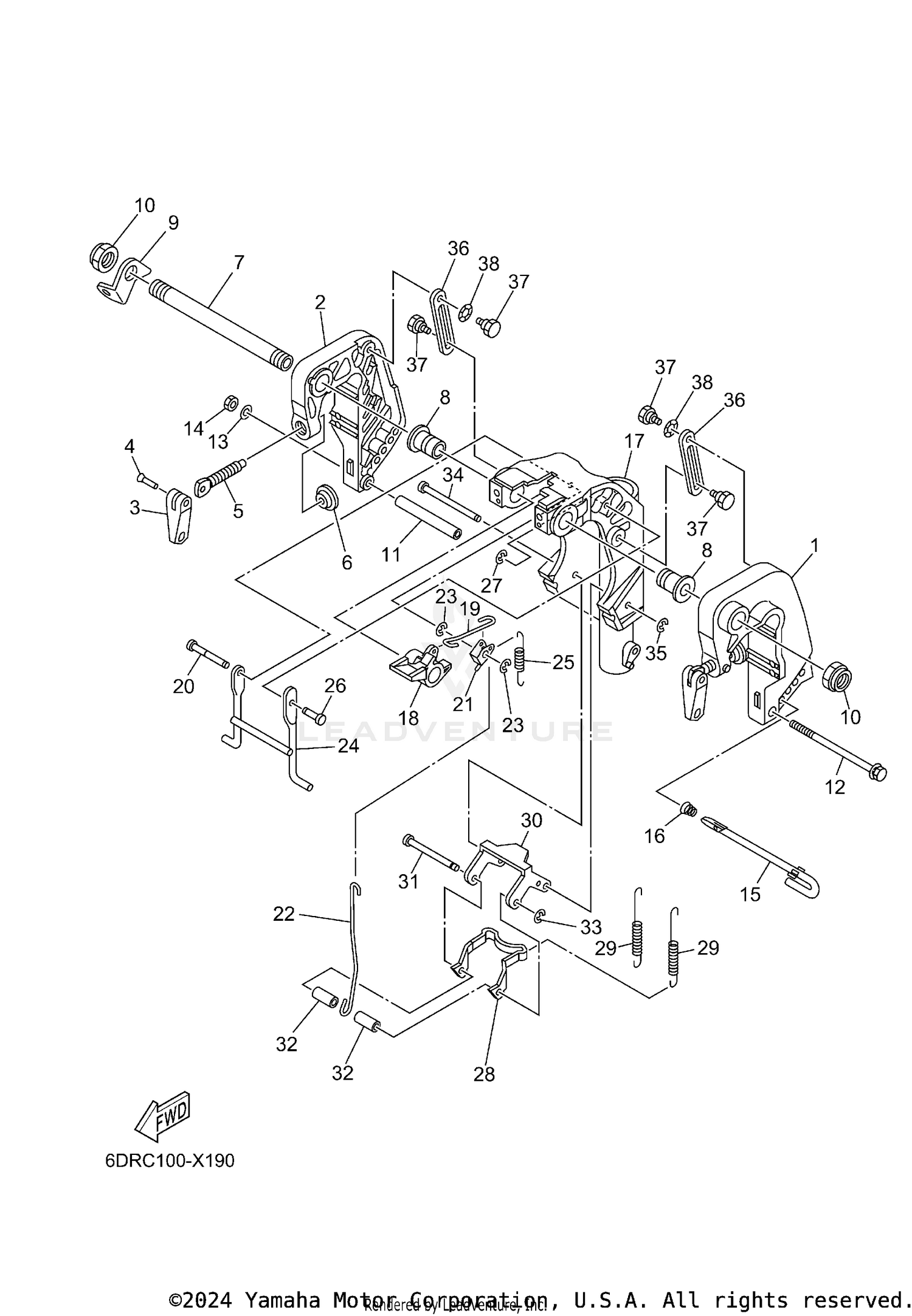

| Ref | Part Number | Description |
|---|
| 3 |
6E0-43118-01-00 |
HANDLE, TRANSOM CLAMP Price: $8.95 |
| 4 |
90243-04M01-00 |
PIN Price: $5.95 |
| 5 |
6L2-43116-00-00 |
SCREW, TRANSOM CLAMP This part replaces 6E7-43116-00-00. Price: $38.10 |
| 6 |
648-43114-01-00 |
PAD, TRANSOM CLAMP Price: $14.20 |
| 7 |
63W-43131-01-00 |
BOLT, CLAMP BRACKET Price: $83.70 |
| 8 |
90386-22MA4-00 |
BUSH Price: $9.10 |
| 9 |
66R-43113-00-00 |
PLATE, CLAMP BRACKET Price: $11.40 |
| 11 |
90387-06369-00 |
COLLAR Price: $10.60 |
| 12 |
90119-06325-00 |
BOLT, WITH WASHER This part replaces 90101-06M18-00. Price: $51.75 |
| 13 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 14 |
95380-06700-00 |
NUT Price: $9.49 |
| 15 |
6L2-43160-01-00 |
TILT ROD ASSY Price: $52.50 |
| 16 |
90502-10M07-00 |
SPRING, CONICAL Price: $3.55 |
| 18 |
6DR-43631-00-00 |
LEVER, TILT Price: $17.70 |
| 19 |
6DR-43616-00-00 |
ROD, TILT LOCK Price: $6.15 |
| 20 |
68T-43646-00-00 |
SHAFT, LEVER Price: $10.10 |
| 21 |
6DR-43641-00-00 |
LEVER, TILT Price: $4.30 |
| 22 |
6AH-43617-00-00 |
ROD, TILT LOCK Price: $10.70 |
| 23 |
99080-05600-00 |
CIRCLIP (93430-05027-00) Price: $9.49 |
| 24 |
6AH-43350-00-00 |
RECEIVER ASSY Price: $82.15 |
| 26 |
63V-43191-00-00 |
SHAFT, STOPPER Price: $7.90 |
| 27 |
99080-05600-00 |
CIRCLIP (93430-05027-00) Price: $9.49 |
| 28 |
6AH-43614-00-00 |
PLATE, TILT LOCK Price: $57.10 |
| 30 |
6AH-43615-00-00 |
PLATE, TILT LOCK Price: $29.25 |
| 31 |
68T-43611-00-00 |
SHAFT, TILT LOCK Price: $7.40 |
| 32 |
90387-06138-00 |
COLLAR Price: $3.55 |
| 33 |
99080-04600-00 |
CIRCLIP This part replaces 93430-04M03-00. Price: $1.99 |
| 34 |
68T-43659-00-00 |
SHAFT, REVERSE LOCK Price: $10.10 |
| 35 |
99080-05600-00 |
CIRCLIP (93430-05027-00) Price: $9.49 |
| 36 |
6AH-43627-00-00 |
STOPPER Price: $8.95 |
| 37 |
90109-06M84-00 |
BOLT Price: $4.35 |
