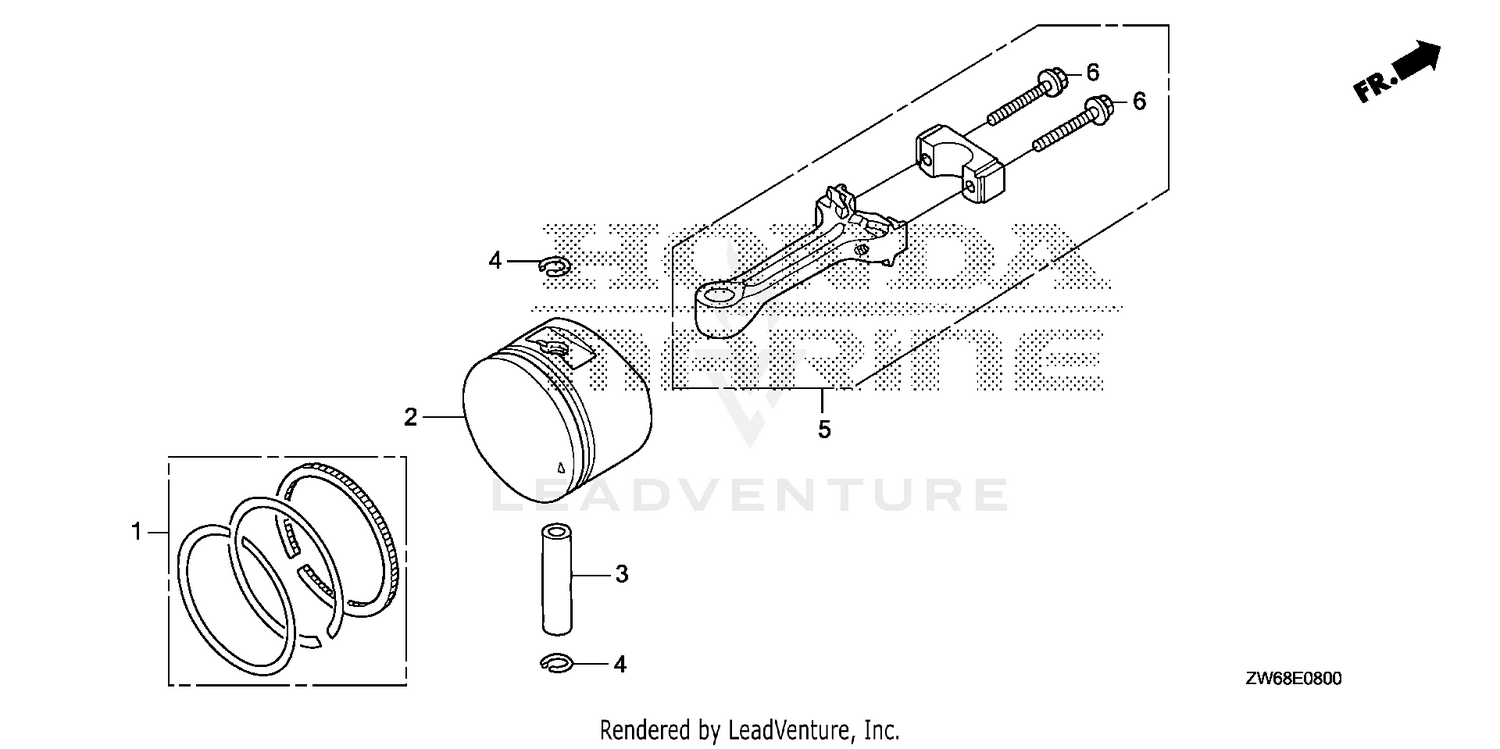

| Ref | Part Number | Description |
|---|
| 1 |
13010-ZW6-000 |
RING SET, PISTON (STD) Price: $20.38 |
| 2 |
13101-ZDH-000 |
PISTON (STD) This part replaces 13101-ZW6-010. Price: $25.02 |
| 3 |
13111-GS7-000 |
SEE PART DETAILS - PRI; PIN, PISTON Price: $13.88 |
| 4 |
13115-147-000 |
CLIP, PISTON PIN (10MM) Price: $2.78 |
| 5 |
13200-ZN4-010 |
ROD ASSY., CONNECTING Price: $76.82 |
| 500 |
509001275 |
Radiator Hose In Price: $15.99 |
| 520 |
293650264 |
Norma Spring Clamp Price: $4.49 |
| 600 |
509001013 |
Engine Outlet Hose Price: $18.49 |
| 620 |
509000045 |
Oetiker Gear Clamp 36.1MM Price: $8.49 |
| 720 |
293650264 |
Norma Spring Clamp Price: $4.49 |
| 1200 |
509001083 |
Coolant Tank Hose Price: $14.99 |
| 1205 |
219704421 |
Protector Tube 32 Mm 1000Mm Long Price: $27.99 |
| 1210 |
293650099 |
Crimp Clamp Price: $4.39 |
| 1220 |
509001035 |
Hose Price: $24.49 |
| 1230 |
293650046 |
Oetiker Clamp Price: $2.99 |
| 1240 |
293650046 |
Oetiker Clamp Price: $2.99 |
| 1250 |
509001041 |
Oetiker Clamp Price: $2.09 |
| 1275 |
293650046 |
Oetiker Clamp Price: $2.99 |
| 2000 |
509001033 |
Cooling Tank Price: $93.99 |
| 2100 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm Price: $124.99 |
| 2105 |
503195447 |
Protector Tube Price: $13.99 |
| 2250 |
509000180 |
Radiator Pressure Cap Price: $14.99 |
| 2500e |
293450268 |
Insert M5 X 0.8 Price: $2.09 |
| 2510 |
512061214 |
Protector Price: $2.19 |
| 2600 |
509001049 |
Clamp Price: $4.69 |
| 2700 |
250000742 |
Torx Screw M5 X 14 Price: $1.49 |
| 3010 |
293650099 |
Crimp Clamp Price: $4.39 |
| 3075 |
250100208 |
Panel Nut M6 X 1.0 Price: $1.49 |
| 3100 |
509001350 |
Hose Radiator In This part replaces 509001085. Price: $13.99 |
| 3110 |
293650141 |
Oetiker Clamp Price: $4.39 |
| 3120 |
509001084 |
Hose Radiator Out Price: $14.99 |
| 3150 |
207562544 |
Hex. Flange Screw M6 X 25 Price: $1.69 |
| 3300 |
509001057 |
Front Radiator Price: $179.99 |
| 3325 |
414227300 |
Clip Price: $1.69 |
| 3350 |
509001114 |
Fan Price: $159.99 |
| 3360 |
509001023 |
Central Radiator Support Price: $19.49 |
| 3370 |
509001024 |
Lower Radiator Support Price: $4.19 |
| 3375 |
390909100 |
Avex Rivet Price: $0.30 |
| 3390 |
293900100 |
Bushing Price: $7.79 |
| 3395 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip Price: $1.99 |
| 4050 |
250200082 |
Flat Washer Price: $0.44 |
