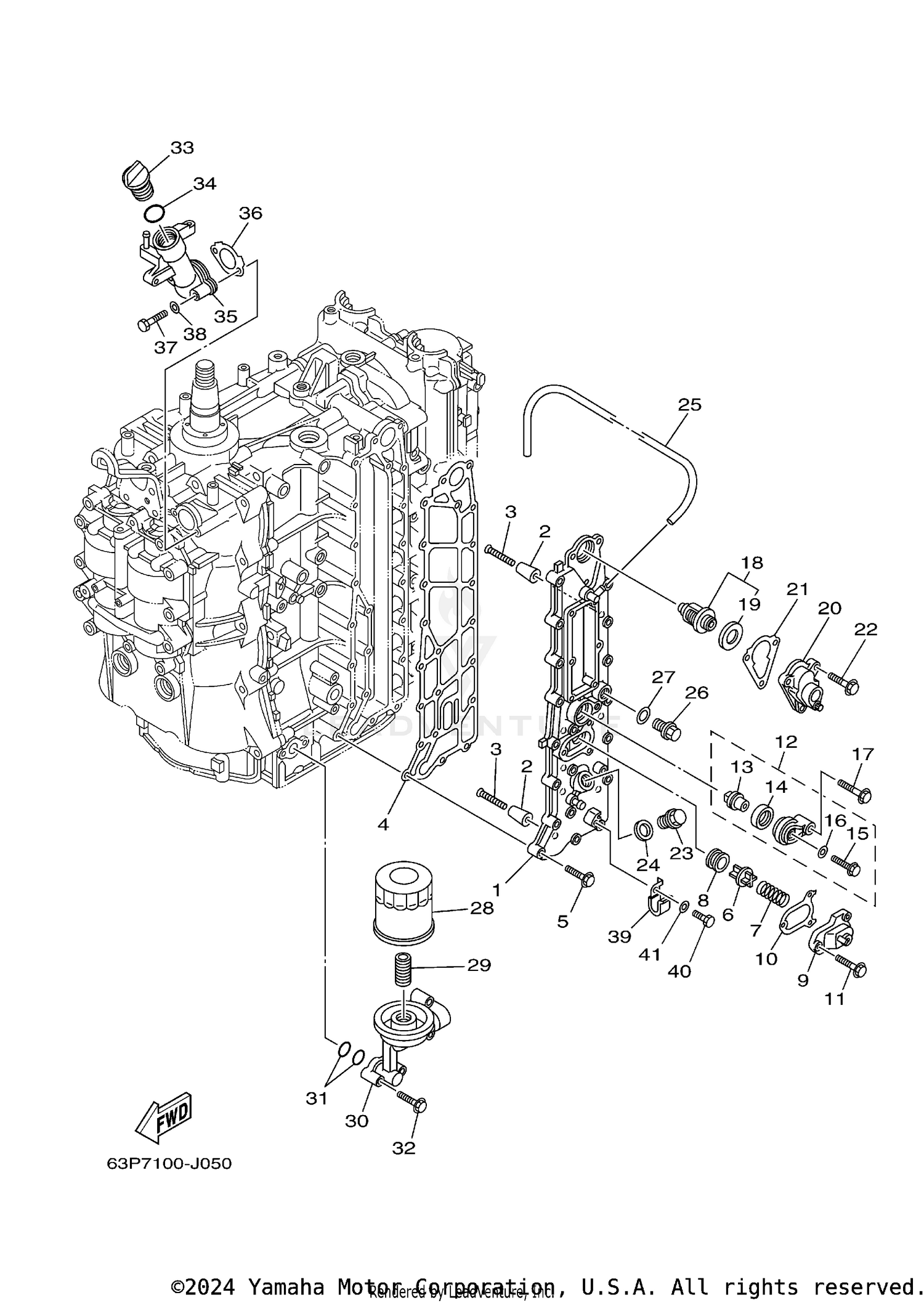

| Ref | Part Number | Description |
|---|
| 1 |
63P-41113-04-9S |
OUTER COVER, EXHAUST This part replaces 63P-41113-03-9S. Price: $327.50 |
| 2 |
68T-11325-00-00 |
ANODE Price: $11.50 |
| 3 |
90151-05M05-00 |
SCREW, COUNTERSUNK Price: $3.20 |
| 4 |
63P-41114-A3-00 |
GASKET, EXHAUST OUTER COVER This part replaces 63P-41114-A1-00. Price: $32.60 |
| 5 |
90119-06MA4-00 |
BOLT, WITH WASHER Price: $4.40 |
| 6 |
60H-12416-00-00 |
VALVE, PRESSURE CONTROL This part replaces 6G5-12416-00-00. Price: $13.75 |
| 7 |
90501-16M11-00 |
SPRING, COMPRESSION Price: $7.60 |
| 8 |
90480-20M05-00 |
GROMMET Price: $4.40 |
| 9 |
67F-1246A-A0-9S |
COVER 1 This part replaces 67F-1246A-01-9S. Price: $25.50 |
| 10 |
67F-12435-A0-00 |
GASKET Price: $6.75 |
| 11 |
90119-06MA2-00 |
BOLT, WITH WASHER Price: $3.20 |
| 12 |
69J-11301-02-00 |
ANODE COVER ASSY This part replaces 69J-11301-00-00. Price: $45.35 |
| 14 |
67F-11328-01-00 |
GROMMET, ANODE This part replaces 67F-11328-00-00. Price: $3.80 |
| 15 |
90105-06M07-00 |
BOLT, FLANGE Price: $2.30 |
| 16 |
90430-06M03-00 |
GASKET Price: $3.65 |
| 17 |
97E75-08540-00 |
BOLT, HEXAGON W/W This part replaces 97575-08540-00. Price: $5.35 |
| 18 |
67F-12411-01-00 |
THERMOSTAT Price: $45.50 |
| 19 |
67F-12412-00-00 |
SEAL, THERMOSTAT Price: $8.20 |
| 20 |
63P-1240H-01-9S |
COVER ASSEMBLY Price: $27.15 |
| 21 |
63P-12414-00-00 |
GASKET, COVER Price: $8.65 |
| 22 |
90119-06MA4-00 |
BOLT, WITH WASHER Price: $4.40 |
| 23 |
90340-18M09-00 |
PLUG, STRAIGHT SCREW Price: $28.10 |
| 24 |
90430-18130-00 |
GASKET Price: $9.49 |
| 25 |
90445-10027-00 |
HOSE (L670) Price: $16.70 |
| 26 |
90340-14M06-00 |
PLUG, STRAIGHT SCREW Price: $14.20 |
| 27 |
90430-14115-00 |
GASKET Price: $3.00 |
| 28 |
69J-13440-05-00 |
ELEMENT ASSY, OIL CLEANER This part replaces 69J-13440-01-00. Price: $31.05 |
| 29 |
69J-12858-00-00 |
BOLT, UNION Price: $15.55 |
| 30 |
63P-13446-01-00 |
CONNECTOR This part replaces 63P-13446-00-9S. Price: $140.65 |
| 31 |
93210-19MJ1-00 |
O-RING Price: $5.55 |
| 32 |
97E75-06540-00 |
BOLT, HEXAGON W/W This part replaces 97575-06540-00. Price: $5.65 |
| 33 |
6G8-15363-00-00 |
PLUG, OIL Price: $13.50 |
| 34 |
93210-24235-00 |
O-RING This part replaces 93210-24M79-00. Price: $8.49 |
| 35 |
63P-15319-00-9S |
JOINT Price: $45.85 |
| 36 |
63P-15364-A0-00 |
GASKET, OIL PLUG Price: $4.50 |
| 37 |
97080-06045-00 |
BOLT (6G8) This part replaces 97095-06045-00. Price: $4.90 |
| 38 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 39 |
90462-06013-00 |
CLAMP Price: $7.90 |
| 40 |
97080-06012-00 |
BOLT This part replaces 97095-06012-00. Price: $2.99 |
