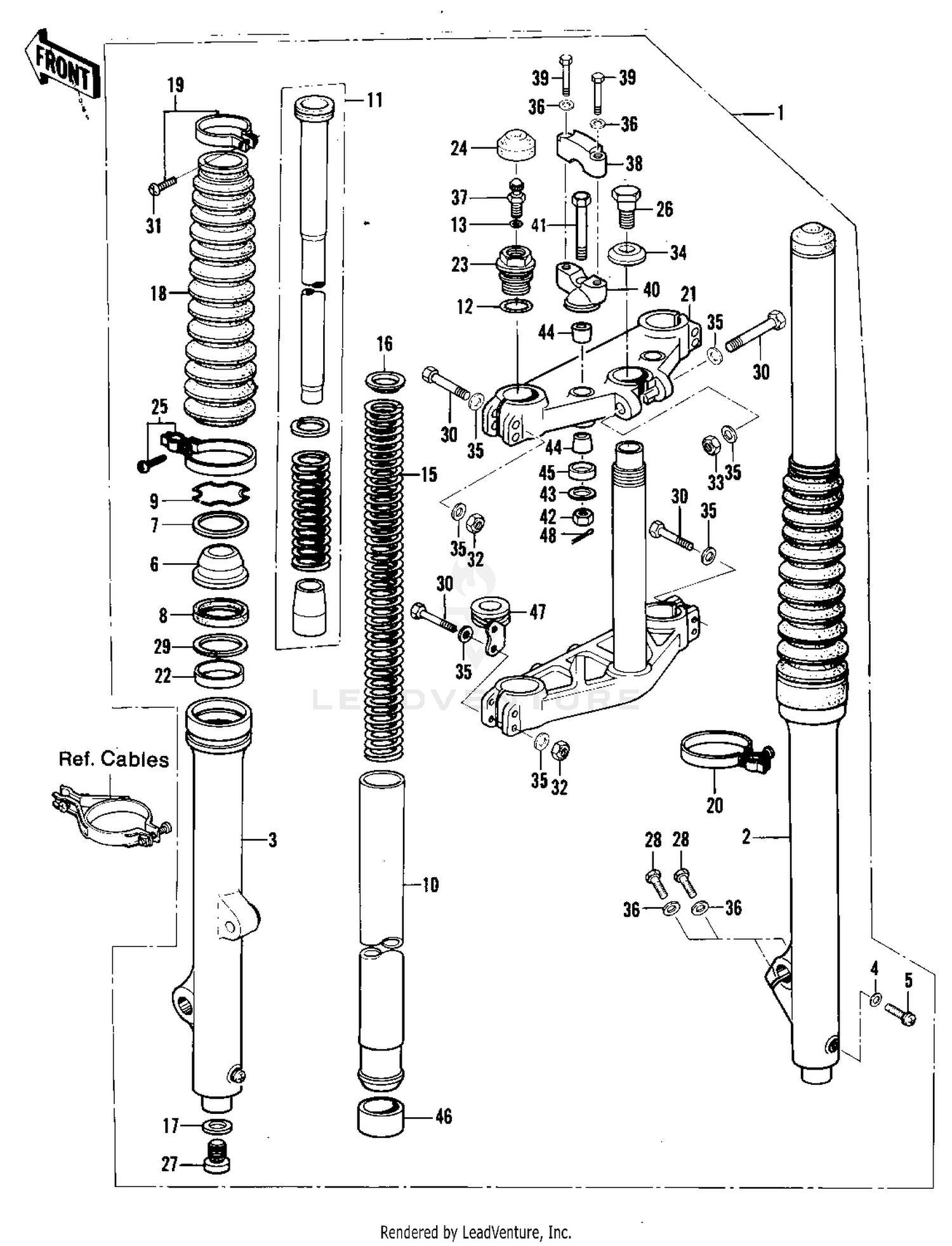

| Ref | Part Number | Description |
|---|
| 2 |
44006-1064 |
TUBE,RH,FORK OUTER Price: $226.37 |
| 3 |
44005-1064 |
TUBE,LH,FORK OUTER Price: $244.85 |
| 4 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 5 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 6 |
92093-1035 |
DUST SHIELD,FORK OUTR Price: $14.45 |
| 7 |
32099-1013 |
CASE,DUST SHIELD Price: $6.15 |
| 8 |
92049-1042 |
OIL SEAL,FORK OUT TUB Price: $26.55 |
| 9 |
92033-1047 |
RING-SNAP,FORK Price: $6.46 |
| 10 |
44013-1053 |
TUBE-FORK INNER Price: $355.20 |
| 11 |
44022-1052 |
CYLINDER-FORK Price: $104.30 |
| 14 |
44037-1065 |
STEM,STEERING Price: $458.19 |
| 15 |
44026-1042 |
SPRING,FORK INNER Price: $41.80 |
| 16 |
44028-1003 |
GUIDE-FORK SPRING Price: $11.28 |
| 17 |
11009-1127 |
GASKET,FORK CYLINDER BOLT Price: $5.18 |
| 18 |
49006-1058 |
BOOT,FORK,LIME GREEN Price: $51.82 |
| 19 |
92072-1046 |
BAND,BOOT Price: $10.04 |
| 20 |
92072-1025 |
CLAMP,BOOT,R.H Price: $8.22 |
| 21 |
44039-1040 |
BRACKET-UPPER Price: $187.56 |
| 22 |
44065-1091 |
BUSHING-FRONT FORK,OU Price: $25.96 |
| 23 |
44029-1008 |
CAP,FORK TOP Price: $52.55 |
| 24 |
44029-1009 |
CAP,RUBBER,FORK TOP Price: $10.50 |
| 25 |
92072-1026 |
CLAMP,BOOT,L.H Price: $12.85 |
| 26 |
44041-065 |
BOLT,FORK TOP Price: $27.12 |
| 27 |
92001-1309 |
BOLT,FORK CYLINDER Price: $7.62 |
| 28 |
115BA0825 |
BOLT-SMALL-UPSET,8X25 This part replaces 115G0825. Price: $5.42 |
| 29 |
92022-1262 |
WASHER,FORK OUTER PIPE Price: $8.60 |
| 30 |
92001-1398 |
BOLT FLANGED 8X55 Price: $4.04 |
| 31 |
220AA0420 |
SCREW-PAN-CROS,4X20 This part replaces 220B0420. Price: $2.67 |
| 32 |
311BA0800 |
NUT,8MM This part replaces 311G0800. Price: $4.46 |
| 33 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 34 |
44043-052 |
WASHER Price: $8.01 |
| 35 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 36 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 37 |
16126-1003 |
VALVE ASSY,AIR Price: $41.71 |
| 38 |
46012-1014 |
HOLDER-HANDLE Price: $12.13 |
| 39 |
115BA0835 |
BOLT,SMALL UPSET This part replaces 115G0835. Price: $4.87 |
| 40 |
46012-1012 |
HOLDER HANDLE Price: $27.78 |
| 41 |
92001-1436 |
BOLT Price: $8.54 |
| 42 |
92015-1142 |
NUT Price: $5.46 |
| 43 |
92022-1262 |
WASHER,FORK OUTER PIPE Price: $8.60 |
| 44 |
92075-1307 |
DAMPER,RUBBER Price: $5.27 |
| 45 |
11012-1165 |
COVER-DAMPER RUBBER Price: $1.11 |
| 46 |
92028-1126 |
BUSHING,FORK PIPE Price: $49.26 |
