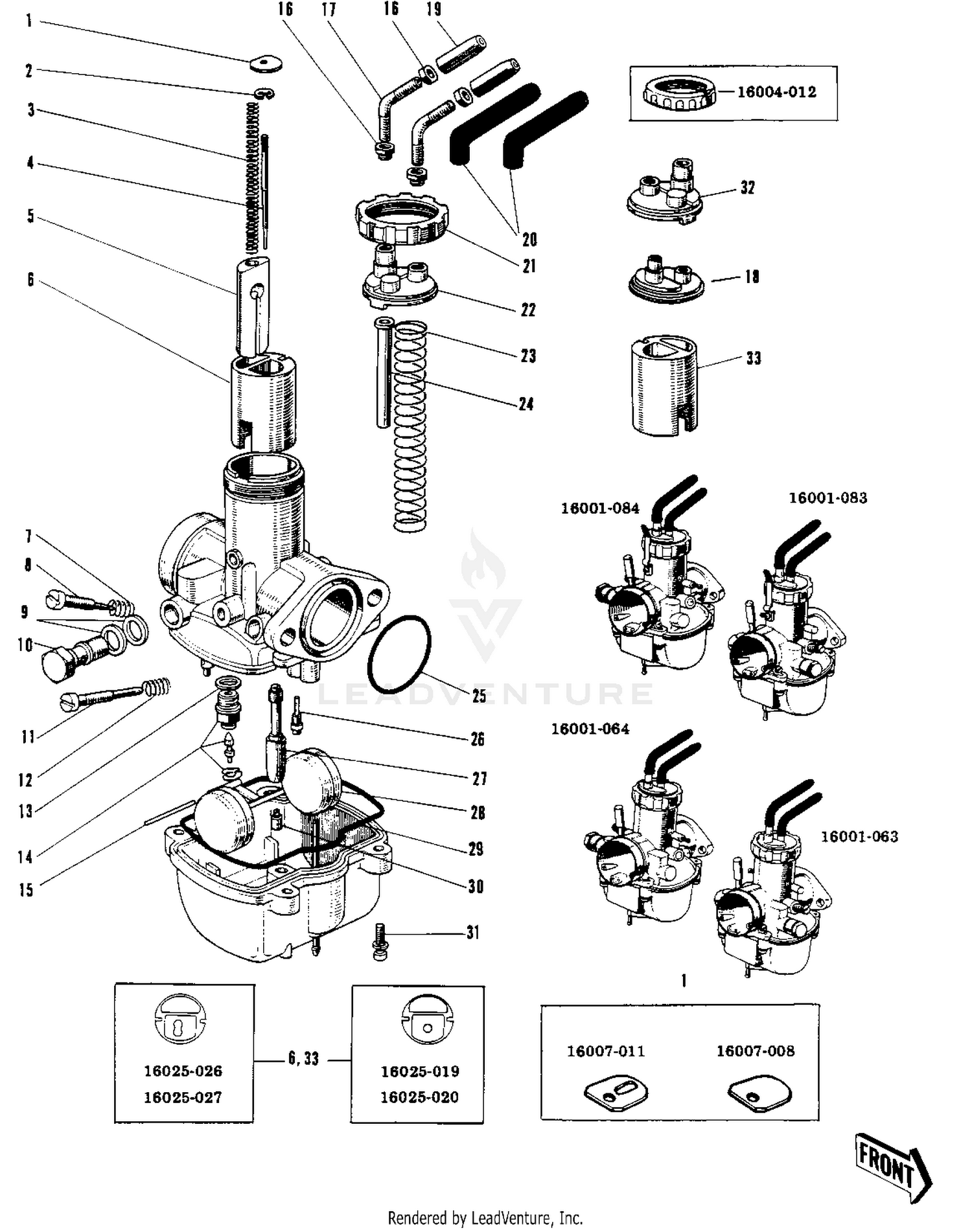

| Ref | Part Number | Description |
|---|
| 1 |
16007-011 |
SPRING SEAT THRTL VLV Price: $2.25 |
| 2 |
16008-010 |
CIRCLIP Price: $9.21 |
| 3 |
16040-003 |
SPRING AIR SHUTTER Price: $1.05 |
| 5 |
16041-003 |
SHUTTER AIR Price: $5.70 |
| 7 |
16022-005 |
SPRING THR STOP SCREW Price: $8.68 |
| 8 |
16021-007 |
SCREW THROTTLE STOP Price: $5.66 |
| 9 |
11009-1146 |
GASKET,10,2X15X1.5T Price: $5.11 |
| 11 |
16014-007 |
SCREW PILOT AIR ADJST Price: $5.84 |
| 12 |
16022-010 |
SPRING,THROTTLE ADJST Price: $9.44 |
| 13 |
16029-005 |
WASHER FLOAT VLV SEAT Price: $0.69 |
| 14 |
16030-006 |
FLOAT VALVE ASSY Price: $12.53 |
| 15 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 16 |
16003-004 |
NUT CABLE ADJUST LOCK Price: $7.34 |
| 17 |
16077-001 |
CABLE GUIDE Price: $9.02 |
| 18 |
16005-019 |
TOP MIXING CHAMBER Price: $12.72 |
| 19 |
16002-004 |
CABLE ADJUSTER Price: $10.67 |
| 20 |
16037-003 |
CAP RUBBER Price: $3.30 |
| 22 |
16005-017 |
TOP MIXING CHAMBER RH Price: $6.20 |
| 23 |
16006-011 |
SPRING THROTTLE VALVE Price: $5.81 |
| 25 |
16038-006 |
O RING,MANIFOLD Price: $1.76 |
| 28 |
16031-011 |
FLOAT Price: $77.86 |
| 29 |
16019-009 |
GASKET FLOAT CHAMBER Price: $25.33 |
| 31 |
16033-007 |
SCREW FLOAT CHAMBER Price: $1.05 |
| 32 |
16005-018 |
TOP MIXING CHAMBER LH Price: $5.76 |
| 33 |
16025-020 |
VALVE THROTTLE L.H Price: $14.83 |
