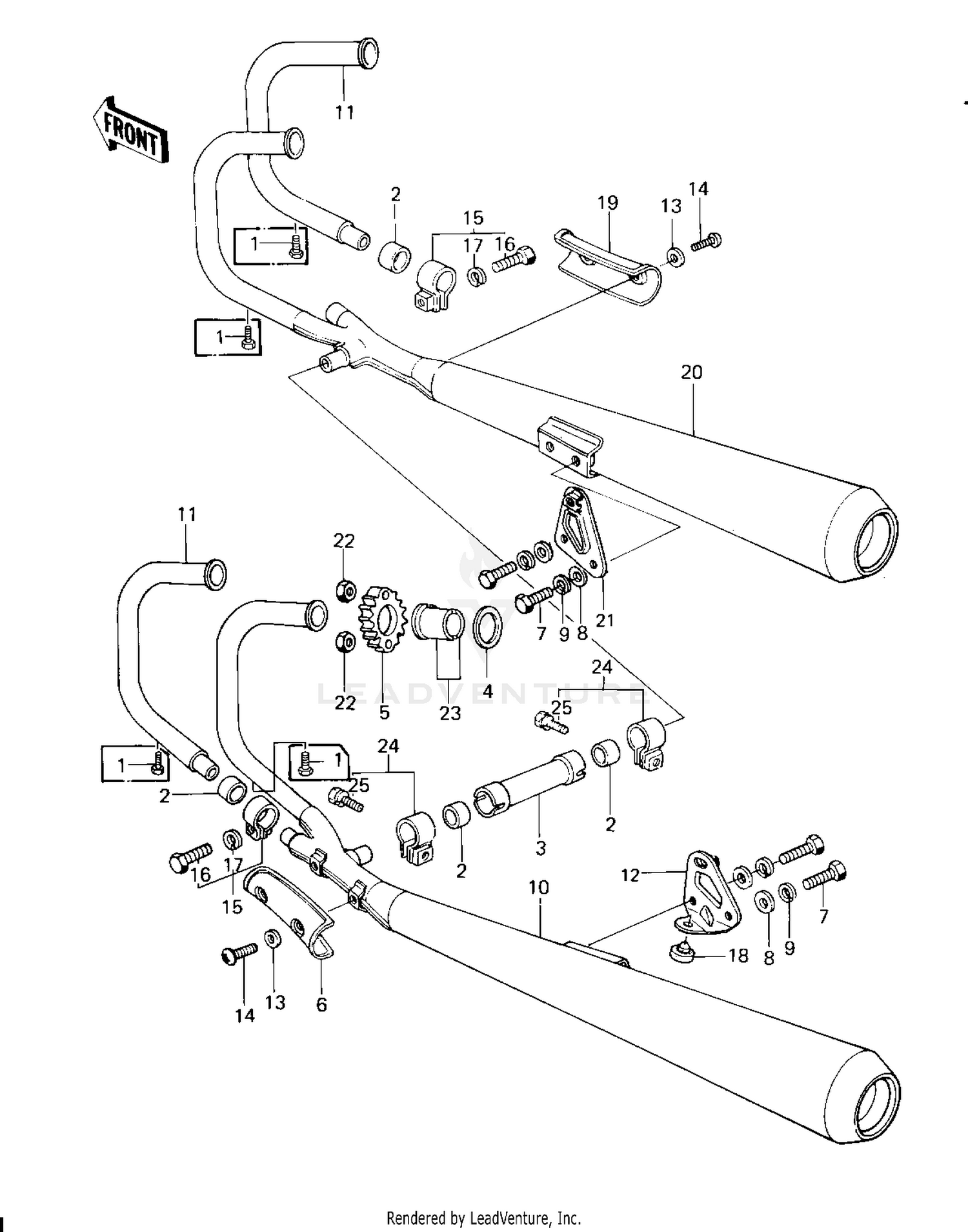

| Ref | Part Number | Description |
|---|
| 1 |
110R0610 |
BOLT (6X10) Price: $3.44 |
| 2 |
11060-1051 |
GASKET,MUFFLER CONNEC Price: $23.41 |
| 3 |
32032-1669 |
PIPE,MUFFLER CONNECTI Price: $27.20 |
| 4 |
11009-1866 |
GASKET,EXHAUST PIPE HOLDER Price: $8.25 |
| 5 |
18069-1006 |
HOLDER,EXHAUST PIPE Price: $27.28 |
| 6 |
14025-1099 |
COVER,MUFFLER,L.H. Price: $55.09 |
| 7 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 115G0816. Price: $0.70 |
| 8 |
411AA0800 |
WASHER-PLAIN,8MM This part replaces 411B0800. Price: $0.96 |
| 9 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 10 |
18001-1002 |
MUFFLER ASSY,L.H Price: $573.71 |
| 11 |
18049-1013 |
PIPE,EXHAUST,#1 Price: $104.50 |
| 11 |
18049-1397 |
PIPE-EXHAUST,#4 Price: $188.97 |
| 12 |
32069-1040 |
BRACKET,MUFFLER,L.H. Price: $28.95 |
| 13 |
411S0600 |
WASHER-PLAIN,6MM This part replaces 411D0600. Price: $2.06 |
| 14 |
220E0608 |
SCREW PAN HEAD 6X8 This part replaces 92011-039. Price: $2.52 |
| 15 |
92037-1220 |
CLAMP,MUFFLER Price: $18.14 |
| 16 |
115BA0825 |
BOLT-SMALL-UPSET,8X25 This part replaces 115G0825. Price: $5.42 |
| 17 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 18 |
92075-015 |
DAMPER Price: $5.00 |
| 19 |
14025-1100 |
COVER,MUFFLER,R.H. Price: $55.09 |
| 20 |
18001-1003 |
MUFFLER ASSY,R.H Price: $597.10 |
| 21 |
32069-1039 |
BRACKET,MUFFLER,R.H. Price: $30.34 |
| 22 |
92017-014 |
NUT,LOCK 6MM Price: $7.51 |
| 23 |
92027-264 |
COLLAR,EXHAUST PIPE Price: $4.73 |
| 24 |
92037-1223 |
CLAMP,PIPE,35MM Price: $16.77 |
