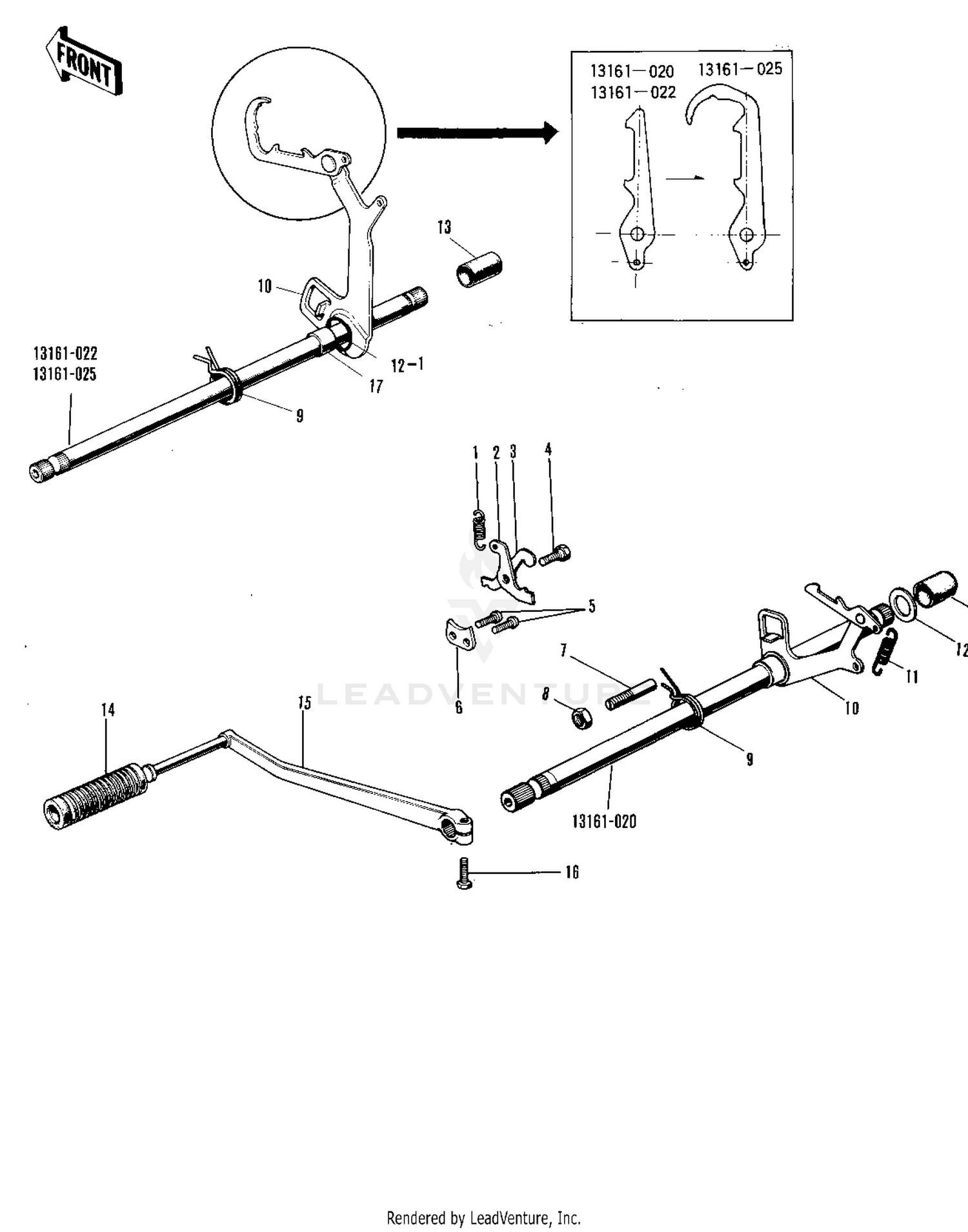

| Ref | Part Number | Description |
|---|
| 1 |
92081-091 |
SPRING-COIL Price: $7.93 |
| 2 |
13168-017 |
LEVER-CHANGE DRUM,B Price: $6.44 |
| 3 |
13168-016 |
LEVER-CHANGE DRUM,A Price: $2.42 |
| 4 |
92011-023 |
SCREW-PAN HEAD Price: $4.04 |
| 5 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 6 |
13169-002 |
PLATE CHNG DRUM PSTN Price: $5.99 |
| 7 |
92043-057 |
PIN CHANGE PEDAL SPRG Price: $8.72 |
| 8 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 9 |
92081-1129 |
SPRING,TENSION Price: $9.43 |
| 10 |
13161-025 |
LEVER ASSY GEAR CHNG Price: $59.46 |
| 10 |
13161-028 |
LEVER ASSY GEAR CHNG Price: $48.41 |
| 11 |
92144-1720 |
SPRING,CHANGE LEVER Price: $4.74 |
| 14 |
92161-1532 |
DAMPER,CHANGE PEDAL This part replaces 13157-004. Price: $6.24 |
| 15 |
13156-045 |
PEDAL GEAR CHANGE This part replaces 13156-032. Price: $59.63 |
| 16 |
112BA0618 |
BOLT-UPSET This part replaces 112G0618. Price: $1.03 |
