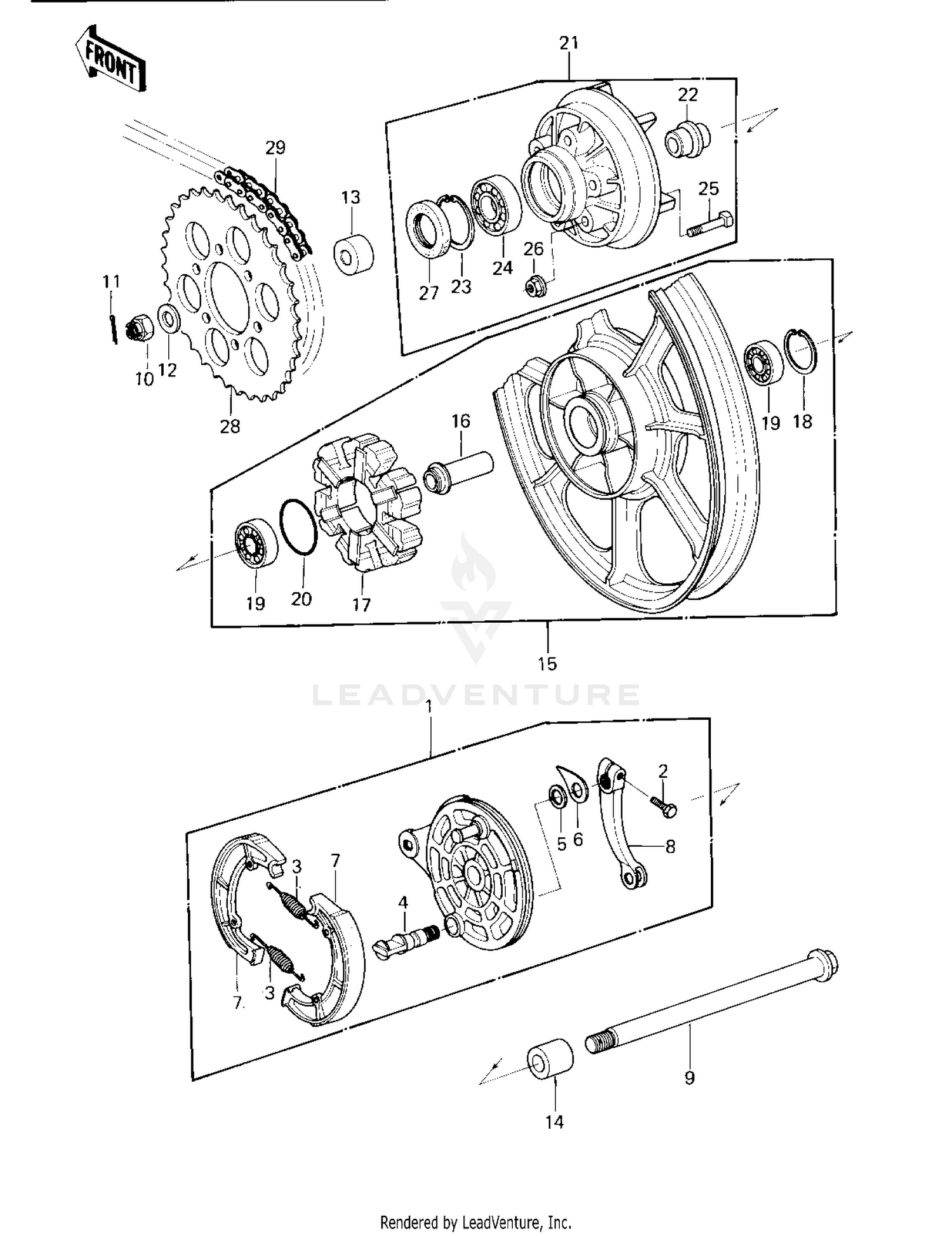

| Ref | Part Number | Description |
|---|
| 1 |
41035-1026 |
PANEL-ASY,RR BRK Price: $329.40 |
| 2 |
114G0828 |
BOLT HEX HEAD 8X28 Price: $5.21 |
| 3 |
41049-012 |
SPRING,BRAKE SHOE Price: $9.49 |
| 4 |
41050-017 |
CAM SHAFT,BRAKE Price: $35.39 |
| 5 |
41051-003 |
DUST SHIELD-BRAKE CAM Price: $4.26 |
| 6 |
41085-004 |
INDICATOR,BRAKE SHOE Price: $14.51 |
| 7 |
41048-1070 |
SHOE-BRAKE This part replaces 42019-012. Price: $51.67 |
| 8 |
41053-1072 |
LEVER-BRAKE CAM This part replaces 42029-039. Price: $65.77 |
| 9 |
41068-1027 |
AXLE,REAR Price: $81.17 |
| 10 |
42045-018 |
NUT,CASTLE,18MM Price: $9.23 |
| 11 |
550AA4035 |
PIN-COTTER,4.0X35 This part replaces 550D4035. Price: $2.17 |
| 12 |
92022-248 |
WASHER,PLAIN,20MM Price: $11.60 |
| 13 |
92027-1211 |
COLLAR,REAR AXLE L.H Price: $7.49 |
| 14 |
92027-1212 |
COLLAR,REAR AXLE,R.H. Price: $6.78 |
| 15 |
41073-1059 |
SOLID WHEEL ASSY,REAR Price: $371.05 |
| 16 |
42010-040 |
COLLAR,RR HUB BEARING Price: $17.81 |
| 17 |
42014-032 |
SHOCK DAMPER Price: $59.73 |
| 18 |
92033-1043 |
RING-SNAP,52MM Price: $8.05 |
| 19 |
601B6304ZZ |
BEARING-BALL,#6304ZZC3 Price: $45.75 |
| 20 |
671B2560 |
O RING,60MM Price: $6.91 |
| 21 |
42033-1012 |
COUPLING ASSY,REAR Price: $135.92 |
| 22 |
42036-1027 |
SLEEVE,REAR COUPLING Price: $17.59 |
| 23 |
92033-1044 |
RING-SNAP,62MM Price: $11.29 |
| 24 |
92045-0110 |
BEARING-BALL,6206-9C3 This part replaces 601B6206. Price: $25.69 |
| 25 |
92001-161 |
BOLT Price: $5.38 |
| 26 |
92015-1415 |
NUT,FLANGED,10MM Price: $4.69 |
| 27 |
92050-027 |
SEAL-OIL,AJN40627 Price: $20.96 |
| 28 |
42041-1054 |
SPROCKET,REAR,38T Price: $117.22 |
