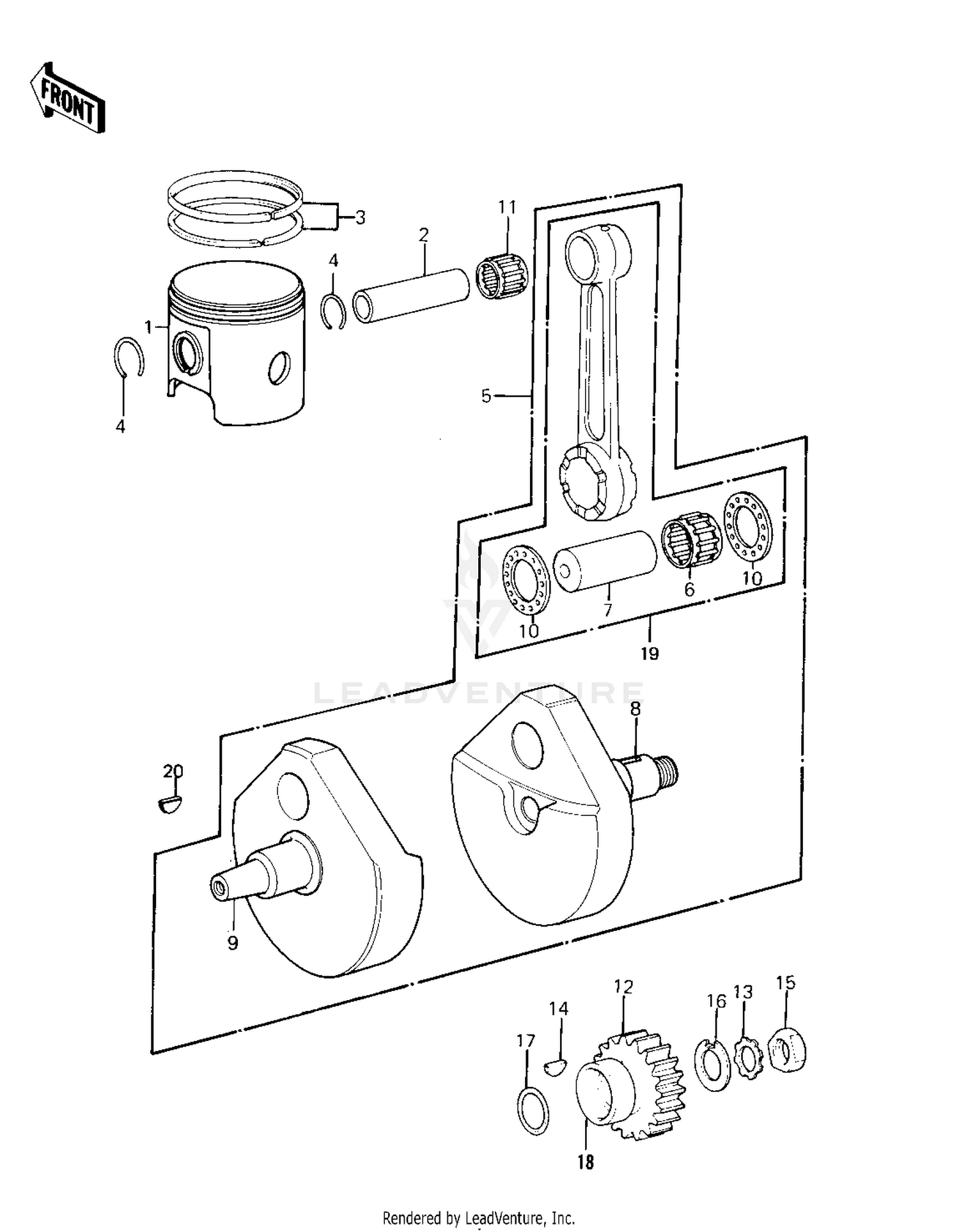

| Ref | Part Number | Description |
|---|
| 1 |
13001-1075 |
PISTON-ENGINE Price: $271.13 |
| 2 |
13002-031 |
PIN-PISTON Price: $35.91 |
| 3 |
13008-5030 |
RING SET,PISTON Price: $124.22 |
| 4 |
92036-008 |
RING-SNAP,PISTON PIN Price: $0.49 |
| 5 |
13031-1031 |
CRANKSHAFT ASSY Price: $628.41 |
| 6 |
13034-1012 |
BEARING N,KT263322EGS Price: $52.55 |
| 7 |
13035-1003 |
PIN,CRANK,12X26X62 Price: $42.63 |
| 8 |
13037-1035 |
CRANKSHAFT,R.H. Price: $231.65 |
| 9 |
13037-1061 |
CRANKSHAFT,L.H. Price: $197.53 |
| 10 |
92026-1346 |
SPACER This part replaces 92026-093. Price: $26.41 |
| 11 |
13033-1055 |
BEARING-SMALL END,KTV Price: $30.91 |
| 13 |
464H1800 |
WASHER,LOCK,18M/M Price: $3.58 |
| 14 |
510A5100 |
KEY-WOODRUFF Price: $2.70 |
| 15 |
92015-019 |
NUT 18MM Price: $7.22 |
| 16 |
92024-015 |
WASHER LOCK 18MM Price: $4.91 |
| 19 |
13044-5011 |
CONNECTING ROD ASSY Price: $133.54 |
