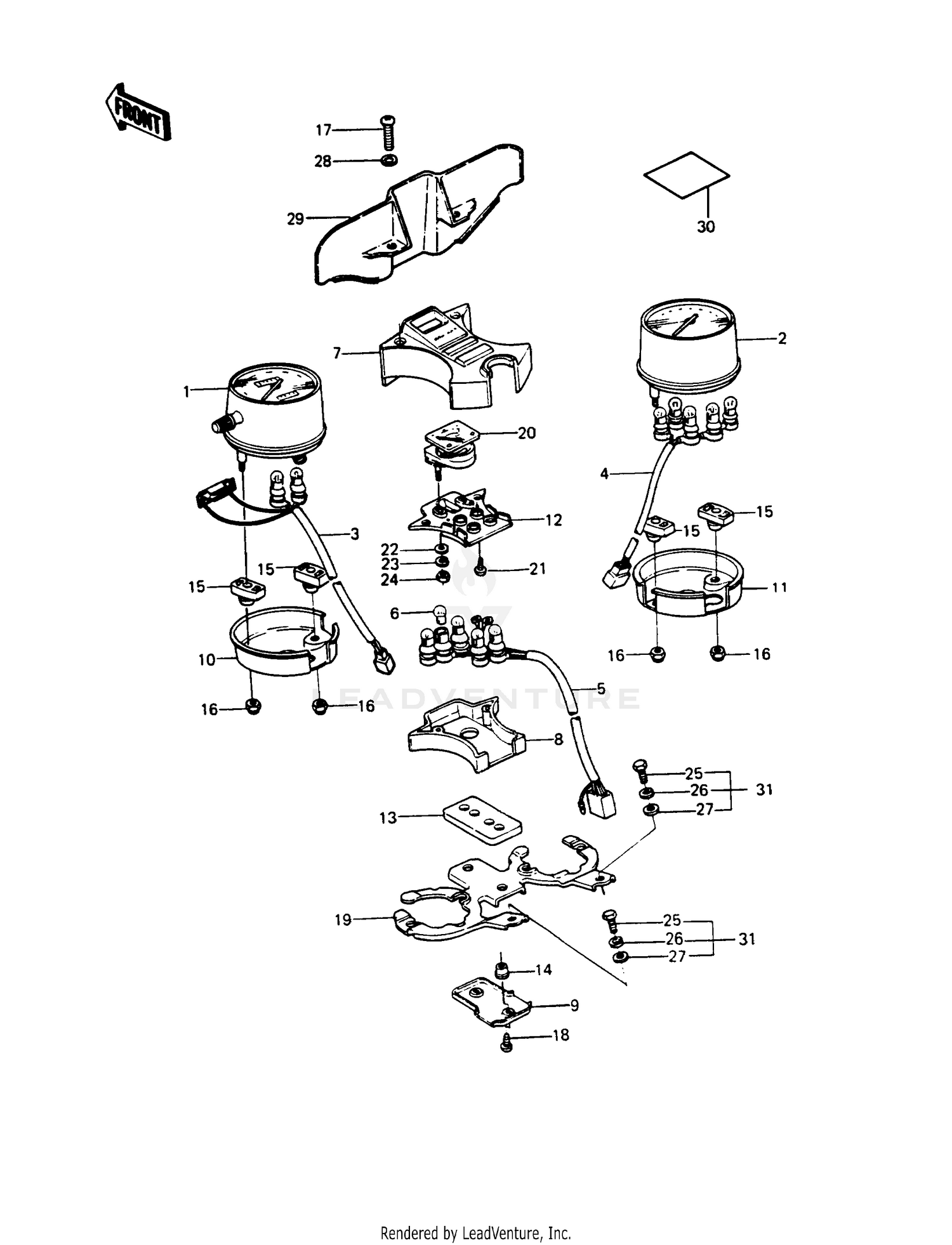

| Ref | Part Number | Description |
|---|
| 1 |
25005-1170 |
SPEEDOMETER,MPH Price: $1,183.08 |
| 2 |
25015-1114 |
TACHOMETER,X1000RPM Price: $737.83 |
| 3 |
23008-1673 |
SOCKET-ASSY,SPEEDOMET This part replaces 23008-1142. Price: $92.85 |
| 4 |
23008-1674 |
SOCKET-ASSY,TACHOMETE This part replaces 23008-1143. Price: $102.21 |
| 5 |
23008-1144 |
SOCKET-ASSY,FUEL METE Price: $78.87 |
| 6 |
92069-1007 |
BULB,12V 3.4W,T10 Price: $5.00 |
| 7 |
25023-4004 |
COVER-METER CASE Price: $87.04 |
| 8 |
14025-4020 |
COVER,PILOT BOX,LWR Price: $34.94 |
| 10 |
14025-4019 |
COVER,SPEEDOMETER Price: $50.69 |
| 11 |
14025-1458 |
COVER,TACHOMETER Price: $50.69 |
| 12 |
13169-1238 |
PLATE,SOCKET Price: $21.47 |
| 13 |
92075-1246 |
DAMPER,PILOT BOX Price: $19.28 |
| 14 |
25019-023 |
DAMPER RUBBER,MET FIT Price: $4.29 |
| 15 |
92075-1101 |
SHOCK DAMPER,METER Price: $8.60 |
| 16 |
322AB0500 |
NUT-CAP,5MM This part replaces 92020-018. Price: $3.35 |
| 17 |
220AB0445 |
SCREW-PAN-CROS This part replaces 220C0445. Price: $3.92 |
| 18 |
92009-1040 |
SCREW,TAPPING,4X10 Price: $3.69 |
| 19 |
25008-4001 |
BRACKET-METER Price: $87.84 |
| 20 |
28011-1027 |
METER,FUEL Price: $135.66 |
| 21 |
92008-012 |
SCREW,TAPPING Price: $4.38 |
| 22 |
410AA0400 |
WASHER-PLAIN-SMALL,4MM This part replaces 410B0400. Price: $0.49 |
| 23 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 24 |
311AA0400 |
NUT-HEX,4MM This part replaces 311B0400. Price: $0.53 |
| 25 |
112BA0614 |
BOLT-UPSET This part replaces 110B0614. Price: $2.10 |
| 26 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 27 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 28 |
410AA0400 |
WASHER-PLAIN-SMALL,4MM This part replaces 410F0400. Price: $0.49 |
| 29 |
25023-4003 |
COVER-METER CASE Price: $11.75 |
| 30 |
56040-1007 |
LABEL-WARNING,BREAK IN CAUTION Price: $6.11 |
| 31 |
187AA0614 |
BOLT-UPSET-WSP This part replaces 187B0614. Price: $0.89 |
