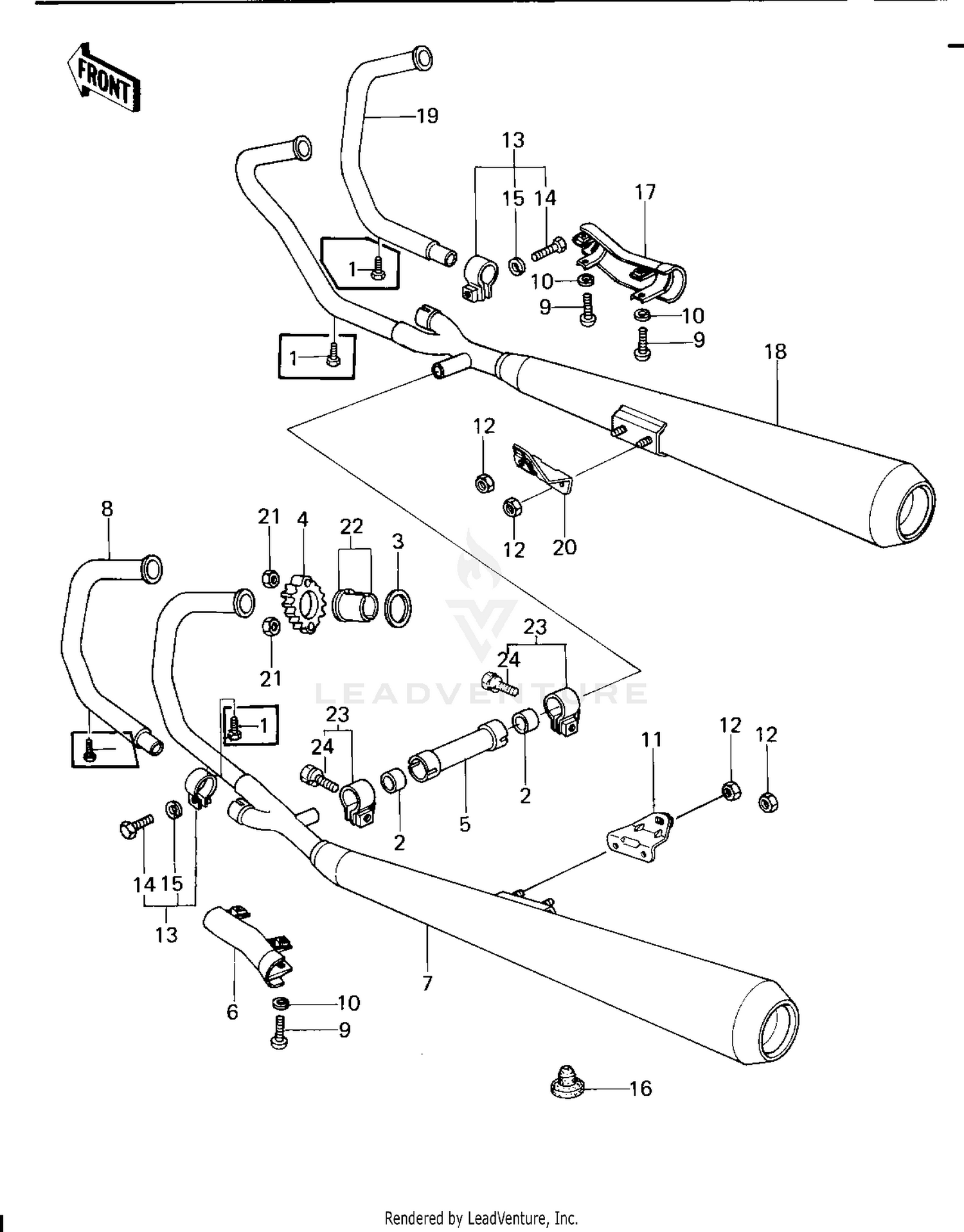

| Ref | Part Number | Description |
|---|
| 1 |
110R0610 |
BOLT (6X10) Price: $3.44 |
| 2 |
11060-1051 |
GASKET,MUFFLER CONNEC Price: $23.41 |
| 3 |
11009-1866 |
GASKET,EXHAUST PIPE HOLDER Price: $8.25 |
| 4 |
18069-1006 |
HOLDER,EXHAUST PIPE Price: $27.28 |
| 5 |
32032-1671 |
PIPE,MUFFLER CONNECT1 Price: $20.80 |
| 6 |
14025-1029 |
COVER,MUFFLER,L.H. Price: $43.17 |
| 7 |
18001-1035 |
MUFFLER ASSY,L.H Price: $319.73 |
| 8 |
18049-1036 |
PIPE,EXHAUST,#2 Price: $101.04 |
| 9 |
220AA0640 |
SCREW-PAN HEAD,6X40 This part replaces 220B0640. Price: $0.61 |
| 10 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 11 |
32069-1041 |
BRACKET,MUFFLER,L.H. Price: $24.57 |
| 12 |
92017-013 |
NUT,LOCK,8MM Price: $10.35 |
| 13 |
92037-1224 |
CLAMP,EXHAUST PIPE Price: $12.41 |
| 14 |
115BA0830 |
BOLT-SMALL-USET,8X30 This part replaces 115G0830. Price: $6.81 |
| 15 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 16 |
92075-1002 |
DAMPER Price: $6.22 |
| 17 |
14025-1030 |
COVER,MUFFLER,R.H. Price: $24.91 |
| 18 |
18001-1025 |
MUFFLER,R.H. Price: $742.34 |
| 19 |
18049-1038 |
PIPE,EXHAUST,#4 Price: $109.42 |
| 20 |
32069-1042 |
BRACKET,MUFFLER,R.H. Price: $21.44 |
| 21 |
92017-014 |
NUT,LOCK 6MM Price: $7.51 |
| 22 |
92027-264 |
COLLAR,EXHAUST PIPE Price: $4.73 |
| 23 |
92037-1223 |
CLAMP,PIPE,35MM Price: $16.77 |
