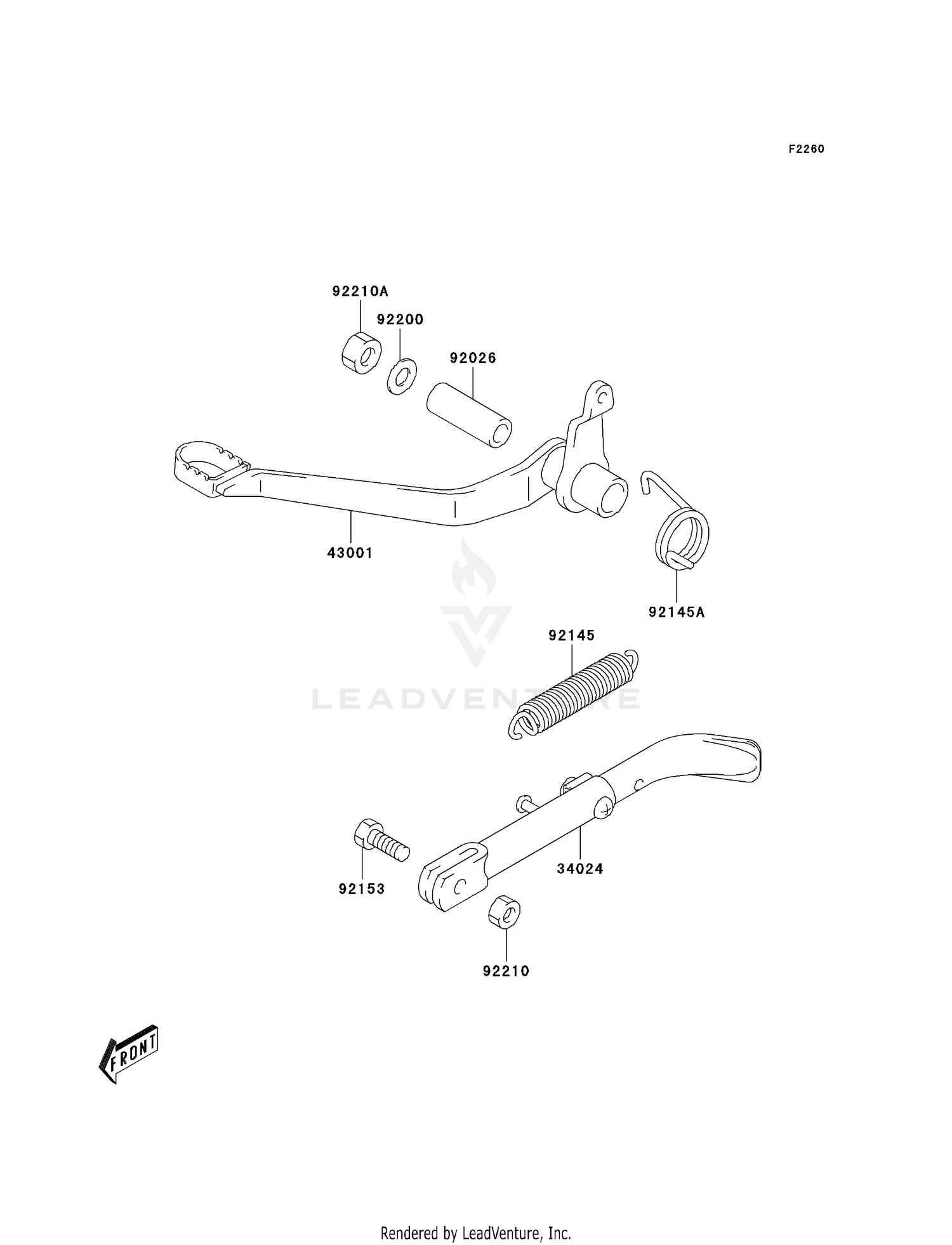

BRAKE PEDAL
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 34024 | 34024-S005-503 | STAND-SIDE,BLACK Price: $17.12 |
| 43001 | 43001-S005 | LEVER-BRAKE Price: $22.27 |
| 92026 | 92026-S109 | SPACER,BRAKE PEDAL Price: $4.54 |
| 92145 | 92145-S119 | SPRING Price: $3.64 |
| 92145A | 92145-S120 | SPRING,BRAKE PEDAL RE Price: $4.54 |
| 92153 | 92153-S318 | BOLT,8X22 Price: $4.20 |
| 92200 | 92200-S284 | WASHER,10.5X22X1.6 This part replaces 92200-S173. Price: $2.40 |
| 92210 | 92210-S195 | NUT This part replaces 92210-S051. Price: $1.92 |
