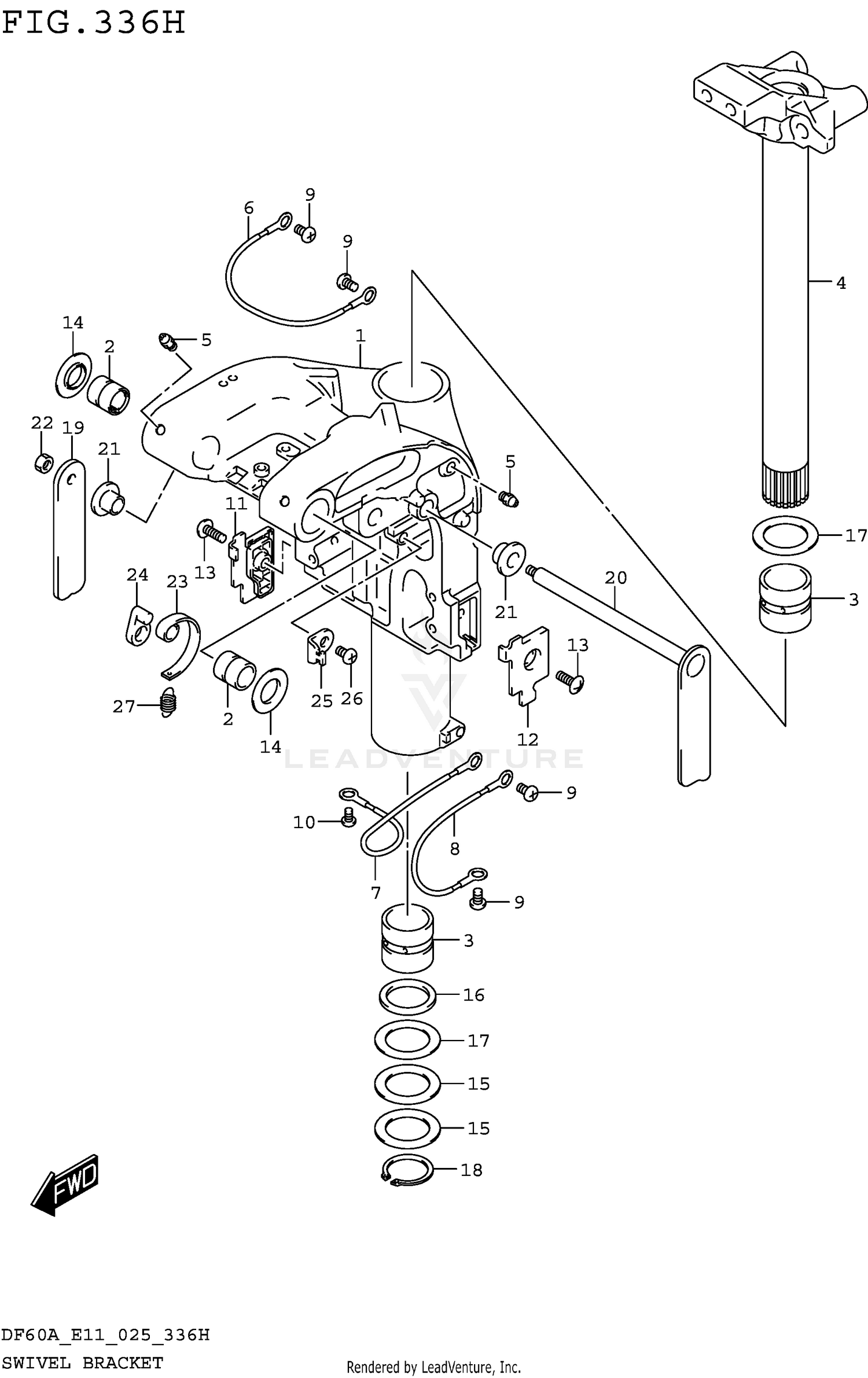

SWIVEL BRACKET (DF60AVTH)
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 43211-88L00 | BUSH SWIVEL BRACKET Price: Call Us |
| 3 | 43711-97E11 | BUSH STEERING Price: Call Us |
| 5 | 22511-99011 | NIPPLE GREASE Price: Call Us |
| 10 | 09125-05050 | SCREW (5X8) Price: Call Us |
| 13 | 09125-06067 | SCREW (6X16) Price: Call Us |
| 14 | 43114-88L00 | WASHER SWIVEL TO CLAMP BRKT Price: Call Us |
| 15 | 09160-39003 | WASHER (39.5X58X0.3) Price: Call Us |
| 16 | 09282-39001 | OIL SEAL (39X51X5) Price: Call Us |
| 17 | 09160-39002 | WASHER (39.5X58X1) Price: Call Us |
| 18 | 09380-38003 | CIRCLIP Price: Call Us |
| 21 | 41224-88L00 | BUSH TILT LOCK LEVER Price: Call Us |
| 23 | 41231-88L01 | LINK TILT LOCK LEVER Price: Call Us |
| 24 | 41234-88L00 | ARM TILT LOCK LINK Price: Call Us |
| 25 | 45731-96312 | BRACKET SPRING Price: Call Us |
