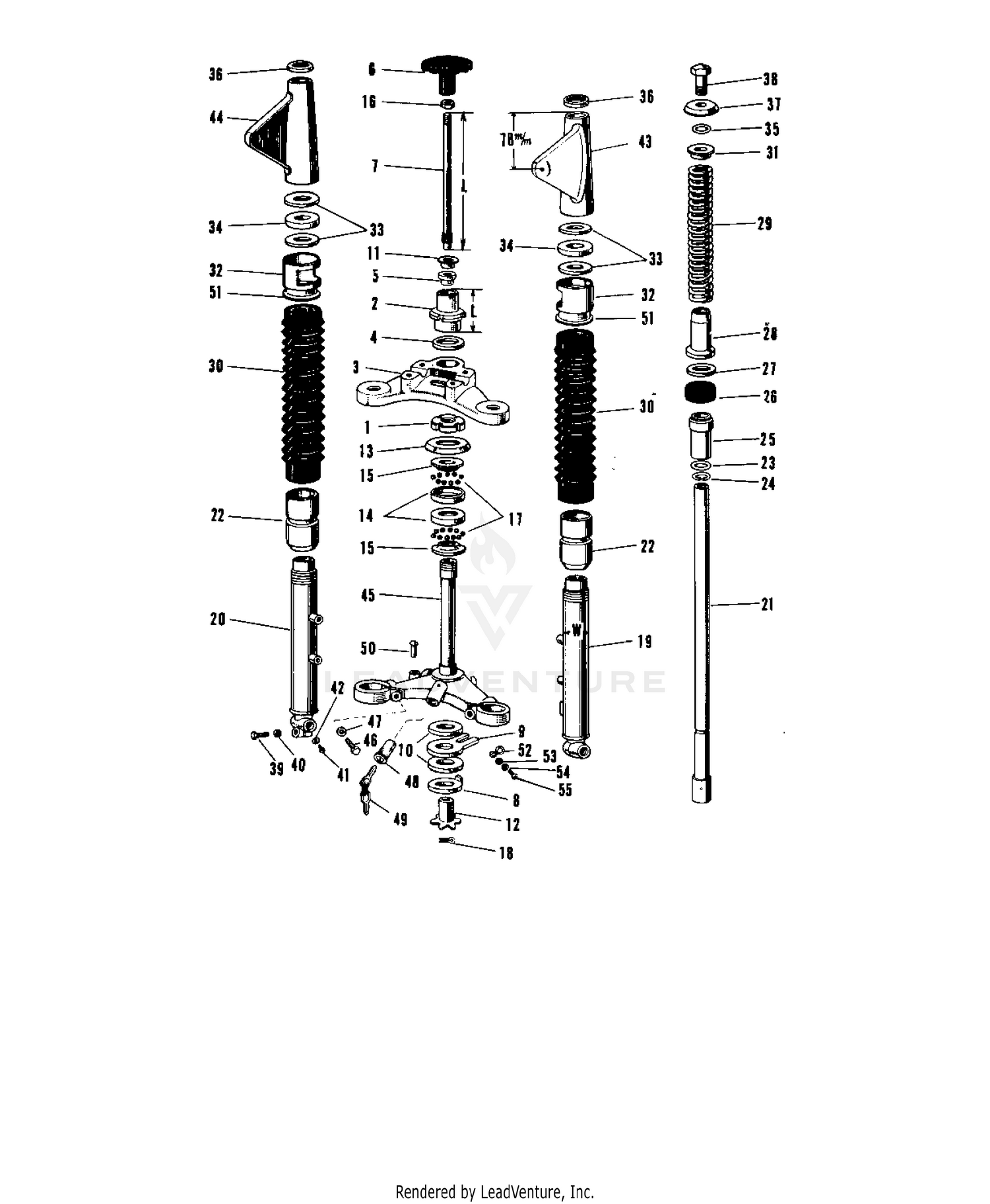

| Ref | Part Number | Description |
|---|
| 1 |
92090-007 |
NUT,30MM Price: $11.71 |
| 3 |
44039-015 |
HEAD STEERING STEM Price: $134.55 |
| 4 |
46100-001 |
WASHER STEERING STEM Price: $4.15 |
| 5 |
46103-001 |
BUSH STRNG DAMPER ROD Price: $3.21 |
| 6 |
46101-001 |
KNOB STEERING DAMPER Price: $7.52 |
| 8 |
46106-001 |
DISC STTERING DAMPER Price: $5.81 |
| 9 |
46105-001 |
STOPPER STEERING DAMP Price: $3.67 |
| 10 |
46104-001 |
DISC STRNG DAMP FRCTN Price: $4.84 |
| 11 |
46108-001 |
WASHER STRNG DAMP NUT Price: $2.30 |
| 12 |
46123-001 |
SPRING FRICTION DISC Price: $7.32 |
| 13 |
46098-006 |
CAP STEERING STEM Price: $3.67 |
| 14 |
92048-0036 |
RACE,STEERING STEM BEARING This part replaces 92048-006. Price: $11.61 |
| 15 |
92047-006 |
CONE STRNG STEM BERNG Price: $12.67 |
| 16 |
92016-001 |
NUT STEERING DAMP LCK Price: $1.52 |
| 17 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 18 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 21 |
44013-015 |
TUBE FORK INNER Price: $112.88 |
| 22 |
44007-010 |
NUT FORK OUTER TUBE Price: $30.61 |
| 24 |
481J2800 |
CIRCLIP-TYPE-C,28MM Price: $1.50 |
| 25 |
44015-006 |
GUIDE FORK INNER TUBE Price: $6.37 |
| 26 |
44009-005 |
OIL SEAL FORK Price: $9.44 |
| 27 |
44043-020 |
WASHER Price: $2.98 |
| 28 |
44010-008 |
DUST SHIELD FORK Price: $5.81 |
| 29 |
44026-013 |
SPRING FORK Price: $15.95 |
| 30 |
44027-006 |
COVER FORK DUST Price: $13.60 |
| 31 |
44028-009 |
GUIDE FORK SPRING Price: $2.97 |
| 32 |
44030-005 |
GUIDE FORK COVER Price: $8.38 |
| 33 |
44043-021 |
WASHER FORK COVER Price: $5.55 |
| 34 |
44045-019 |
GASKET FORK COVER Price: $1.69 |
| 36 |
44032-001 |
CAP FORK COVER Price: $2.48 |
| 37 |
44043-029 |
WASHER FORK BOLT Price: $2.31 |
| 38 |
44041-011 |
BOLT FORK FITTING Price: $7.09 |
| 39 |
115BA0830 |
BOLT-SMALL-USET,8X30 This part replaces 115G0830. Price: $6.81 |
| 40 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 41 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 42 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 45 |
44037-015 |
STEM STEERING Price: $139.13 |
| 46 |
44041-010 |
BOLT PINCH Price: $4.59 |
| 47 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 50 |
92099-001 |
SCREW RIVET Price: $3.89 |
| 51 |
44035-001 |
HOLDER DUST COVER Price: $2.98 |
| 52 |
92037-026 |
CLAMP CABLE Price: $1.15 |
| 53 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 54 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
