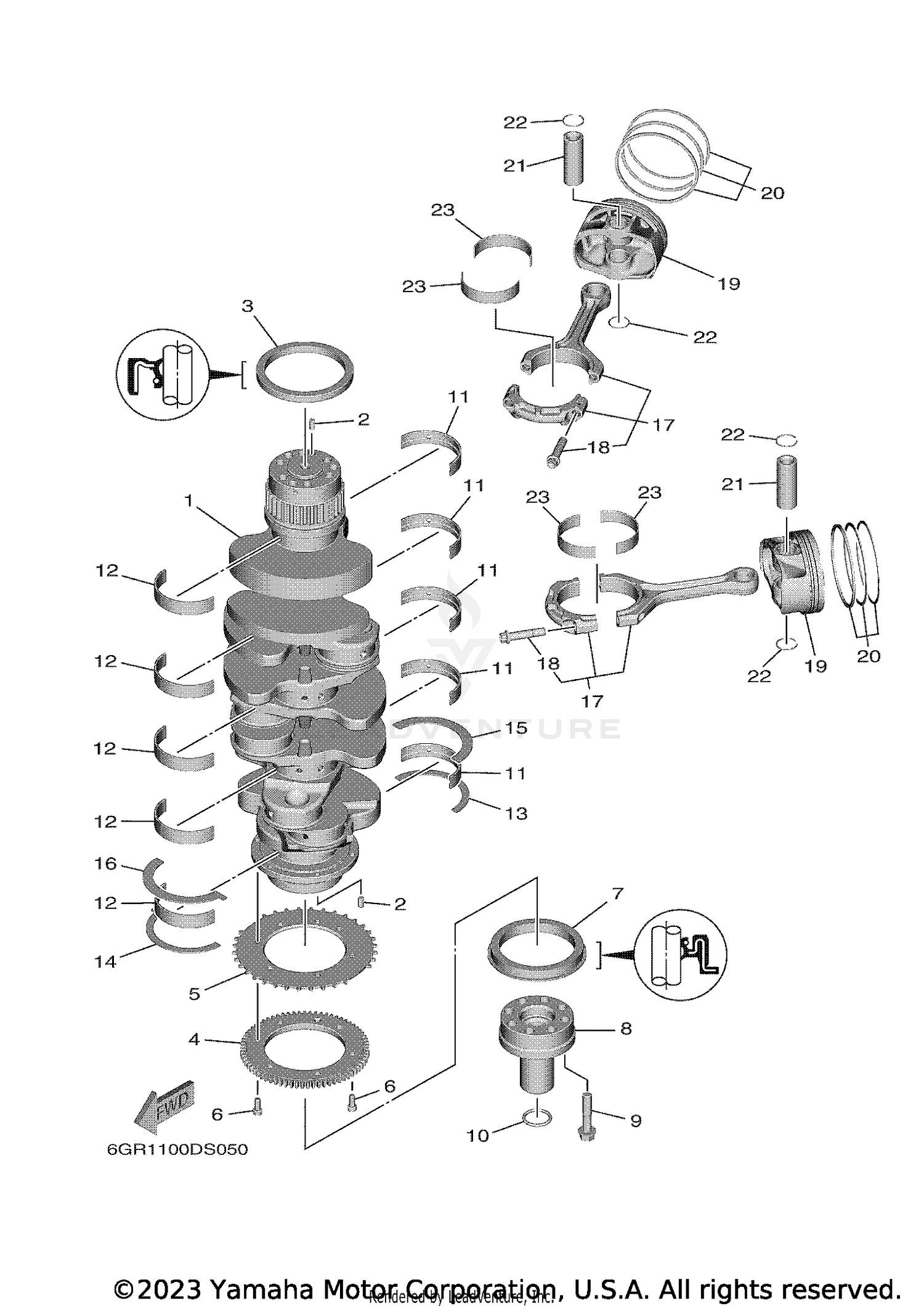

| Ref | Part Number | Description |
|---|
| 1 |
6GR-11411-01-00 |
CRANKSHAFT Price: $4,357.05 |
| 2 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 3 |
93102-90004-00 |
OIL SEAL Price: $39.40 |
| 4 |
6GR-13188-00-00 |
GEAR, DRIVE Price: $313.75 |
| 5 |
6GR-81673-00-00 |
ROTOR Price: $43.05 |
| 6 |
91317-06014-00 |
BOLT Price: $10.49 |
| 7 |
93102-85010-00 |
OIL SEAL Price: $62.40 |
| 8 |
6GR-12199-00-00 |
FLANGE Price: $290.30 |
| 9 |
90105-10446-00 |
BOLT, FLANGE Price: $3.95 |
| 10 |
93210-260A5-00 |
O-RING(M70) Price: $4.50 |
| 13 |
6CB-11426-03-00 |
BEARING, THRUST 1 Price: $19.65 |
| 14 |
6CB-11427-03-00 |
BEARING, THRUST 2 Price: $19.65 |
| 15 |
6GR-11426-00-00 |
BEARING, THRUST 1 Price: $25.15 |
| 16 |
6GR-11427-00-00 |
BEARING, THRUST 2 Price: $23.45 |
| 17 |
6GR-W1165-10-00 |
CONNECTING ROD ASSY Price: $245.40 |
| 18 |
63P-11654-10-00 |
BOLT, CONNECTING ROD Price: $7.15 |
| 19 |
6KN-11631-00-00 |
PISTON (STD) Price: $258.75 |
| 20 |
6GR-11603-00-00 |
PISTON RING SET (STD Price: $56.60 |
| 21 |
6GR-11633-00-00 |
PIN, PISTON Price: $25.75 |
| 22 |
6GR-11634-00-00 |
CLIP, PISTON PIN Price: $1.55 |
