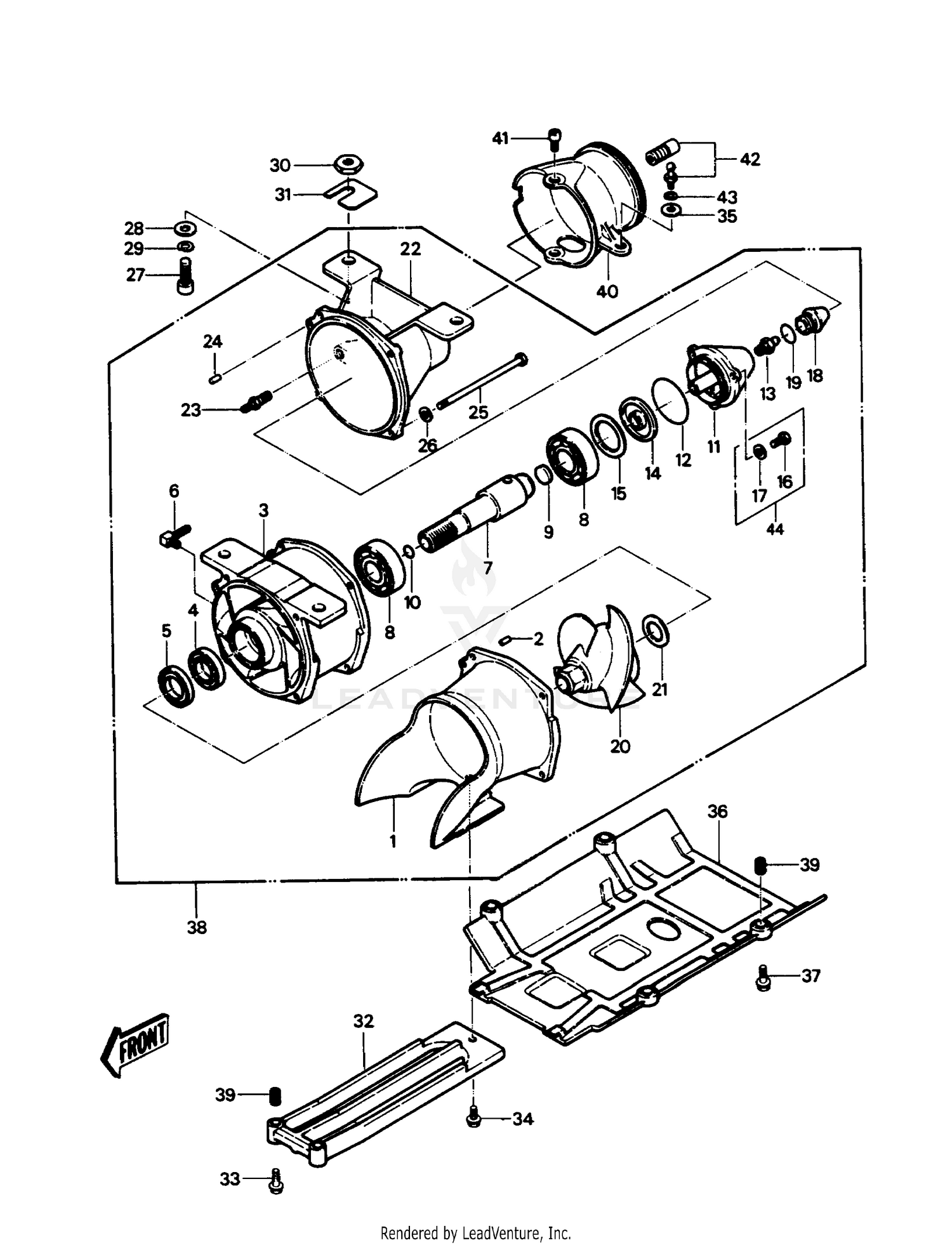

| Ref | Part Number | Description |
|---|
| 1 |
59336-3702 |
CASE-PUMP Price: $543.04 |
| 2 |
551R0612 |
PIN-DOWEL Price: $4.69 |
| 3 |
59496-3002 |
VANE-GUIDE Price: $566.26 |
| 4 |
92049-3010 |
SEAL-OIL Price: $21.47 |
| 5 |
92049-3011 |
SEAL-OIL Price: $21.47 |
| 6 |
52014-3708 |
ELBOW This part replaces 52014-3002. Price: $34.82 |
| 7 |
13107-3007 |
SHAFT,IMPELLER Price: $324.52 |
| 8 |
92045-0110 |
BEARING-BALL,6206-9C3 This part replaces 601B6206. Price: $25.69 |
| 9 |
92066-3013 |
PLUG,SEAL CAP Price: $6.62 |
| 10 |
92055-3019 |
RING-O,16.7MM Price: $8.25 |
| 11 |
11012-3009 |
CAP,JET PUMP Price: $77.30 |
| 12 |
92055-3018 |
RING-O,59.6X2.4 Price: $6.22 |
| 13 |
92005-501 |
NIPPLE,GREASE Price: $7.58 |
| 14 |
92066-3014 |
PLUG Price: $8.73 |
| 15 |
92025-502 |
SHIM 0.15T Price: $2.02 |
| 15A |
92025-503 |
SHIM 0.3T Price: $2.33 |
| 16 |
110R0620 |
BOLT 6X20 Price: $5.31 |
| 17 |
411S0600 |
WASHER-PLAIN,6MM Price: $2.06 |
| 18 |
11012-3010 |
CAP-GREASE FITTING Price: $14.11 |
| 19 |
670B2020 |
O RING,20MM Price: $1.22 |
| 20A |
59256-3704 |
IMPELLER Price: $356.81 |
| 21 |
92025-3022 |
SHIM,24.5X38X1.0 Price: $5.59 |
| 21A |
92025-3023 |
SHIM,24.5X38X2.0 Price: $7.89 |
| 21B |
92025-3025 |
SHIM,24.5X38X1.5 Price: $7.65 |
| 22 |
59136-3713 |
NOZZLE-PUMP This part replaces 59136-3002. Price: $224.18 |
| 23 |
92005-3712 |
FITTING,HOSE This part replaces 92005-3001. Price: $10.88 |
| 24 |
551R0612 |
PIN-DOWEL Price: $4.69 |
| 25 |
110R06125 |
BOLT,6X125 Price: $12.31 |
| 26 |
411S0600 |
WASHER-PLAIN,6MM Price: $2.06 |
| 27 |
120R1025 |
BOLT-SOCKET This part replaces 92003-529. Price: $9.17 |
| 28 |
411S1000 |
WASHER-PLAIN,10MM Price: $2.67 |
| 29 |
461S1000 |
WASHER-SPRING,10MM Price: $1.03 |
| 30 |
92015-3005 |
NUT,10M/M Price: $21.16 |
| 31 |
92025-3701 |
SHIM,T=0.3 Price: $1.70 |
| 31A |
92025-3702 |
SHIM.T=0.5 Price: $3.20 |
| 31B |
92025-3703 |
SHIM,T=1.0 Price: $5.17 |
| 31C |
92025-3704 |
SHIM,T=1.5MM Price: $6.65 |
| 32 |
59366-3001 |
GRATE Price: $68.21 |
| 33 |
156R0625 |
BOLT-WP,6X25 Price: $4.76 |
| 34 |
92002-3728 |
BOLT,6X16 Price: $4.69 |
| 35 |
92022-567 |
WASHER Price: $2.67 |
| 36 |
59446-3002 |
COVER-JET PUMP Price: $164.32 |
| 37 |
156R0625 |
BOLT-WP,6X25 Price: $4.76 |
| 38 |
59486-3701 |
PUMP-ASSY-JET Price: $2,035.70 |
| 39 |
92015-523 |
NUT-INSERT,6MM Price: $16.00 |
| 40A |
59476-3702 |
NOZZLE-STRG Price: $60.14 |
| 41 |
92001-3701 |
BOLT,SOCKET,6X11 Price: $14.67 |
| 42 |
59266-3707 |
JOINT-BALL This part replaces 59266-3701. Price: $66.16 |
