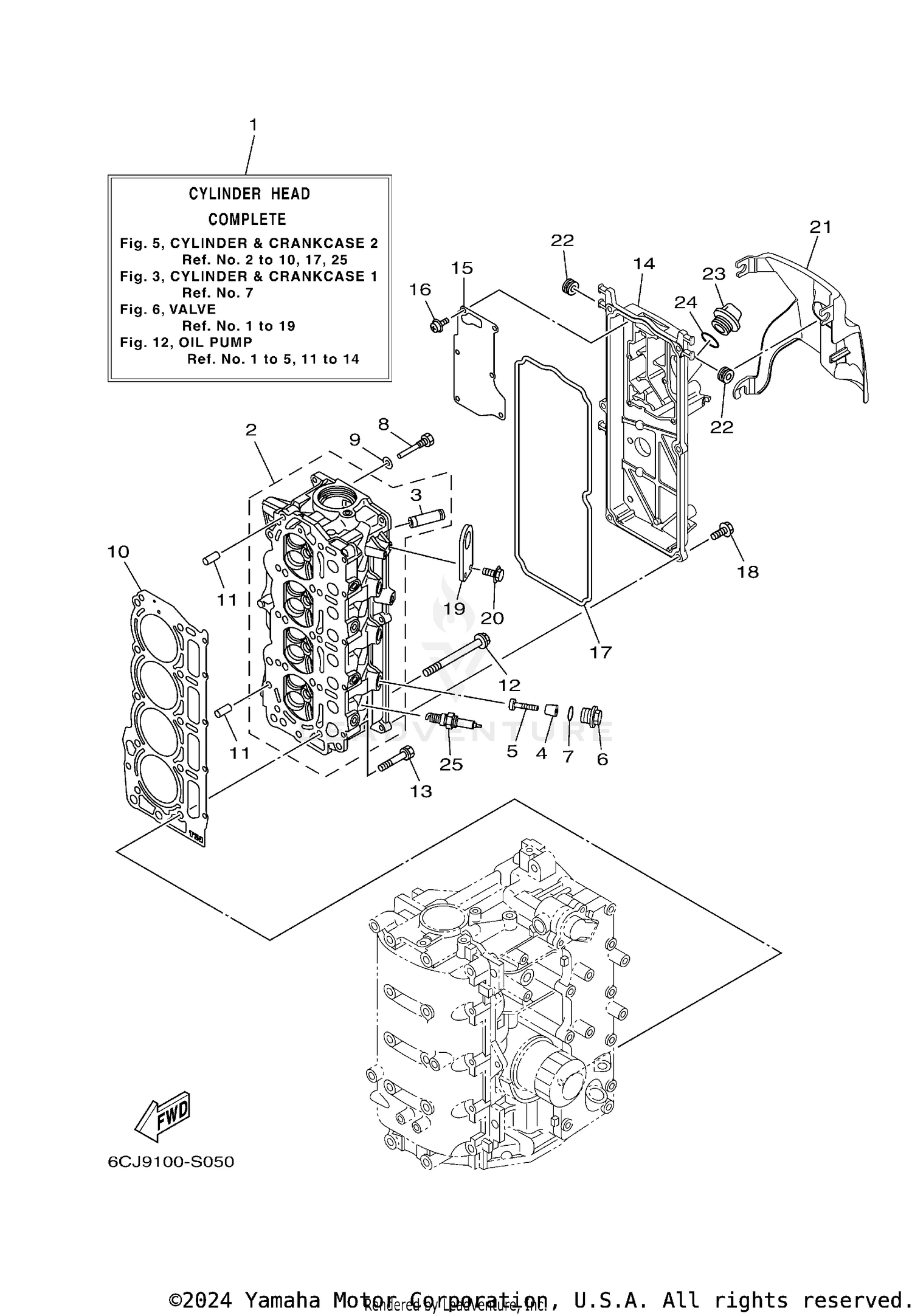

| Ref | Part Number | Description |
|---|
| 1 |
6CJ-W009A-03-9S |
CYLINDER HEAD COMPLETE This part replaces 6CJ-W009A-02-9S. Price: $1,662.50 |
| 2 |
6CJ-11111-10-9S |
HEAD, CYLINDER 1 Price: $1,332.05 |
| 3 |
6AH-11133-10-00 |
GUIDE, VALVE 1 Price: $34.15 |
| 4 |
6G8-11325-00-00 |
ANODE Price: $3.60 |
| 5 |
98980-05025-00 |
SCREW, BIND Price: $1.40 |
| 6 |
6G8-11197-B0-00 |
PLUG, BLIND This part replaces 6G8-11197-A0-00. Price: $15.99 |
| 7 |
93210-13M63-00 |
O-RING Price: $4.75 |
| 8 |
90109-06M65-00 |
BOLT Price: $32.99 |
| 9 |
90430-06014-00 |
GASKET Price: $8.60 |
| 10 |
6CJ-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $67.05 |
| 11 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 12 |
90105-09009-00 |
BOLT, FLANGE Price: $7.70 |
| 13 |
90119-06MA6-00 |
BOLT, WITH WASHER Price: $4.60 |
| 14 |
6CJ-11191-00-9S |
COVER, CYLINDER HEAD 1 Price: $129.05 |
| 15 |
6C5-11168-00-00 |
COVER, BREATHER Price: $6.15 |
| 16 |
97607-04210-00 |
SCREW, WITH WASHER Price: $3.20 |
| 17 |
6CJ-11356-00-00 |
SEAL, CYLINDER 2 Price: $20.25 |
| 18 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 19 |
6CJ-11119-00-00 |
HANGER, ENGINE Price: $14.30 |
| 20 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 21 |
6CJ-11192-00-00 |
COVER, CYLINDER HEAD 2 Price: $23.05 |
| 22 |
90480-12X00-00 |
GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 23 |
6G8-15363-00-00 |
PLUG, OIL Price: $13.50 |
| 24 |
93210-24235-00 |
O-RING This part replaces 93210-24M79-00. Price: $8.49 |
