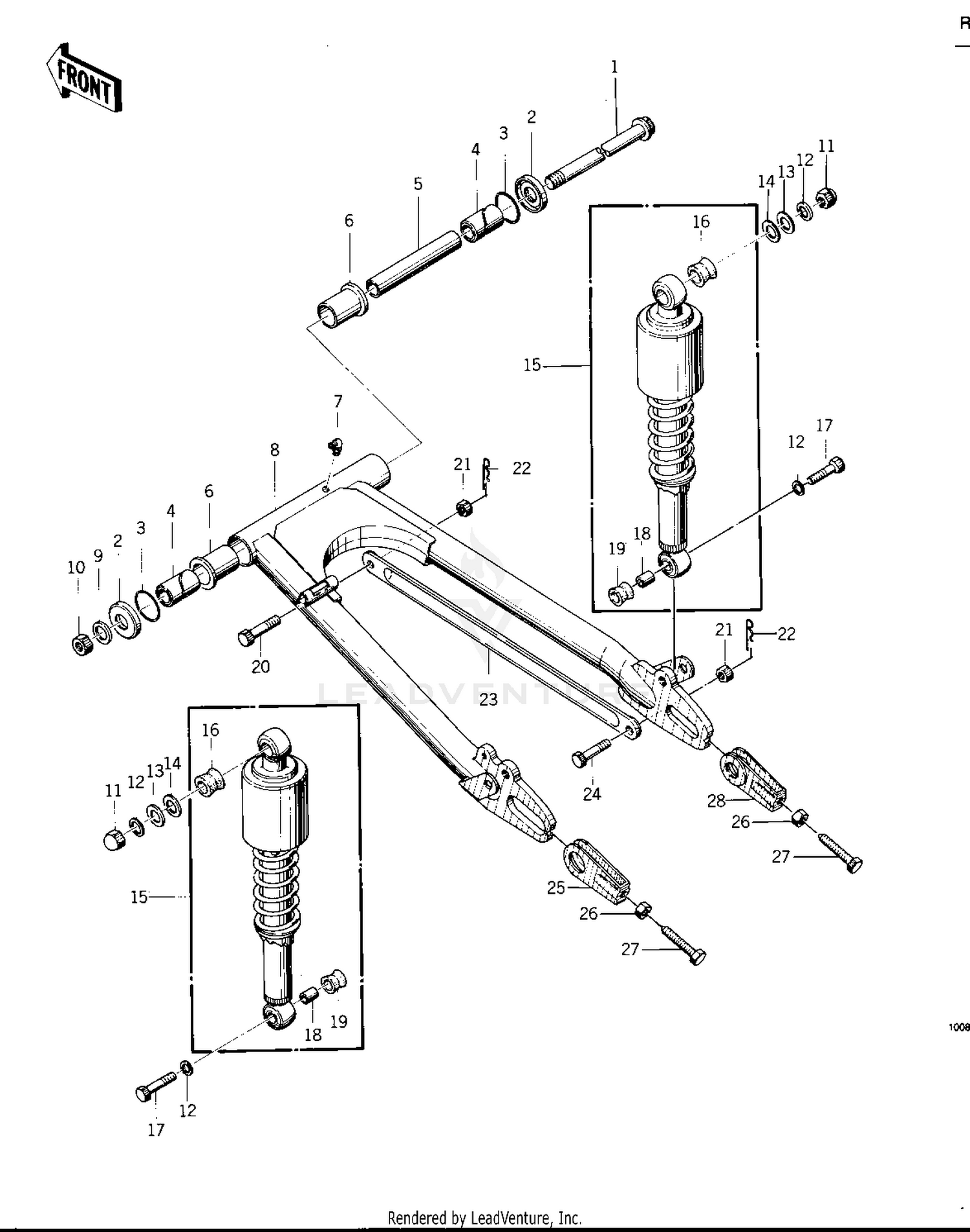

| Ref | Part Number | Description |
|---|
| 1 |
33032-046 |
SHAFT,SWING ARM PIVOT Price: $65.01 |
| 2 |
33035-004 |
CAP-SWING ARM Price: $3.87 |
| 4 |
33034-013 |
SLEEVE-SWING ARM,SHRT Price: $27.85 |
| 5 |
33036-006 |
COLLAR,SWING ARM Price: $4.60 |
| 6 |
33033-009 |
BUSHING-SWING ARM Price: $99.19 |
| 7 |
92005-002 |
GREASE NIPPLE Price: $8.07 |
| 8 |
33001-073 |
ARM,SWING Price: $152.38 |
| 9 |
92022-085 |
WASHER BRAKE PEDAL Price: $3.92 |
| 10 |
92019-011 |
NUT-LOCK,14MM Price: $10.86 |
| 11 |
92020-003 |
NUT,CAP,10MM Price: $6.52 |
| 12 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 15 |
45014-101 |
SHOCK ABSBR RR Price: $254.93 |
| 16 |
45017-015 |
BUSHING,SHCK ABS RUB Price: $10.00 |
| 17 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
| 18 |
45016-008 |
COLLAR,SHOCKABSORBER Price: $9.91 |
| 19 |
45017-012 |
DAMPER,SHOCKABSORBER Price: $14.90 |
| 20 |
92151-1876 |
BOLT,10X29 This part replaces 92003-096. Price: $10.72 |
| 21 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 22 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
| 23 |
43007-016 |
TORQUE LINK REAR BRK Price: $26.49 |
| 24 |
92003-034 |
BOLT HEX HEAD 10MM Price: $13.21 |
| 26 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 27 |
92002-1076 |
BOLT,8X50 This part replaces 92001-1399. Price: $9.48 |
