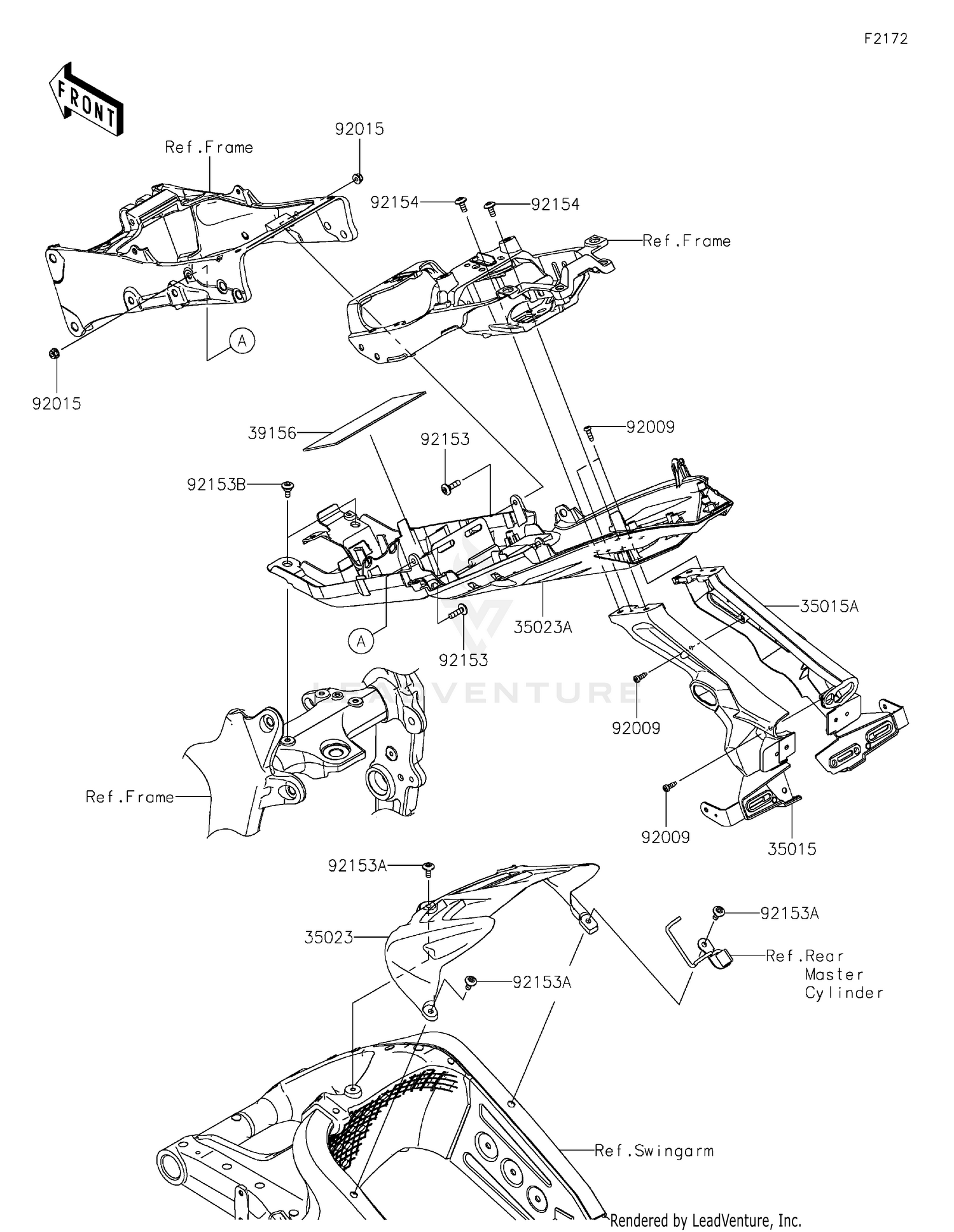

Rear Fender(s)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 35015 | 35015-0040 | FLAP-COMP,LH Price: $33.06 |
| 35015A | 35015-0041 | FLAP-COMP,RH Price: $35.51 |
| 35023 | 35023-0171 | FENDER-REAR,INNER Price: $56.67 |
| 35023A | 35023-0446 | FENDER-REAR Price: $93.87 |
| 39156 | 39156-0530 | PAD Price: $5.48 |
| 92009 | 92009-1984 | SCREW,TAPPING,5X16 Price: $2.58 |
| 92015 | 92015-1603 | NUT,LOCK,FLANGED,6MM Price: $4.69 |
| 92153 | 92153-1356 | BOLT,SOCKET,6X22 Price: $2.15 |
| 92153A | 92153-1675 | BOLT,SOCKET,6X18 Price: $2.15 |
| 92153B | 92153-1956 | BOLT,SOCKET,6MM Price: $3.90 |
