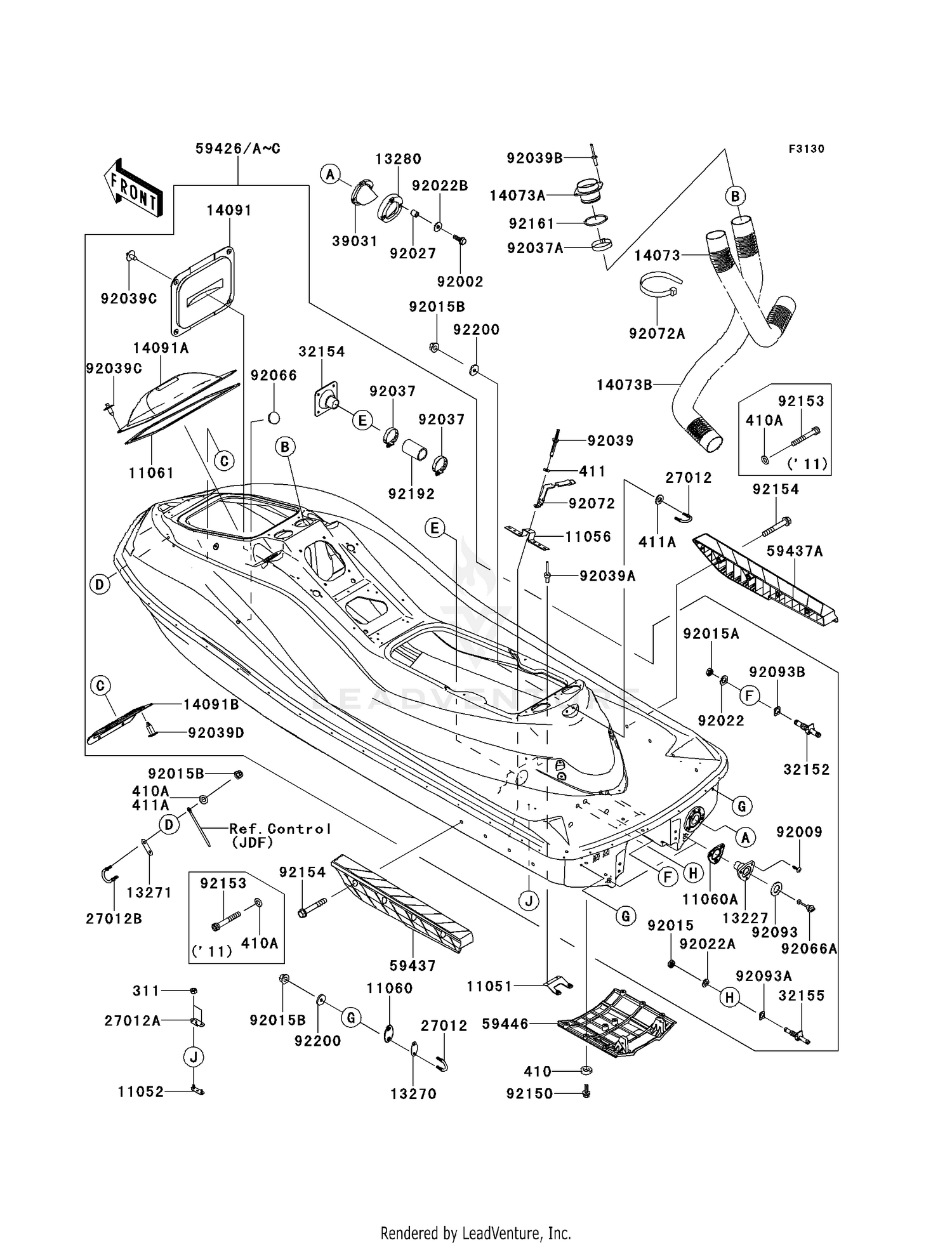

| Ref | Part Number | Description |
|---|
| 311 |
311R0600 |
NUT-HEX,6MM Price: $0.70 |
| 410 |
410S0600 |
WASHER-PLAIN-SMALL,6MM Price: $0.78 |
| 410A |
410S0800 |
WASHER-PLAIN-SMALL,8MM Price: $2.58 |
| 411 |
411S0500 |
WASHER-PLAIN,5MM Price: $0.94 |
| 411A |
411S0800 |
WASHER-PLAIN,8MM Price: $3.09 |
| 11051 |
11051-3802 |
BRACKET,BREATHER-BILGE Price: $11.76 |
| 11052 |
11052-3712 |
BRACKET,RR DUCT Price: $9.05 |
| 11056 |
11056-3722 |
BRACKET,WATER MUFFLER Price: $12.65 |
| 11060 |
11060-3800 |
GASKET,U HOOK,RR Price: $6.20 |
| 11060A |
11060-3801 |
GASKET,DRAIN PLUG Price: $6.61 |
| 11061 |
11061-3754 |
GASKET,BATTERY COVER Price: $37.51 |
| 13227 |
13227-3721-6Z |
HOUSING,DRAIN PLUG,F.BLACK Price: $7.98 |
| 13270 |
13270-3860 |
PLATE Price: $8.38 |
| 13271 |
13271-3724 |
PLATE Price: $4.31 |
| 13280 |
13280-3718 |
HOLDER,EXHAUST VALVE Price: $27.61 |
| 14073 |
14073-0878 |
DUCT,L=800 This part replaces 14073-3804. Price: $22.96 |
| 14073A |
14073-3805 |
DUCT Price: $6.67 |
| 14073B |
14073-0876 |
DUCT,L=1000 This part replaces 14073-3836. Price: $28.77 |
| 14091 |
14091-3786 |
COVER,ECU Price: $15.89 |
| 14091A |
14091-3809 |
COVER,BATTERY Price: $26.37 |
| 14091B |
14091-3819 |
COVER,STORAGE CASE Price: $10.58 |
| 27012 |
27012-3797 |
HOOK Price: $32.29 |
| 27012A |
27012-3816 |
HOOK Price: $9.19 |
| 27012B |
27012-3821 |
HOOK Price: $27.27 |
| 32152 |
32152-3749 |
PIPE Price: $7.09 |
| 32154 |
32154-3714 |
PIPE,DRIVE SHAFT Price: $33.24 |
| 32155 |
32155-3702 |
PIPE,COOLING Price: $7.09 |
| 39031 |
39031-3704 |
CAP-END Price: $40.86 |
| 59437 |
59437-3749-6Z |
STABILIZER,LH,F.BLACK Price: $138.53 |
| 59437A |
59437-3750-6Z |
STABILIZER,RH,F.BLACK Price: $138.53 |
| 59446 |
59446-3760 |
COVER-JET PUMP Price: $168.37 |
| 92002 |
92002-3755 |
BOLT,6X20 Price: $4.69 |
| 92009 |
92009-3849 |
SCREW,TAPPING,4X16 Price: $1.59 |
| 92015 |
92015-1477 |
NUT,16MM Price: $8.10 |
| 92015A |
92015-1589 |
NUT,20MM Price: $7.39 |
| 92015B |
92015-1933 |
NUT,FLANGED,8MM Price: $3.92 |
| 92022 |
92022-1116 |
WASHER,20.3X36X2.3 Price: $8.58 |
| 92022A |
92022-1903 |
WASHER,17.3X30X2.3 Price: $6.40 |
| 92022B |
92022-567 |
WASHER Price: $2.67 |
| 92027 |
92027-3705 |
COLLAR,6.2X10X10 Price: $8.86 |
| 92037 |
92037-3009 |
CLAMP Price: $3.70 |
| 92037A |
92037-3738 |
CLAMP Price: $6.89 |
| 92039 |
92039-0808 |
RIVET This part replaces 92039-3741. Price: $1.63 |
| 92039A |
92039-3755 |
RIVET Price: $6.57 |
| 92039B |
92039-3775 |
RIVET Price: $1.70 |
| 92039C |
92039-3785 |
RIVET Price: $4.65 |
| 92039D |
92039-3788 |
RIVET Price: $3.39 |
| 92066 |
92066-1306 |
PLUG Price: $5.46 |
| 92066A |
92066-3783-6Z |
PLUG,RR,DRAIN,F.BLACK Price: $17.50 |
| 92072 |
92072-3814 |
BAND,314X18 Price: $17.91 |
| 92072A |
92072-3884 |
BAND,L=608.22 Price: $3.35 |
| 92093 |
92093-3720 |
SEAL Price: $3.62 |
| 92093A |
92093-3783 |
SEAL Price: $3.87 |
| 92093B |
92093-3784 |
SEAL Price: $3.89 |
| 92150 |
92150-3775 |
BOLT,SOCKET,6X18 Price: $4.69 |
| 92154 |
92154-1123 |
BOLT,FLANGED,8X55 This part replaces 92154-0920. Price: $9.73 |
| 92161 |
92161-3769 |
DAMPER Price: $3.87 |
| 92192 |
92192-3756 |
TUBE,39X51X78 Price: $10.39 |
