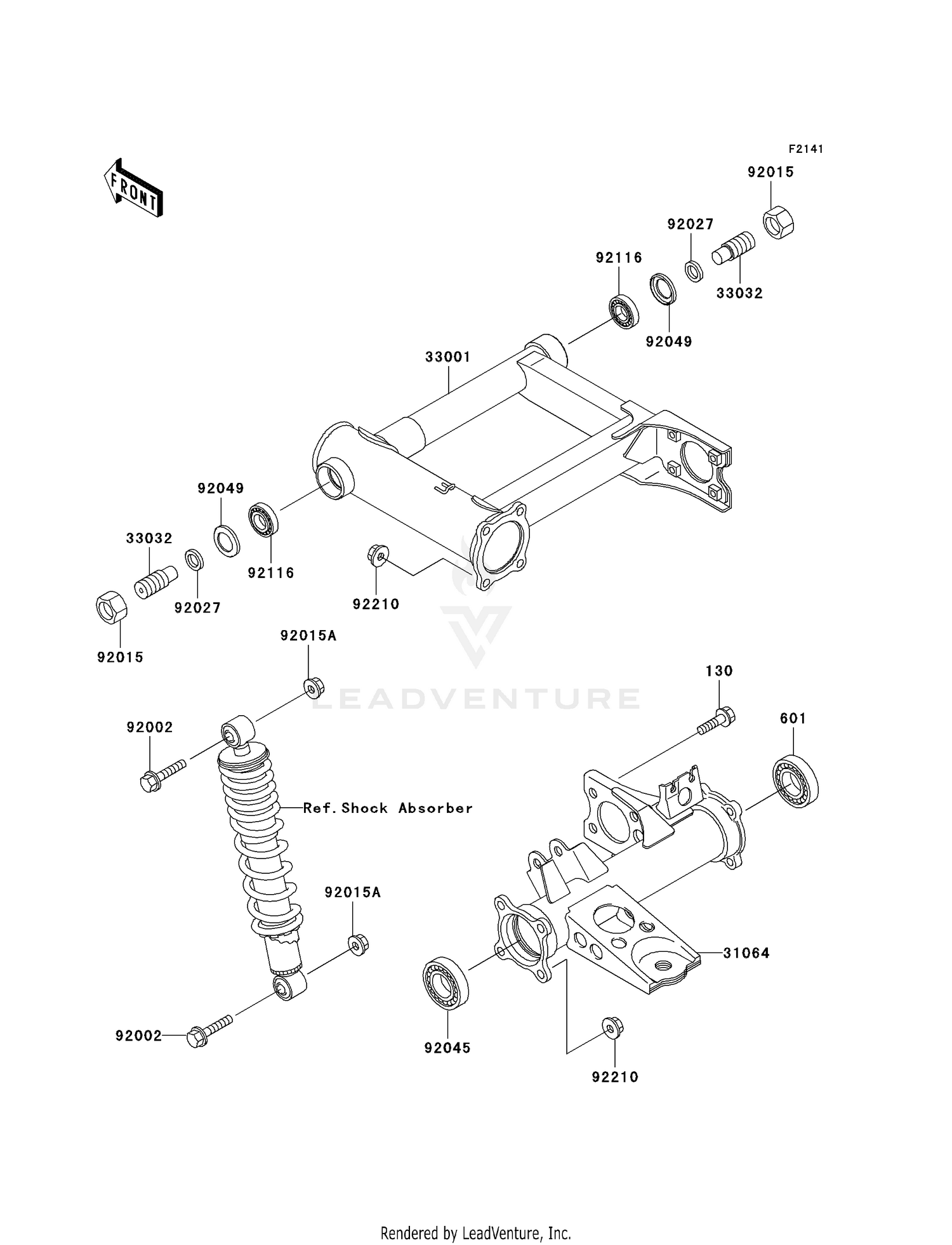

SWINGARM
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130BB1025 | BOLT-FLANGED,10X25 This part replaces 130J1025. Price: $5.25 |
| 601 | 601A6008UU | BEARING Price: $61.39 |
| 31064 | 31064-1212 | PIPE-COMP Price: $138.61 |
| 33001 | 33001-1552 | ARM-COMP-SWING Price: $243.91 |
| 33032 | 33032-1034 | SHAFT-SWING ARM Price: $42.72 |
| 92002 | 92002-1840 | BOLT Price: $9.28 |
| 92015 | 92015-1229 | NUT,22MM Price: $10.28 |
| 92015A | 92015-1617 | NUT,LOCK,12MM Price: $8.98 |
| 92027 | 92027-1394 | COLLAR,17X26X4.5 Price: $8.12 |
| 92045 | 92045-1177 | BEARING-BALL Price: $65.93 |
| 92049 | 92049-1030 | OIL SEAL,26406 Price: $9.73 |
| 92116 | 92116-1001 | BRG,ROLLER,4T30203E1 Price: $38.04 |
