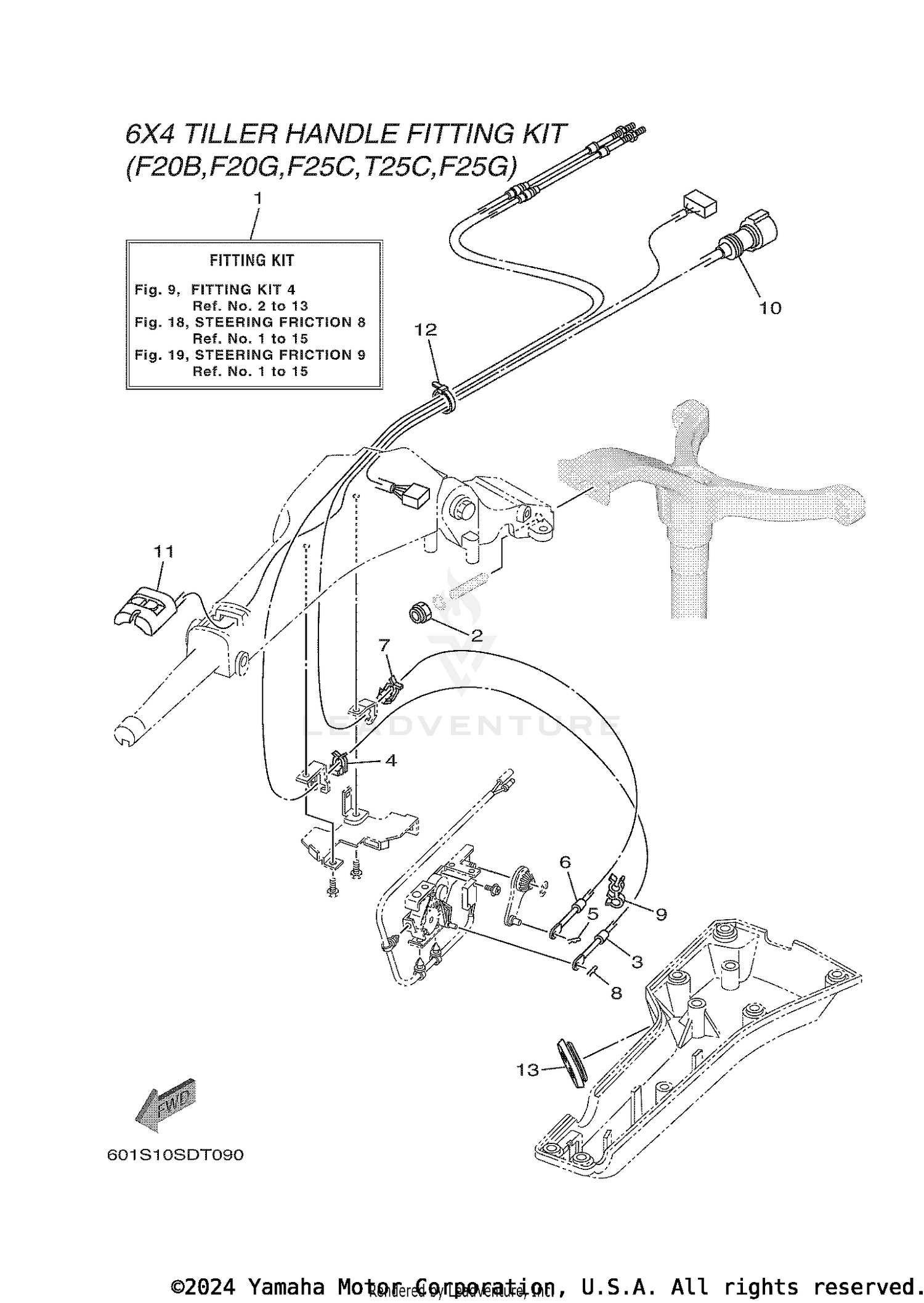

FITTING KIT 4
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 90185-10027-00 | NUT, SELF-LOCKING Price: $2.40 |
| 3 | 63D-48321-11-00 | CABLE Price: $96.10 |
| 4 | 63D-48538-00-00 | CLAMP, CABLE 1 Price: $6.40 |
| 5 | 90468-10005-00 | CLIP Price: $7.15 |
| 6 | 6FM-26301-10-00 | THROTTLE CABLE ASSY Price: $61.70 |
| 7 | 63D-48538-00-00 | CLAMP, CABLE 1 Price: $6.40 |
| 8 | 90468-10005-00 | CLIP Price: $7.15 |
| 9 | 90464-09M42-00 | CLAMP Price: $6.40 |
| 10 | 6X4-82586-11-00 | EXT., WIRE HARNESS (L:950MM) This part replaces 6X4-82586-10-00. Price: $518.15 |
| 11 | 6X4-81860-00-00 | SWITCH ASSY Price: $205.10 |
| 12 | 90465-13M39-00 | CLAMP Price: $5.50 |
