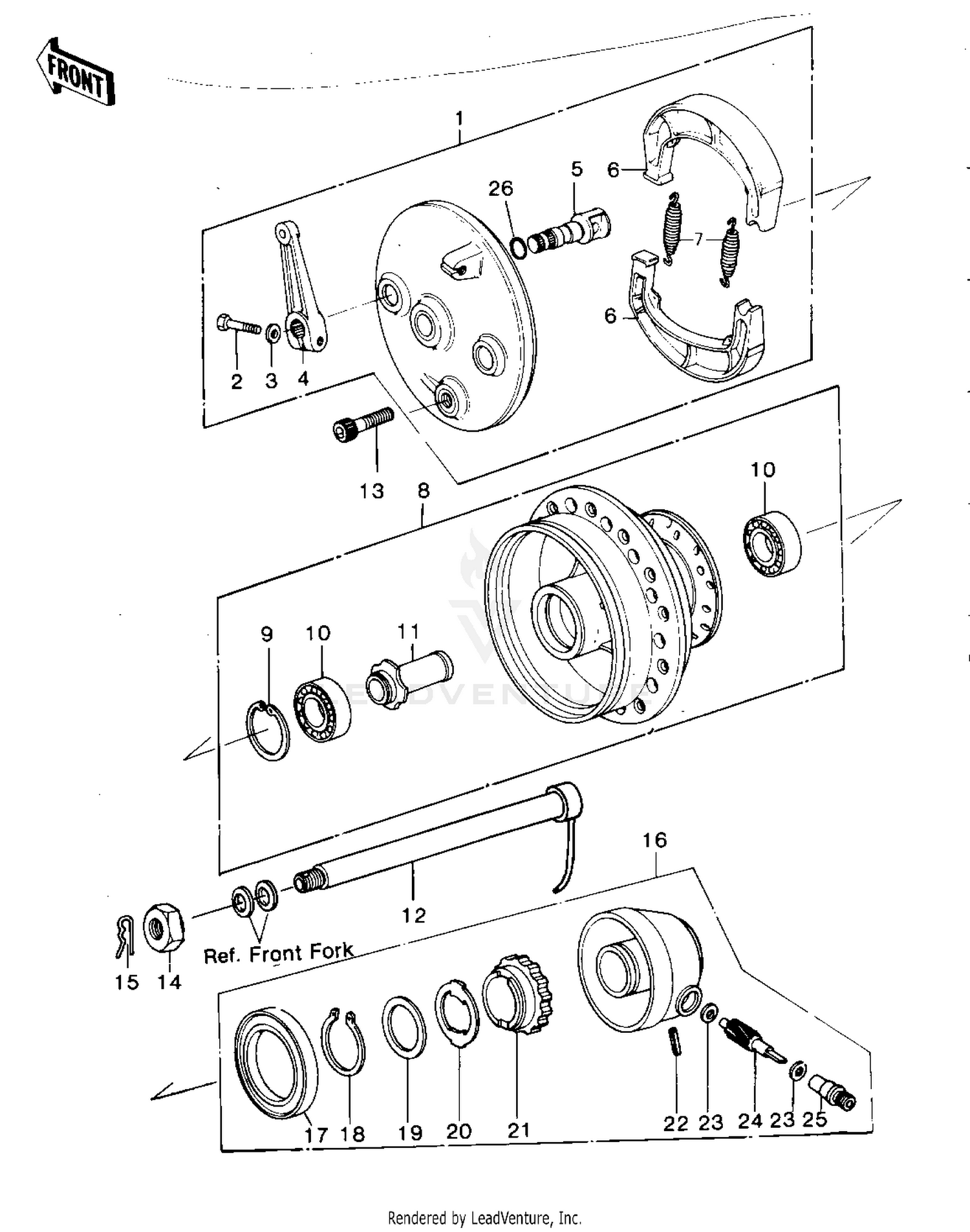

| Ref | Part Number | Description |
|---|
| 1 |
41035-1072 |
PANEL-ASY,FR BRK Price: $307.50 |
| 2 |
112BA0622 |
BOLT-UPSET This part replaces 112G0622. Price: $3.74 |
| 3 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 4 |
41053-1003 |
LEVER,FRONT BRAKE CAM Price: $61.71 |
| 5 |
41050-1002 |
CAM SHAFT,BRAKE Price: $49.44 |
| 6 |
41048-1068 |
SHOE-BRAKE Price: $27.31 |
| 7 |
42020-004 |
SPRING-BRAKE SHOE Price: $8.51 |
| 8 |
41034-4001 |
DRUM-ASSY,FR BRK Price: $260.11 |
| 9 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 10 |
92045-1355 |
BEARING-BALL,6302LU/3 This part replaces 92045-033. Price: $23.10 |
| 11 |
92027-1034 |
COLLAR,FRONT BRAKE Price: $28.77 |
| 12 |
41068-4001 |
AXLE,FRONT Price: $52.53 |
| 13 |
92001-4002 |
BOLT,SOCKET,10X40 Price: $4.87 |
| 14 |
92015-1765 |
NUT,CASTLE,14MM This part replaces 42045-020. Price: $9.91 |
| 15 |
550AA3230 |
PIN-COTTER,3.2X30 This part replaces 550D3230. Price: $2.51 |
| 16 |
41078-1073 |
CASE-ASSY-METER GEAR This part replaces 41078-011. Price: $117.35 |
| 17 |
654A506509 |
OIL SEAL,#50659 Price: $17.29 |
| 18 |
480J2400 |
CIRCLIP-TYPE-C,24MM Price: $6.32 |
| 19 |
41065-005 |
WASHER,THRUST Price: $4.15 |
| 20 |
41064-015 |
RECEIVER,SPEEDOMETER Price: $8.58 |
| 22 |
41082-001 |
PIN,SPRING Price: $3.92 |
| 23 |
41063-001 |
WASHER,5.1X9X0.4 Price: $4.69 |
| 25 |
41062-005 |
BUSH,SPEEDMETER CABLE Price: $19.48 |
