| Ref | Part Number | Description |
|---|
| 220 |
220AA0408 |
SCREW-PAN-CROS,4X8 Price: $0.68 |
| 220A |
220AA0414 |
SCREW-PAN-CROS Price: $4.60 |
| 11061 |
11061-0077 |
GASKET Price: $11.66 |
| 13168 |
13168-0051 |
LEVER Price: $23.08 |
| 13271 |
13271-0241 |
PLATE Price: $16.59 |
| 14024 |
14024-1971 |
COVER Price: $55.25 |
| 14091 |
14091-0208 |
COVER Price: $34.08 |
| 14091A |
14091-0209 |
COVER Price: $54.42 |
| 15004 |
15004-0076 |

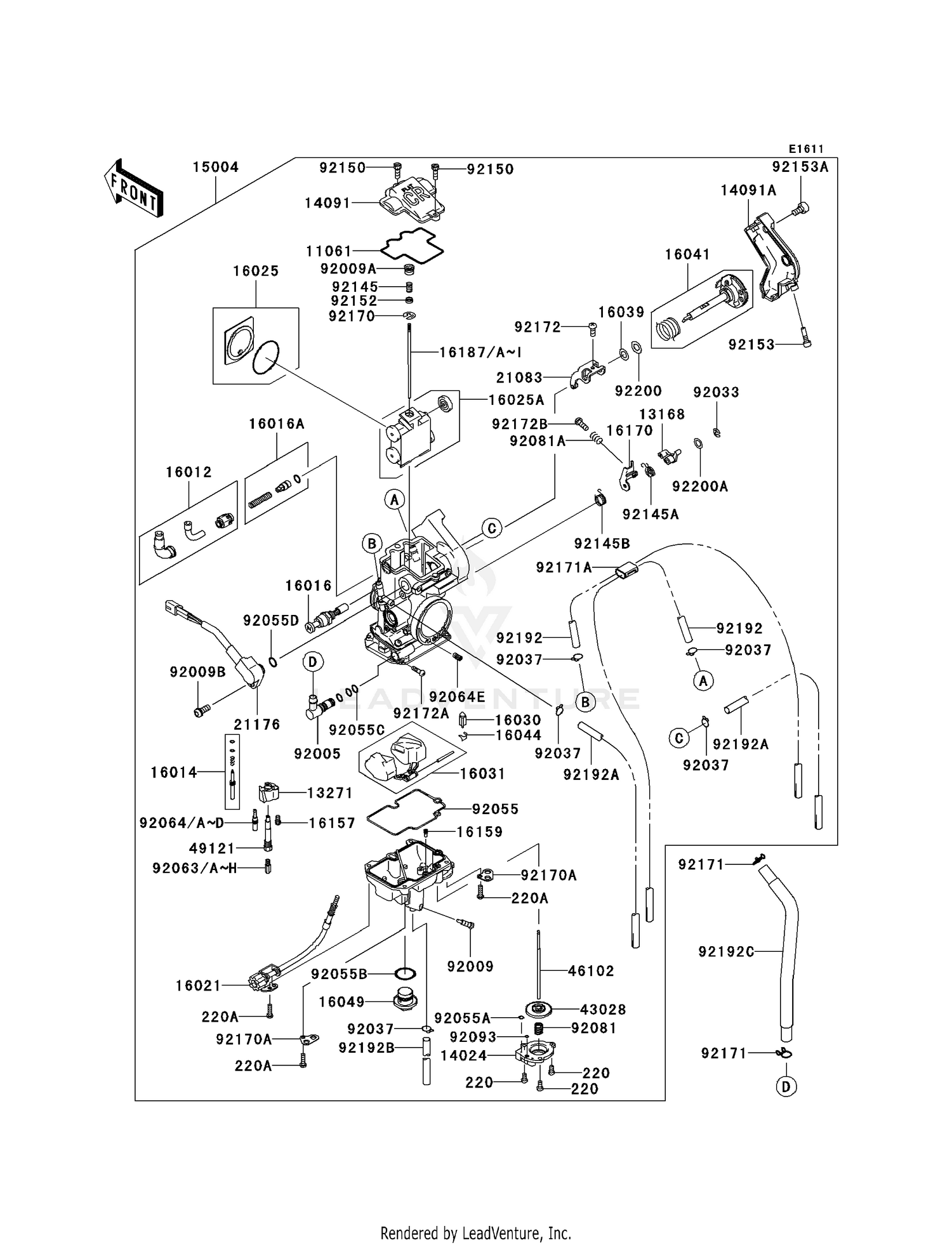

CARBURETOR-ASSY,FCR-3 Price: $1,105.87 |
| 16012 |
16012-0004 |
CAP-STARTER PLUNGER Price: $27.19 |
| 16014 |
16014-0004 |
SCREW-PILOT AIR Price: $17.80 |
| 16016 |
16016-0009 |
PLUNGER Price: $41.61 |
| 16016A |
16016-0017 |
PLUNGER Price: $16.72 |
| 16021 |
16021-0005 |
SCREW-THROTTLE STOP Price: $18.88 |
| 16025 |
16025-0009 |
VALVE-THROTTLE Price: $73.50 |
| 16025A |
16025-0013 |
VALVE-THROTTLE Price: $298.94 |
| 16030 |
16030-1057 |
VALVE-FLOAT Price: $47.13 |
| 16031 |
16031-1100 |
FLOAT Price: $58.03 |
| 16039 |
16039-0230 |
WASHER Price: $2.12 |
| 16041 |
16041-0004 |
SHAFT-CARBURETOR Price: $160.32 |
| 16044 |
16044-007 |
CLAMP,FLOAT VALVE Price: $7.91 |
| 16049 |
16049-1051 |
COVER-MAIN JET Price: $33.28 |
| 16157 |
16157-0001 |
JET-STARTER Price: $24.89 |
| 16159 |
16159-1054 |
JET-POWER Price: $15.66 |
| 16170 |
16170-0003 |
LINK-ASSY Price: $16.44 |
| 16187B |
16187-0240 |
NEEDLE-JET,NHJT Price: $41.24 |
| 21083 |
21083-0035 |
ARM Price: $42.34 |
| 21176 |
21176-0016 |
SENSOR Price: $95.16 |
| 43028 |
43028-0001 |
DIAPHRAGM Price: $22.29 |
| 46102 |
46102-0033 |
ROD Price: $25.16 |
| 49121 |
49121-0001 |
NOZZLE-MAIN Price: $37.58 |
| 92005 |
92005-0016 |
FITTING Price: $24.93 |
| 92009 |
92009-1551 |
SCREW,DRAIN,6X0.75 Price: $9.91 |
| 92009A |
92009-1876 |
SCREW Price: $11.39 |
| 92009B |
92009-1981 |
SCREW,THROTTLE SENSOR Price: $2.41 |
| 92033 |
92033-0018 |
RING-SNAP Price: $2.92 |
| 92037 |
92037-1396 |
CLAMP,TUBE Price: $5.52 |
| 92055 |
92055-0066 |
RING-O Price: $18.29 |
| 92055A |
92055-1004 |
RING-O Price: $4.31 |
| 92055B |
92055-1167 |
RING-O,MAIN JET COVER Price: $9.51 |
| 92055C |
92055-1223 |
RING-O Price: $5.52 |
| 92055D |
92055-1671 |
RING-O Price: $3.73 |
| 92063D |
92063-1378 |
JET-MAIN Price: $17.65 |
| 92064B |
92064-1140 |
JET-PILOT,#40 Price: $17.03 |
| 92064E |
92064-1160 |
JET-PILOT,#100 Price: $14.92 |
| 92081 |
92081-1092 |
SPRING,DIAPHRAGM Price: $11.61 |
| 92081A |
92081-1620 |
SPRING Price: $4.96 |
| 92093 |
92093-1046 |
SEAL,U-RING Price: $6.51 |
| 92145 |
92145-0164 |
SPRING Price: $17.22 |
| 92145A |
92145-0166 |
SPRING Price: $17.22 |
| 92145B |
92145-0167 |
SPRING Price: $17.22 |
| 92150 |
92150-1426 |
BOLT,SOCKET,4X12 Price: $6.22 |
| 92152 |
92152-0141 |
COLLAR Price: $9.51 |
| 92153 |
92153-0638 |
BOLT Price: $6.27 |
| 92153A |
92153-0639 |
BOLT Price: $5.59 |
| 92170 |
92170-1204 |
CLAMP,JET NEEDLE Price: $3.94 |
| 92170A |
92170-1582 |
CLAMP Price: $4.18 |
| 92171 |
92171-0149 |
CLAMP Price: $3.73 |
| 92171A |
92171-0246 |
CLAMP Price: $6.26 |
| 92172 |
92172-0127 |
SCREW Price: $5.59 |
| 92172A |
92172-0128 |
SCREW Price: $5.59 |
| 92172B |
92172-0129 |
SCREW Price: $5.59 |
| 92192 |
92192-0083 |
TUBE Price: $7.60 |
| 92192A |
92192-0084 |
TUBE Price: $7.60 |
| 92192B |
92192-0085 |
TUBE Price: $7.60 |
| 92192C |
92192-0688 |
TUBE,FUEL Price: $21.95 |
| 92200 |
92200-0107 |
WASHER Price: $2.95 |
